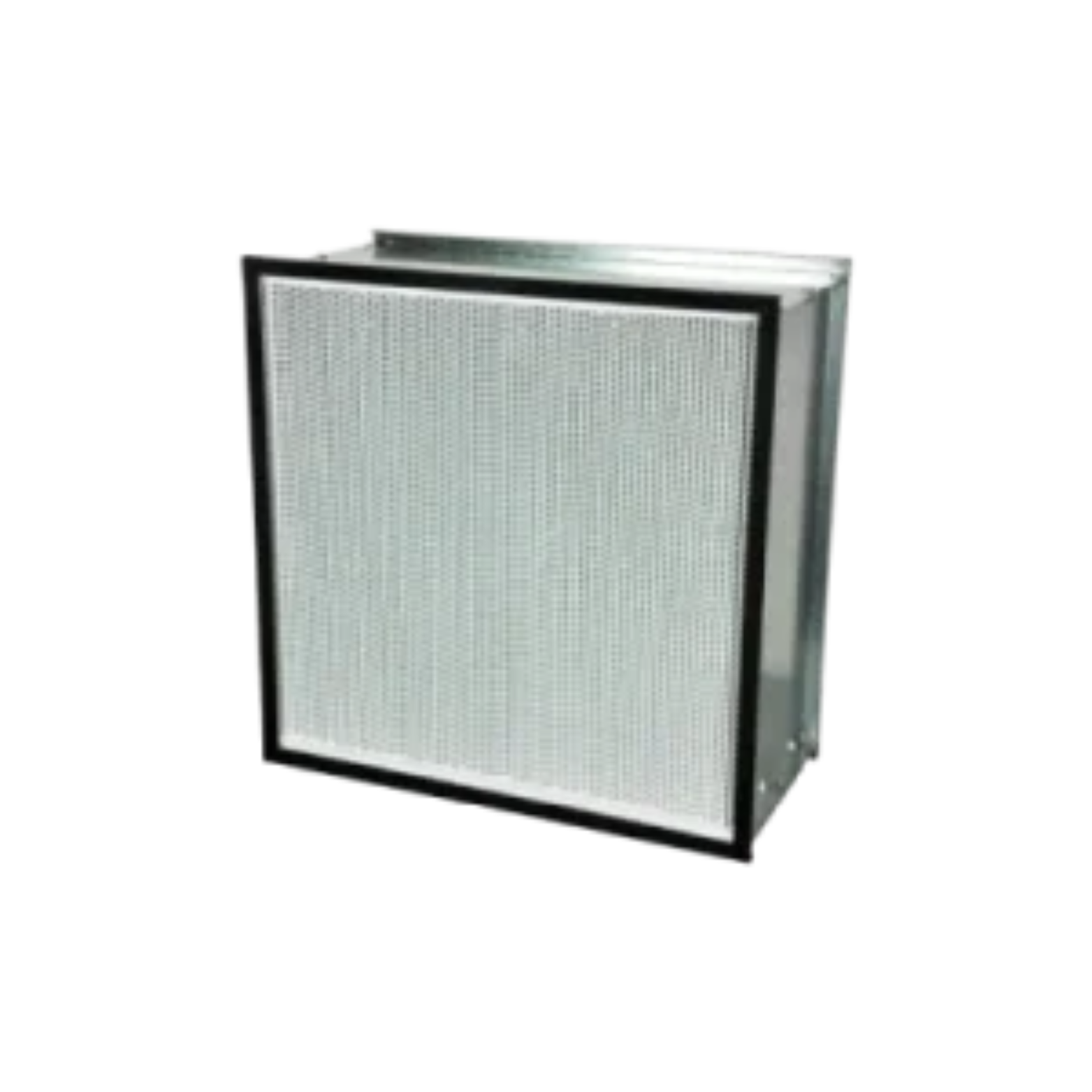

HEPA & ULPA FILTERS: AstroCel I
-
Individually tested for certified performance
-
Available in a variety of cell sides and efficiencies
-
Available in gasket and gel sea
-
High capacity option for higher airflow
Typical applications
-
Automotive
-
Commercial Buildings
-
Data Centers
-
Food and Beverage
Benefits & Features
Performance & Applications
- The AstroCel I filter is available in a variety of efficiencies, including 99.97%, 99.99% and 99.999% on 0.3 micrometer particles, and is also available with laser scanned factory certification.
- AstroCel I HEPA filters are used primarily in cleanrooms and clean zones, which require the very highest levels of contamination control. The filter consists of water-proofed, fire-retardant fiberglass media formed into a series of pleats. Corrugated sheets of aluminum separate the pleats to permit maximum usage at minimum resistance. Gasketing is available on the upstream, downstream, or both faces. Extractor clips are available for gel seal Astrocel I HEPA filters, for Bag In/Bag Out housings.
Energy Saving Design
- The pleat openings and exits of the Astrocel I filter deliver low entrance and exit losses. This, combined with less restriction from separator material and better media utilization, delivers a low pressure drop. The high capacity (HCX) model utilizes tapered separators, which allow a doubling of airflow with only a 40% increase in resistance. The lower operating resistance reduces operating costs and saves energy.
Antimicrobial Treated Media
- Optional antimicrobial traps and concentrates particulate air contaminants to improve Indoor Air Quality (IAQ) while preserving the integrity of the media.
Specifications
|
EN1822 |
H13, H14 |
|
Filter Depth (mm) |
149, 292 |
|
Media Type |
Fibreglass |
|
Frame Material (Standard) |
Galvanised Steel |
|
Frame Material (Optional) |
Aluminum, Stainless Steel Plywood, Particle Board |
|
Separator Style |
Aluminum |
|
Gasket Material (Standard) |
Neoprene |
|
Gasket Material (Optional) |
PU, EPDM, PU Gel |
|
Gasket Position (Standard) |
Downstream |
|
Gasket Position (Optional) |
Upstream, Both Sides |
|
Faceguard |
Optional |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
No |
|
Header Type |
None Header |
|
Recommended Final Resistance |
750 Pa |
|
Max Operating Temperature |
90º C |
|
Air Filtration Certification |
UL 900 |
Product Information
|
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
AstroCel® I (H13) |
|||
|
M566-203-004 |
610 x 305 x 149 |
425 |
250 |
|
M566-203-005 |
610 x 610 x 149 |
850 |
|
|
M566-205-004 |
610 x 305 x 292 |
850 |
|
|
M566-205-005 |
610 x 610 x 292 |
1,700 |
|
|
AstroCel® I (H14) |
|||
|
M563-203-004 |
610 x 305 x 149 |
425 |
250 |
|
M563-203-005 |
610 x 610 x 149 |
850 |
|
|
M563-205-004 |
610 x 305 x 292 |
850 |
|
|
M563-205-005 |
610 x 610 x 292 |
1,700 |
|
|
AstroCel® I HC (H13) |
|||
|
M556-203-004 |
610 x 305 x 149 |
850 |
350 |
|
M556-203-005 |
610 x 610 x 149 |
1,700 |
|
|
M556-205-004 |
610 x 305 x 292 |
1,700 |
|
|
M556-205-005 |
610 x 610 x 292 |
3,400 |
|
|
AstroCel® I HC (H14) |
|||
|
M553-203-004 |
610 x 305 x 149 |
850 |
350 |
|
M553-203-005 |
610 x 610 x 149 |
1,700 |
|
|
M553-205-004 |
610 x 305 x 292 |
1,700 |
|
|
M553-205-005 |
610 x 610 x 292 |
3,400 |
|
