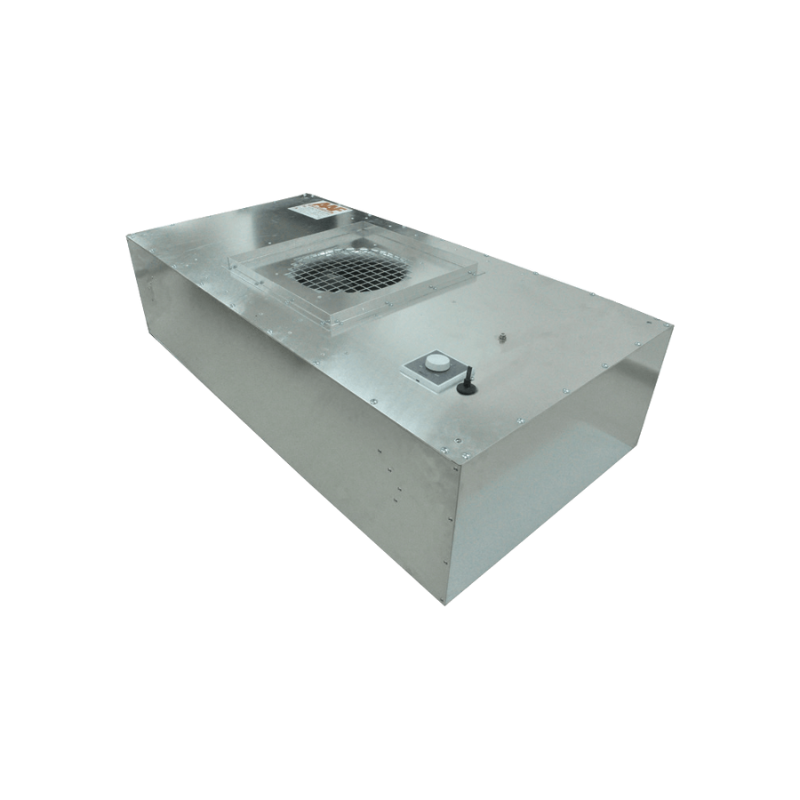

AstroFan FFU – EC
Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
0₫
Giá cũ:
Rẻ hơn
Hoàn Tiền 100%
Trường hợp hàng giá
Được kiểm tra hàng
Mở hộp khi nhận hàng
Đổi trả hàng miễn phí
Trong 30 ngày sau khi nhận- Thông tin sản phẩm
- Liên hệ mua hàng
CLEANROOM MODULE: AstroFan FFU – EC
- Comes with smart electronic control (EC) FFU system (AstroDrive)
- Full interface control, vector scaling
- High speed signal feedback feature
- Energy-efficient EC motor compared to AC alternatives
- Whisper-quiet operation compared to AC alternatives
- Easy installation and set up at the site
- AstroDrive can control up to 62,992 FFU units in one installation
- Alternative software can control up to 10,800 FFU units in one installation
- Good alternative solution for existing EC control FFU
Typical applications
- Food and Beverage
- Healthcare
- Microelectronics
- Pharmaceutical
Benefits & Features
Application
The AAF AstroFan FFU unit is a self-contained ceiling fan filter unit for use in turbulent mixing and laminar air flow cleanroom areas. The unit is designed for use with the 50 and 55 mm T-Bar ceiling grid. This unit can also be utilized in a liquid seal ceiling grid. The unit is lightweight and easy to install.
Construction
The AstroFan unit is comprised of an aluminium housing with a high performance, encapsulated, direct driven backward curved fan/motor combination and a replaceable HEPA or ULPA AstroCel® II filter.
Motors and Controls
This unit is available with traditional highly efficient AC motors, operating with either single phase or 3 phase motors. Controls can be either with a 5-step speed controller or stepless controller.
This execution provides economical solutions for many applications. Utilizing the EC (electrically commutated) system external rotor motors greatly reduces the power consumption of the unit. Consequently, the cooling requirement will also be reduced.
Controls include the electronic commutation unit, standard single unit control, standard RFI suppression and PFC (power factor controller), and computer interface. Two wire twisted cable installations to the bus make installation easy. The main supply is the single phase 230 50/60Hz. AstroCel II filter. The unit is equipped with HEPA filters in Class H13 – U17. All filters are factory scanned to the European Standard to ensure leak-free operation.
The low pressure drop of the AstroCel II filter provides, in combination with the high total static pressure of the fan, a free static pressure of 70-100 Pa at full rated airflow. This static pressure results in extended filter life, and it can be utilized for external use on pre-filters or cooling coils.
Lower Energy Consumption up to 30 – 40%
With the use of energy-saving electronically commutated (EC) external motor and both of the aerodynamic design of the housing as well as the new development of ePTFE low resistance (up to 40%) MegaCel II Filter. The AAF AstroFan EC FFU can contribute to more energy saving which reduces 30-40% energy consumption compared to AC FFU.
Filter Specification
EN1822 | H13 - U17 |
ISO 29463 | ISO 35 H - ISO 75 U |
Filter Depth (mm) | 69, 93, 117 |
Media Type | Fibreglass, ePTFE, eFRM |
Frame Material | Aluminium |
Seperator Style | Hot Melt |
Gasket Material | PU, Neoprene, EPDM |
Gasket Position | Upstream, Downstream, Both Sides |
Faceguard Position | Both Sides |
Antimicrobial Available | Optional |
Recommended Final Resistance | 500 Pa |
Max Operating Temperature | 70ºC |
Air Filtration Certificate | UL 900, FM 49203 |
Housing Specification
Housing Depth (mm) | 295, 315 |
Housing Material | Galvalume, Stainless Steel, Aluminium |
Power Supply | 1Ph/50/60Hz/230VAC |
Air Velocity | 0.45 m/s +/- 20% |
Control Method1 | AstroDrive Software |
Sound Pressure Level2 | 53 - 57 dBA |
Pre-filter | Optional |
Pressure Port | Optional |
Special Size Available | Yes |
Installation Method | CRM Ceiling Grid |
Housing Information
Size (WxHxD)mm | Rated Airflow (CMH) |
575 x 575 x 295 | 526 |
575 x 1175 x 295 | 1,080 |
1175 x 1175 x 315 | 2,218 |
