DriPak 2000

Mã sản phẩm: (Đang cập nhật...)

Thương hiệu: AAF

Liên hệ

Đang cập nhật

Khuyến mại - Ưu đãi

Zalo tư vấn & báo giá: 0971.344.344 Sao chép mã

Điện thoại tư vấn & báo giá Miền Nam: 0827.077.078 Sao chép mã

Điện thoại tư vấn & báo giá Miền Bắc: 0829.077.078 Sao chép mã

Gọi ngay 0971.344.344 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận

Thông tin chi tiết

Tiêu chuẩn: M5 đến F9 theo tiêu chuẩn EN779
ASHRAE 52.2: MERV 10 – 15
ISO 16890: Epm10 65%, 80%, 85%
Độ sâu(mm): 305 – 914
Vật liệu lọc: Sợi tổng hợp
Vật liệu khung: Thép mạ kẽm
Áp suất cuối cùng: 450 Pa
Nhiệt độ hoạt động: 66°C
Chứng nhận lọc: UL 900

Thông tin sản phẩm
Liên hệ mua hàng

BAG FILTERS: DriPak 2000

High-loft layered melt blown synthetic media, stronger than fibreglass
Non-shedding and water-resistant media
Ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage
Strong and robust material that displays excellent abrasion resistance and performs well in 100% RH condition

Typical applications

Automotive
Commercial Buildings
Data Centers
Food & Beverage
Hospitality
Industrial
Schools and Universities

Benefits & Features

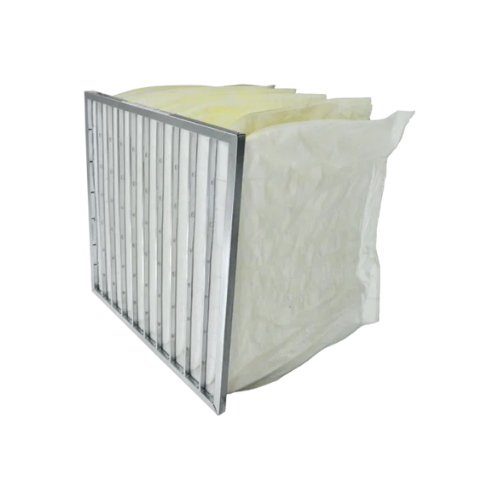

DriPak 2000 Filter

Designed for high performance in demanding operating conditions, the DriPak 2000 extended surface pocket filters can function as either prefilters or final filters, where clean air is a necessity.

DriPak 2000 filters are ideal for healthcare facilities, automotive paint booths, commercial buildings, and a variety of industrial applications. Designed and manufactured by AAF Flanders, pioneers in extended surface pocket filters, the ultrasonically-welded DriPak 2000 filter raises the industry standard for value and performance.

Now Better Than Ever

Today’s DriPak 2000 filter features a unique, ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage. Reinforced pocket support frames eliminate flexing or buckling, even in a turbulent operating environment.

The DriPak 2000 filter is available in four efficiencies, MERV 15, MERV 14, and MERV 12 to meet the requirements of your HVAC system. The DriPak 2000 filter with antimicrobial is designed specifically to improve Indoor Air Quality (IAQ).

Air filters trap and concentrate particulate air contaminants, including viable fungal and bacterial spores. The presence of the antimicrobial preservative in the filter media is intended to preserve the integrity of the media throughout the useful life of the filter. Antimicrobial preservatives are not meant to increase the efficiency of the filter, nor to kill microorganisms “on the fly” as they pass through a filter.

IAQ Engineered

The DriPak 2000 filter is made from layered, meltblown synthetic media, protected by a scrim on the air-leaving side. Layering the media provides both a high-efficiency final filter layer that effectively filters fine particulate, and an integral lofted prefilter layer that captures larger particulate. Meltblown synthetic media is stronger than fiberglass, and is both non-shedding and water-resistant.

Designed for Performance

DriPak 2000 filters employ a sturdy pocket design that includes ultrasonic welding to ensure leak-free pockets. Interlocked support frames attached to the pockets prevent flexing and buckling during full inflation. The double U-shaped, reinforced header forms a solid container for the pocket support frames.

Ultrasonically-Welded Pocket Construction

The DriPak 2000 filter ultrasonically-welded pocket construction features ribbons of fabric sealed inside the pockets to create aerodynamic channels. This eliminates the needle holes associated with span stitching. The contoured shape of the pocket allows full inflation without crowding or restricting airflow, to ensure full media utilization and long service life.

Specification

EN779	M5 - F9
ASHRAE 52.2	MERV 10 - 15
ISO 16890	ePM10 70% - 85%
Filter Depth (mm)	305 - 914
Media Type	Synthetic
Frame Material	Galvanised Steel
Special Size Available	Yes
Antimicrobial Available	Optional
Single Header	Yes
Recommended Filter Resistance	450 Pa
Max Operating Temperature	66°C
Air Filtration Certificate	UL 900

Product Information

Part Number	Size (WxHxD)mm	Number of Pocket	Rated Airflow (CMH)	Rated Initial Resistance (Pa)
M5 / MERV 10
M704-123-120	289 x 594 x 305	3	1,700	97
M704-135-120	492 x 594 x 305	5	2,800
M704-116-120	594 x 594 x 305	6	3,400
M704-123-150	289 x 594 x 381	3	1,700	84
M704-135-150	492 x 594 x 381	5	2,800
M704-116-150	594 x 594 x 381	6	3,400
M704-124-210	289 x 594 x 533	4	1,700	68
M704-136-210	492 x 594 x 533	6	2,800
M704-118-210	594 x 594 x 533	8	3,400
M704-124-240	289 x 594 x 610	4	1,700	53
M704-136-240	492 x 594 x 610	6	2,800
M704-118-240	594 x 594 x 610	8	3,400
M6 / MERV 11 / ePM10 70%
M706-123-100	289 x 594 x 254	3	1,700	123
M706-135-100	492 x 594 x 254	5	2,800
M706-116-100	594 x 594 x 254	6	3,400
M706-123-120	289 x 594 x 305	3	1,700	104
M706-135-120	492 x 594 x 305	5	2,800
M706-116-120	594 x 594 x 305	6	3,400
M706-123-150	289 x 594 x 381	3	1,700	90
M706-135-150	492 x 594 x 381	5	2,800
M706-116-150	594 x 594 x 381	6	3,400
M706-124-210	289 x 594 x 533	4	1,700	73
M706-136-210	492 x 594 x 533	6	2,800
M706-118-210	594 x 594 x 533	8	3,400
M706-124-240	289 x 594 x 610	4	1,700	55
M706-136-240	492 x 594 x 610	6	2,800
M706-118-240	594 x 594 x 610	8	3,400
F7 / MERV 13 / ePM10 80%
M708-123-100	289 x 594 x 254	3	1,700	182
M708-135-100	492 x 594 x 254	5	2,800
M708-116-100	594 x 594 x 254	6	3,400
M708-123-120	289 x 594 x 305	3	1,700	148
M708-135-120	492 x 594 x 305	5	2,800
M708-116-120	594 x 594 x 305	6	3,400
M708-123-150	289 x 594 x 381	3	1,700	128
M708-135-150	492 x 594 x 381	5	2,800
M708-116-150	594 x 594 x 381	6	3,400
M708-124-210	289 x 594 x 533	4	1,700	86
M708-136-210	492 x 594 x 533	6	2,800
M708-118-210	594 x 594 x 533	8	3,400
M708-124-240	289 x 594 x 610	4	1,700	73
M708-136-240	492 x 594 x 610	6	2,800
M708-118-240	594 x 594 x 610	8	3,400

========================================================================================
