SAAFBlend W

Mã sản phẩm: M403-000-013
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*Typical Properties: SAAFCarb
*Raw Material: Virgin Coal
*Shape: Cylindrical Pellet
*Apparent Density (ASTM D2854): 0.5g/cc (~30lb/ft3) ± 10%
*Pellet Diameter (ASTM D2862): 4mm ± 10%
*Total Ash Content (ASTM D2866): < 12 wt. %
*Moisture Content (ASTM D2867): ≤ 5 wt. %

MEDIA: SAAFBlend WS
  • Targets acidic gases, volatile organic compounds, relative molecular weight organics
  • Accurate service life testing
Typical applications
  • Commercial Buildings
  • Data Centers
  • Food & Beverage
  • Healthcare
Benefits & Features
Engineered Media

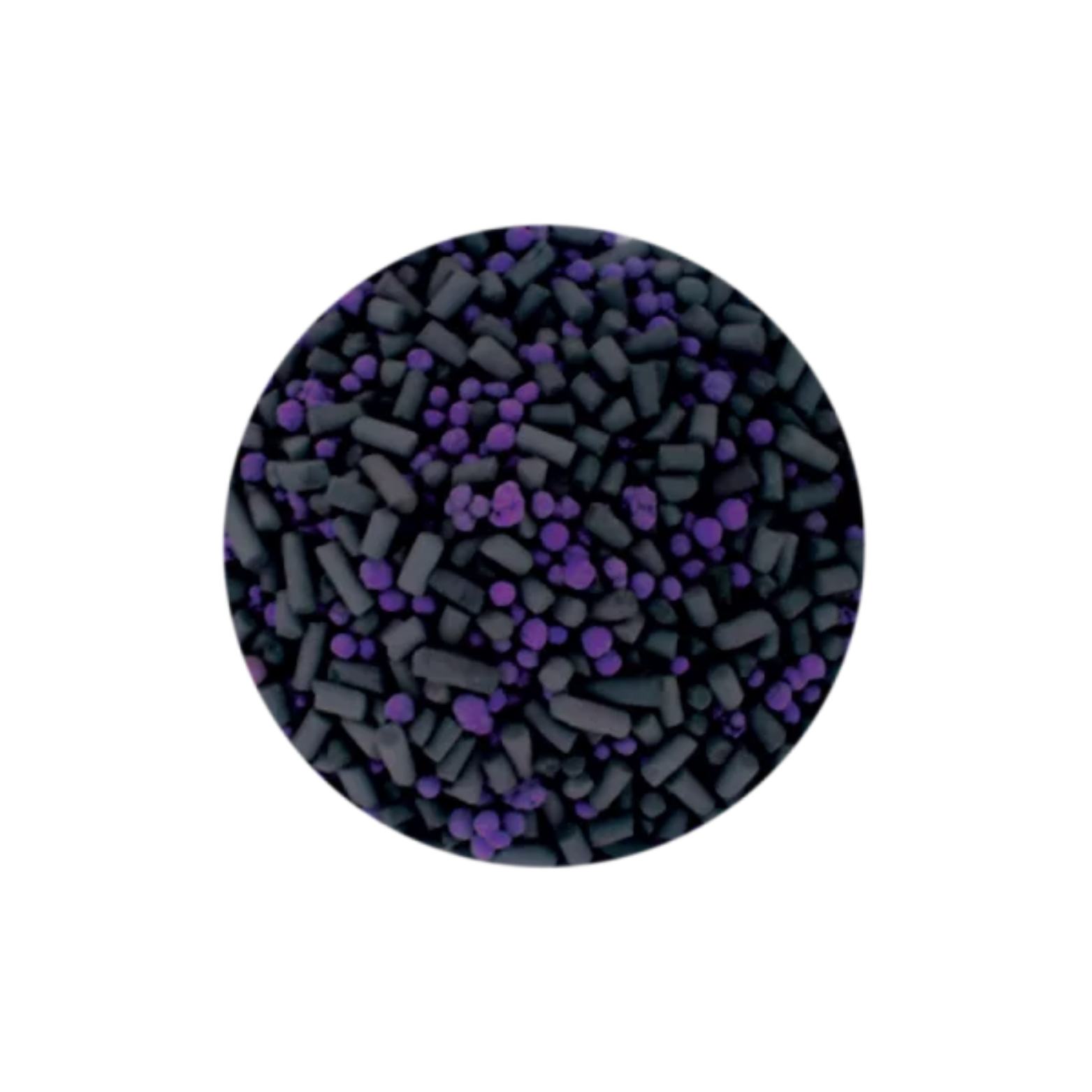

SAAFBlend WS media is produced from an equal volumetric mix of SAAFCarb, SAAFCarb MA, and SAAFOxidant media. Manufactured of spherical and porous pellets. SAAFOxidant engineered media is composed of a combination of activated alumina and other binders. Potassium permanganate is applied uniformly during pellet formation and is distributed throughout the pellet volume. This process provides the maximum amount of impregnant for chemical reaction and optimal performance. SAAFCarb media is manufactured of pelletized activated carbon media that is composed of high-quality virgin substrates, in order to provide optimum adsorption for various gaseous contaminants. SAAFCarb MA media is composed of pelletized activated carbon media suitably impregnated for the removal of acid gases.
Adsorptive Process
SAAFCarb media removes toxic and impure gases primarily by adsorption. In this process, the gases remain on the surface of the pellet.
Chemisorption Process
The SAAFOxidant and SAAFCarb MA media chemisorption process removes the contaminant gases by adsorption, absorption, and chemical reaction. In this process, the gas is trapped within the pellet, where oxidation changes the gases into harmless solids and thereby mitigates the possibility of desorption.
Quality Control
SAAFBlend WS media contains an equal volumetric mix of SAAFOxidant, SAAFCarb, and SAAFCarb MA media. Each media undergoes respective quality control tests. All these tests are to make sure that the physical as well as chemical properties can play its own role to achieve the performance designed for this media.
The quality control tests included:
  • Apparent Density
  • Ball-pan Hardness
  • Crush Strength
  • CTC Activity
  • H2S Gas Capacity
  • Moisture Content
  • Pellet Diameter
Specifications
Typical Properties
SAAFCarb
SAAFCarb MA
SAAFOxidant
Raw Material
Virgin Coal
Impregnated Coal
Chemical
Shape
Cylindrical Pellet
Cylindrical Pellet
Sphere Pellet
Apparent Density (ASTM D2854)
0.5g/cc (~30lb/ft3) ± 10%
0.6g/cc (~40lb/ft3) ± 10%
0.8g/cc (~50lb/ft3) ± 10%
Pellet Diameter (ASTM D2862)
4mm ± 10%
4mm ± 10%
2.83 – 5.66 mm
Total Ash Content (ASTM D2866)
< 12 wt. %
< 12 wt. %
N/A
Moisture Content (ASTM D2867)
≤ 5 wt. %
≤ 15 wt. %
≥ 15 wt. %
Crush Strength (AAF 392-800-002-4)
N/A
N/A
≥ 50N
Hardness (ASTM D3802)
≥ 95%
≥ 95%
N/A
Abrasion
< 1%
< 1%
≤ 4.5%
Iodine Number (ASTM D4607)
≥ 1000 mg/g
≥ 1000 mg/g
N/A
Gas Capacity (ASTM D6646)
N/A
0.14 – 0.16g, H2S/cc media
0.08 – 0.10G H2S/cc media
CTC Rating (ASTM D5742)
≥ 60 wt. %
≥ 60 wt. %
N/A
Impregnation (AAF 392-800-002-0)
N/A
≥ 6% KOH
≥ 8% KMnO4
Removal Capacity
≥ 24 wt. %, C4H10
≥ 23 wt. %, H2S
≥ 14wt. %, H2S

Product Information
Part Number
Media Type
Media Weight per Box (kg / lb)
Box Volume (Cubic Meter / Cubic Feet)
M403-000-013
SAAFBlend WS (33 / 33 / 33)
18.2 / 40
0.0283 / 1
