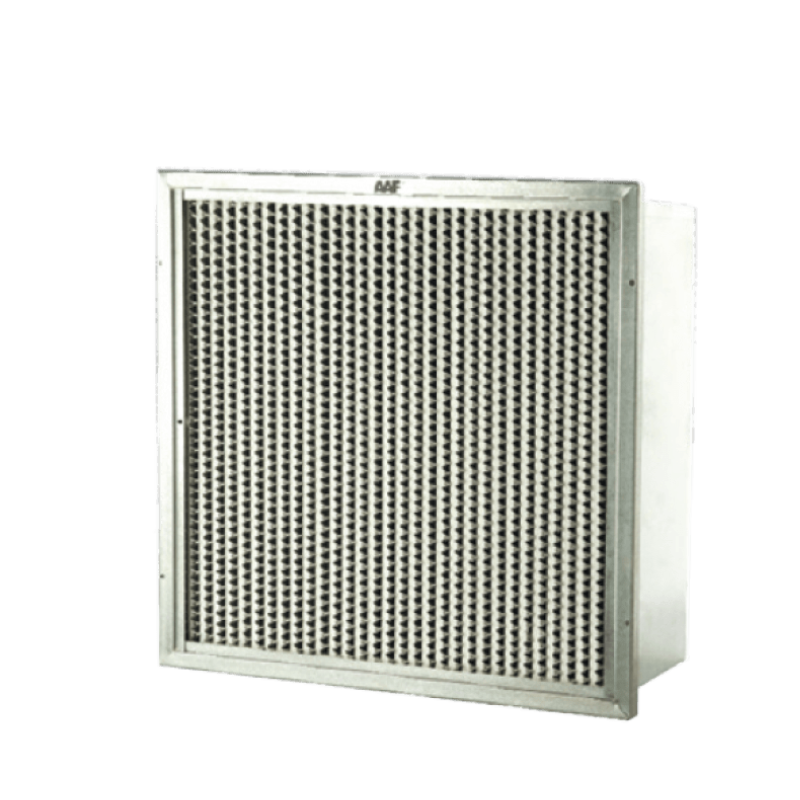

VariCel I HT-500

Mã sản phẩm: (Đang cập nhật...)

Thương hiệu: AAF

Liên hệ

Đang cập nhật

Gọi ngay 0971.344.344 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận

Thông tin chi tiết

EN779: M6 - F9
ASHARE 52.2: MERV 11 - 15
Filter Depth (mm): 149, 292
Media Type: Fibreglass
Frame Material: Fibreglass
Separator Style: Aluminium
Sealant: Red Silicone
Special Size Available: Yes
Antimicrobial Available: No
Header Type: Single, Double, None Header
Recommended Final Resistance: 450 Pa
Max Operating Temperature: 260°C

Thông tin sản phẩm
Liên hệ mua hàng

HIGH TEMP FILTERS: VariCel I HT-500

Excellent performance
Designed for oven and other high temperature applications
260º C maximum temperature

Typical applications

Automotive
Industrial

Benefits & Features

- The VariCel HT filter is designed for use in drying ovens. Made of sturdy aluminized steel, this filter has a maximum continuous operating temperature of 260 °C. Aluminized steel is used because it does not spall or flake at elevated temperatures.

- To ensure a high integrity construction, this filter’s headers and cell sides are mechanically interlocked. The filter hasn’t adhesives, sealants, or glues that could degrade at high temperatures, causing structural damage to the filter or affecting the quality of the drying process.

- Filter strength is further enhanced by aluminized faceguards and support bars on the leaving sides. This filter is available in the classification ranges M6, F7, F8 and F9 according to EN779:2012.

Specifications

EN779	M6 – F9
ASHRAE 52.2	MERV 11-15
Filter Depth (mm)	149, 292
Media Type	Fibreglass
Frame Material	Galvaniseed Steel
Separator Style	Aluminium
Sealant	Red Silicone
Special Size Available	Yes
Antimicrobial Available	No
Header Type	Single, Double, None Header
Recommended Final Resistance	450 Pa
Max Operating Temperature	260º C

Từ khóa: VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500, VariCel I HT-500

Product Information

Part Number	Size (WxHxD)mm	Header Type	Rated Airflow (CMH)	Rated Initial Resistance (Pa)
M6 / MERV 11
M3561-3500-1006	289 x 594 x 149	Single	850	40
M3561-3500-1007	492 x 594 x 149		1,400
M3561-3500-1008	594 x 594 x 149		1,700
M3562-3500-1006	289 x 594 x 149	Double	850
M3562-3500-1007	492 x 594 x 149		1,400
M3562-3500-1008	594 x 594 x 149		1,700
M3563-3500-1006	289 x 594 x 149	None	850	35
M3563-3500-1007	492 x 594 x 149		1,400
M3563-3500-1008	594 x 594 x 149		1,700
M3561-5500-1009	289 x 594 x 292	Single	1,700	94
M3561-5500-1010	492 x 594 x 292		2,800
M3561-5500-1004	594 x 594 x 292		3,400
M3562-5500-1009	289 x 594 x 292	Double	1,700
M3562-5500-1010	492 x 594 x 292		2,800
M3562-5500-1004	594 x 594 x 292		3,400
M3563-5500-1009	289 x 594 x 292	None	1,700	80
M3563-5500-1010	492 x 594 x 292		2,800
M3563-5500-1004	594 x 594 x 292		3,400
F7 / MERV 13
M3581-3500-1006	289 x 594 x 149	Single	850	75
M3581-3500-1007	492 x 594 x 149		1,400
M3581-3500-1008	594 x 594 x 149		1,700
M3582-3500-1006	289 x 594 x 149	Double	850
M3582-3500-1007	492 x 594 x 149		1,400
M3582-3500-1008	594 x 594 x 149		1,700
M3583-3500-1006	289 x 594 x 149	None	850	60
M3583-3500-1007	492 x 594 x 149		1,400
M3583-3500-1008	594 x 594 x 149		1,700
M3581-5500-1009	289 x 594 x 292	Single	1,700	125
M3581-5500-1010	492 x 594 x 292		2,800
M3581-5500-1004	594 x 594 x 292		3,400
M3582-5500-1009	289 x 594 x 292	Double	1,700
M3582-5500-1010	492 x 594 x 292		2,800
M3582-5500-1004	594 x 594 x 292		3,400
M3583-5500-1009	289 x 594 x 292	None	1,700	115
M3583-5500-1010	492 x 594 x 292		2,800
M3583-5500-1004	594 x 594 x 292		3,400
F8 / MERV 14
M3591-3500-1006	289 x 594 x 149	Single	850	95
M3591-3500-1007	492 x 594 x 149		1,400
M3591-3500-1008	594 x 594 x 149		1,700
M3592-3500-1006	289 x 594 x 149	Double	850
M3592-3500-1007	492 x 594 x 149		1,400
M3592-3500-1008	594 x 594 x 149		1,700
M3593-3500-1006	289 x 594 x 149	None	850	75
M3593-3500-1007	492 x 594 x 149		1,400
M3593-3500-1008	594 x 594 x 149		1,700
M3591-5500-1009	289 x 594 x 292	Single	1,700	145
M3591-5500-1010	492 x 594 x 292		2,800
M3591-5500-1004	594 x 594 x 292		3,400
M3592-5500-1009	289 x 594 x 292	Double	1,700
M3592-5500-1010	492 x 594 x 292		2,800
M3592-5500-1004	594 x 594 x 292		3,400
M3593-5500-1009	289 x 594 x 292	None	1,700	120
M3593-5500-1010	492 x 594 x 292		2,800
M3593-5500-1004	594 x 594 x 292		3,400
F9 / MERV 15
M3501-3500-1006	289 x 594 x 149	Single	850	135
M3501-3500-1007	492 x 594 x 149		1,400
M3501-3500-1008	594 x 594 x 149		1,700
M3502-3500-1006	289 x 594 x 149	Double	850
M3502-3500-1007	492 x 594 x 149		1,400
M3502-3500-1008	594 x 594 x 149		1,700
M3503-3500-1006	289 x 594 x 149	None	850	115
M3503-3500-1007	492 x 594 x 149		1,400
M3503-3500-1008	594 x 594 x 149		1,700
M3501-5500-1009	289 x 594 x 292	Single	1,700	173
M3501-5500-1010	492 x 594 x 292		2,800
M3501-5500-1004	594 x 594 x 292		3,400
M3502-5500-1009	289 x 594 x 292	Double	1,700
M3502-5500-1010	492 x 594 x 292		2,800
M3502-5500-1004	594 x 594 x 292		3,400
M3503-5500-1009	289 x 594 x 292	None	1,700	156
M3503-5500-1010	492 x 594 x 292		2,800
M3503-5500-1004	594 x 594 x 292		3,400

========================================================================================
