Trong 30 ngày sau khi nhậnPleated Filters: AmWash
*Filter Class: G3,4 according to EN779
*Filter Class: MERV 5,7 according to ASHARE 52.2
*ISO 16890: Coarse 60%, 70%
*Antimicrobial Available: No
*Media Type: Synthetic
*Frame Material: Aluminum
*Recommended Final Resistance: 250 Pa
*Max Operating Temperature: 100º C
- Thông tin sản phẩm
- Liên hệ mua hàng
-
Washable
-
Reusable filter frame
-
High dust loading capacity
-
Choice of media in the classification range G3 to G4 (EN779)
-
Lightweight and easy to install
-
Commercial Building
-
Data Centers
-
Industrial
-
Schools & Universities
Lightweight, Easy To Install and Long Service Life
-

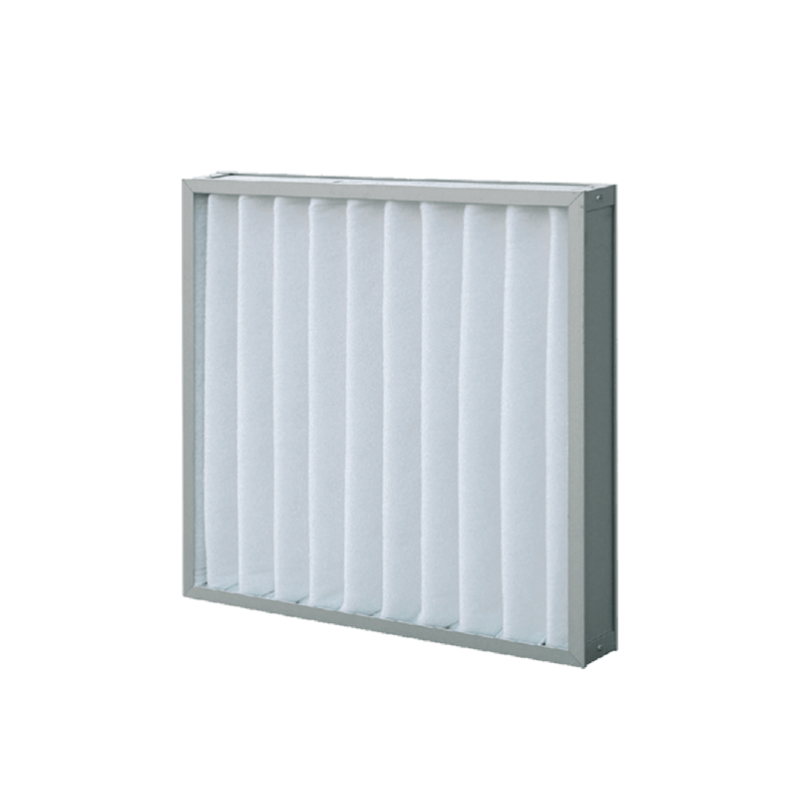

The AmWash filter is a lightweight panel filter and has a sturdy, long lasting aluminium frame that offers great resistance in harsh operating conditions. Due to its lightweight and compact size, this filter is relatively inexpensive to ship and easy to handle and install. If required, the AmWash filter can be supplied with a stainless steel or galvanised steel frame and can be manufactured to any size.
-
The AmWash filter can be blow-cleaned with compressed air, but only once or twice during its natural lifetime. The AmWash filter can also be cleaned with a solution of water and detergent on a limited basis
-
Available with 2 classifications: G3 and G4 in accordance with EN779
|
EN779 |
G3, G4 |
|
ASHRAE 52.2 |
MERV 5, 7 |
|
ISO 16890 |
Coarse 60%, 70% |
|
Filter Depth (mm) |
46, 97 |
|
Media Type |
Synthetic |
|
Frame Material |
Aluminum |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
No |
|
Recommended Final Resistance |
250 Pa |
|
Max. Operating Temperature |
100˚C |
|
Part Number |
Media |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
G3 / MERV 5 / Coarse 60% |
||||
|
T111-292-021 |
R29 |
391 x 492 x 46 |
1,890 |
83 |
|
T111-292-015 |
492 x 492 x 46 |
2,360 |
||
|
T111-292-006 |
289 x 594 x 46 |
1,700 |
||
|
T111-292-005 |
492 x 594 x 46 |
2,830 |
||
|
T111-292-004 |
594 x 594 x 46 |
3,400 |
||
|
T111-292-088 |
391 x 619 x 46 |
2,360 |
||
|
T111-292-068 |
492 x 619 x 46 |
2,950 |
||
|
T111-294-016 |
391 x 492 x 97 |
1,890 |
72 |
|
|
T111-294-004 |
492 x 492 x 97 |
2,360 |
||
|
T111-294-003 |
289 x 594 x 97 |
1,700 |
||
|
T111-294-002 |
492 x 594 x 97 |
2,830 |
||
|
T111-294-001 |
594 x 594 x 97 |
3,400 |
||
|
T111-294-017 |
391 x 619 x 97 |
2,360 |
||
|
T111-294-018 |
492 x 619 x 97 |
2,950 |
||
|
G4 / MERV 7 / Coarse 70% |
||||
|
T111-502-062 |
R50 |
391 x 492 x 46 |
1,890 |
105 |
|
T111-502-015 |
492 x 492 x 46 |
2,360 |
||
|
T111-502-003 |
289 x 594 x 46 |
1,700 |
||
|
T111-502-004 |
492 x 594 x 46 |
2,830 |
||
|
T111-502-002 |
594 x 594 x 46 |
3,400 |
||
|
T111-502-020 |
391 x 619 x 46 |
2,360 |
||
|
T111-502-136 |
492 x 619 x 46 |
2,950 |
||
|
T111-504-037 |
391 x 492 x 97 |
1,890 |
75 |
|
|
T111-504-004 |
492 x 492 x 97 |
2,360 |
||
|
T111-504-003 |
289 x 594 x 97 |
1,700 |
||
|
T111-504-002 |
492 x 594 x 97 |
2,830 |
||
|
T111-504-001 |
594 x 594 x 97 |
3,400 |
||
|
T111-504-038 |
391 x 619 x 97 |
2,360 |
||
|
T111-504-031 |
492 x 619 x 97 |
2,950 |
||
