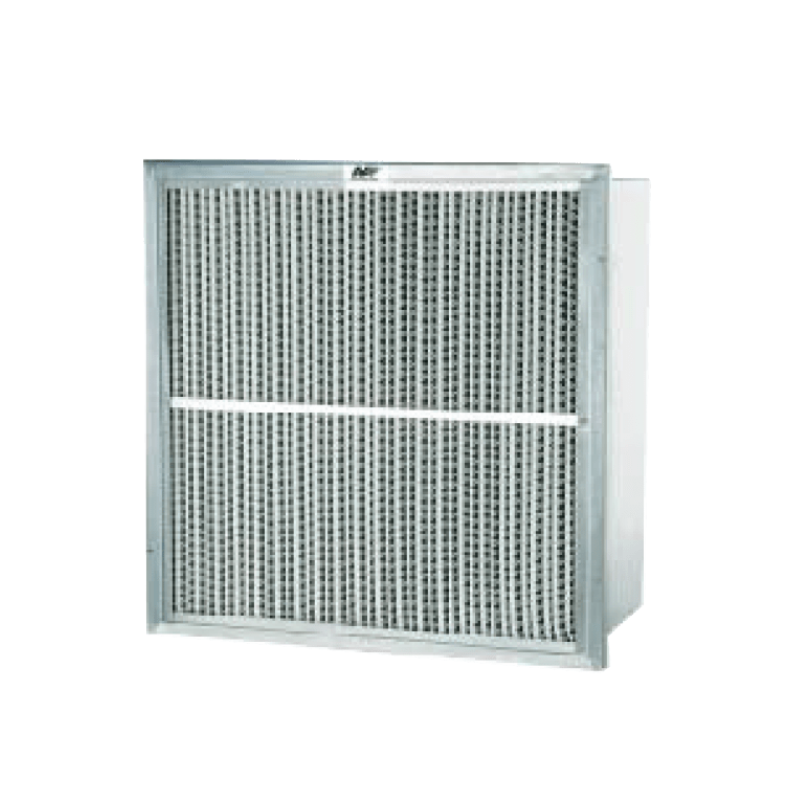

EPA FILTERS: BioCel I
-
Rigid all-metal construction and water-resistant media in a supported pleat-type configuration
-
Can be used in systems with difficult operating conditions, including:
-
Variable air volume
-
Turbulent airflow
-
Repeated fan shutdown
-
High temperature
-
High humidity
-
Intermittent exposure to water, such as sea coast installations
-
Typical applications
-
Commercial Building
-
Healthcare
-
Schools & Universities
-
Food and Beverage
-
Pharmaceutical
Benefits & Features
High Efficiency – Low Resistance
- Rated at 95% efficiency on 0.3 micrometer challenge aerosol, and a MERV 16 per ASHRAE Standard 52.2, the BioCel I filter has the advantage of a much lower pressure drop than a typical HEPA filter (0.4″ versus 1.0″ w.g. at 250 FPM).
- BioCel I filter fill the gap between ASHRAE-grade high-efficiency filters and ultra-high efficiency HEPAs at half the weight and pressure drop. This compact, lightweight filter will withstand operating temperatures to 350˚F, if recommended final resistance is not exceeded. To maximize filter life, use BioCel I filters with high-quality AAF Flanders prefilters.
Ideal for Variable Volume Systems Construction
- BioCel I filter consists of a pleated media pack enclosed in a galvanized steel frame assembly. The media is made of ultra-fine fiberglass formed into a series of pleats. Corrugated aluminum separators maintain uniform spacing between each pleat to allow unrestricted airflow through the filter. Bar braces are installed on both sides of the filter for extra reinforcement of the media pack. A flattened, expanded faceguard installed on both sides of the filter is available as an option.
- BioCel I filter has a single-piece galvanized steel header on the air-entering side that is interlocked to the cell sides in a patented fashion, preventing leakage and forming a totally rigid construction.
Specifications
|
EN1822 |
E10, E11 |
|
Filter Depth (mm) |
149, 292 |
|
Media Type |
Fiberglass |
|
Frame Material |
Galvanised Steel |
|
Separator Style |
Aluminium |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
No |
|
Header Type (Standard) |
Single Header |
|
Header Type (Optional) |
Double Header |
|
Gasket Material (Standard) |
None |
|
Gasket Material (Optional) |
Neoprene, PU |
|
Recomm. Final Resistance |
500 Pa |
|
Max. Operating Temperature |
93˚C |
|
Air Filtration Certificate |
UL 900 |
Product Information
|
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
E10 |
|||
|
M510-532-415 |
289 x 594 x 149 |
850 |
250 |
|
M510-532-425 |
492 x 594 x 149 |
1,400 |
|
|
M510-532-413 |
594 x 594 x 149 |
1,700 |
|
|
M510-532-416 |
289 x 594 x 292 |
1,700 |
|
|
M510-532-423 |
492 x 594 x 292 |
2,800 |
|
|
M510-532-414 |
594 x 594 x 292 |
3,400 |
|
|
E11 |
|||
|
M610-532-415 |
289 x 594 x 149 |
750 |
250 |
|
M610-532-425 |
492 x 594 x 149 |
1,250 |
|
|
M610-532-413 |
594 x 594 x 149 |
1,500 |
|
|
M610-532-416 |
289 x 594 x 292 |
1,500 |
|
|
M610-532-423 |
492 x 594 x 292 |
2,500 |
|
|
M610-532-414 |
594 x 594 x 292 |
3,000 |
|
