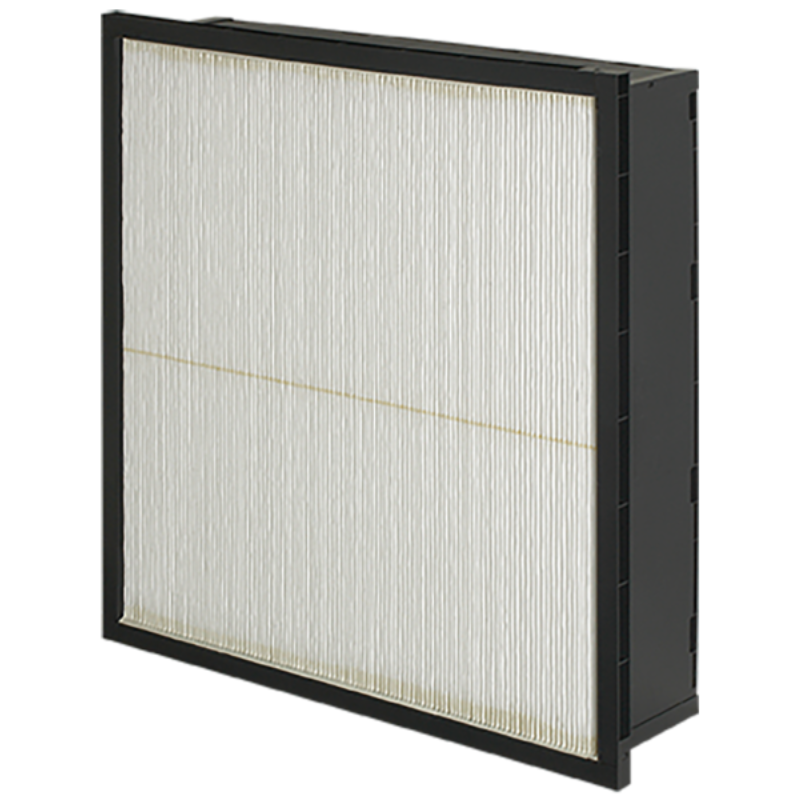

BioCel M-Pak
Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Hoàn Tiền 100%
Trường hợp hàng giá
Được kiểm tra hàng
Mở hộp khi nhận hàng
Đổi trả hàng miễn phí
Trong 30 ngày sau khi nhận- Thông tin sản phẩm
- Liên hệ mua hàng
EPA FILTERS:
-
Space-saving design reduces storage and handling cost
-
149 mm depth filter with the same performance as 292 mm depth filters
-
Sturdy high impact polystyrene cell sides enclose a fixed media pack
-
Fully incinerable
Typical applications
-
Commercial Building
-
Healthcare
-
Schools & Universities
-
Food and Beverage
-
Pharmaceutical
Benefits & Features
High Efficiency – Low Resistance
Rated 95% on 0.3 μm particles, and a MERV 16 per ASHRAE Standard 52.2, BioCel M-Pak filters have the advantage of a much lower pressure drop than a typical HEPA filter (0.36″ versus 1.0 in. w.g. at 250 FPM). BioCel M-Pak filters fill the gap between ASHRAE-grade high-efficiency filters and ultra-high-efficiency HEPAs, at a much lower weight and pressure drop.
This compact, lightweight filter will withstand operating temperatures to 176°F/80°C, if recommended final resistance is not exceeded. To maximize service life, use BioCel M-Pak filters with high quality AAF Flanders prefilters.
Cost-Saving Design
Due to the smaller footprint of the BioCel M-Pak filter, less space is required for storage. M-Pak filters are approximately 50% lighter than conventional 12″-deep filters that have metal cell sides. Easy handling means reduced maintenance costs and time savings. Disposal costs are also reduced, as two M-Pak filters can be disposed of in the space of one 12″-deep filter.
Construction
The header and cell sides of the BioCel M-Pak filter are constructed of high-impact polystyrene. The design, which encloses a fixed media pack, creates a rugged filter that resists damage during shipping, handling, and operation. All components of the BioCel M-Pak are fully incinerable.
Applications
The BioCel M-Pak filter is designed primarily to remove airborne biological contaminants in hospital-critical areas, and food and pharmaceutical processing plants. The filter is engineered to meet the exacting requirements of precision manufacturing operations and laboratories, where very high-efficiency filtration of fine particulate matter is necessary.
Specifications
|
EN1822 |
E10 |
|
Filter Depth (mm) |
149 |
|
Media Type |
Fiberglass |
|
Frame Material |
Plastic |
|
Separator Style |
Hot Melt |
|
Special Size Available |
No |
|
Antimicrobial Available |
No |
|
Header Type |
Single Header |
|
Gasket Material (Standard) |
None |
|
Gasket Material (Optional) |
Neoprene, PU |
|
Recomm. Final Resistance |
500 Pa |
|
Max. Operating Temperature |
70˚C |
|
Air Filtration Certificate |
UL 900 |
