VariCel S20
Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Hoàn Tiền 100%
Trường hợp hàng giá
Được kiểm tra hàng
Mở hộp khi nhận hàng
Đổi trả hàng miễn phí
Trong 30 ngày sau khi nhận- Thông tin sản phẩm
- Liên hệ mua hàng

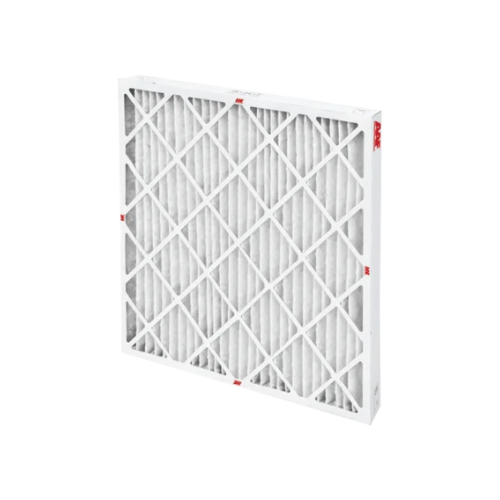

PANEL & PLEATED FILTER: VariCel S20
-
Economical, evaluated performance and construction
-
Engineered for a variety of application
-
High dust holding capacity
-
Improved efficiency to better protect HVAC coil and high efficiency filters
-
Heavy-duty, galvanized expanded metal support grid
-
Moisture-resistant beverage board
-
Available in 2” and 4” models
-
MERV 14 high-capacity filter
-
Easy disposal
Typical applications
-
Commercial Buildings
-
Industrial
-
Pharmaceutical
Benefits & Features
AAF’s PREpleat LPD HC filter is the lowest initial resistance MERV 8 pleated filter in the industry. Combined with its high DHC, the PREpleat LPD HC filter provides an extended life cycle and energy efficient performance.
Superior Design and Construction
- Media: 100% synthetic non-woven, proprietary media that can be recycled. Engineered with a gradient density composition that achieves a MERV 8 rating using the mechanical method of particle capture. Media does not rely on an electrostatic charge to capture particulates, since the charge dissipates over time.
- Media Support: Expanded metal is continuously laminated on the air leaving side to provide pleat stability during operation. Pleat shape is maintained, allowing full media utilization and maximizing DHC.
- Pleat Design: V-Pleat design aids in pressure drop while reducing energy cost. Design allows for maximum airflow and DHC during the life of the filter.
- Frame: Heavy-duty, two piece, moisture-resistant frame includes diagonal and horizontal support members bonded to the media on the air entering and exiting sides for unsurpassed frame strength. Interlocking corners and positive media-to-frame seal reduce the possibility of air bypass.
- Operating Temperature Limits: Max. operating temp. is 180°F (82°C).
Specification
|
ASHRAE 52.2 |
MERV 14 |
|
Filter Depth (mm) |
44, 95 |
|
Media Type |
Synthetic |
|
Frame Material (Standard) |
Moisture Resistant Beverage Board |
|
Frame Material (Optional) |
Stainless Steel, Aluminum, GI |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
Optional |
|
Recommended Filter Resistance |
250 Pa |
|
Max Operating Temperature |
93°C |
Product Information
|
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
44 mm |
|||
|
M154-202-500 |
391 x 492 x 44 |
1,860 |
95 |
|
M154-202-700 |
492 x 492 x 44 |
2,320 |
|
|
M154-202-319 |
289 x 594 x 44 |
1,700 |
|
|
M154-202-782 |
492 x 594 x 44 |
2,800 |
|
|
M154-202-863 |
594 x 594 x 44 |
3,400 |
|
|
M154-202-600 |
391 x 619 x 44 |
2,320 |
|
|
M154-202-800 |
492 x 619 x 44 |
2,900 |
|
|
95 mm |
|||
|
M154-204-500 |
391 x 492 x 95 |
1,860 |
65 |
|
M154-204-700 |
492 x 492 x 95 |
2,320 |
|
|
M154-204-319 |
289 x 594 x 95 |
1,700 |
|
|
M154-204-782 |
492 x 594 x 95 |
2,800 |
|
|
M154-204-863 |
594 x 594 x 95 |
3,400 |
|
|
M154-204-600 |
391 x 619 x 95 |
2,320 |
|
|
M154-204-800 |
492 x 619 x 95 |
2,900 |
|
