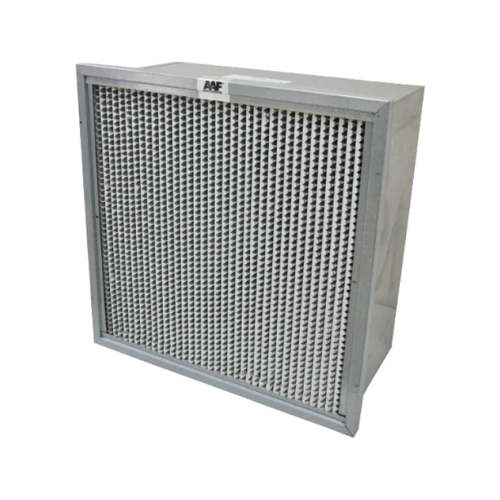

COMPACT FILTER: VariCel l

Excellent performance in difficult operating conditions
Dual density media delivers longer life and the lowest initial resistance
Designed to improve Indoor Air Quality
Water-resistant media ideal for installations in humid areas, or where exposed to moisture
MERV 13 meet LEED® Project Certification efficiency requirements

Typical applications

Commercial Buildings
Data Centers
Food and Beverage
Schools and Universities

Benefits & Features

Designed to Improve Indoor Air Quality

VariCel I filters with antimicrobial are designed specifically to improve Indoor Air Quality (IAQ). Air filters are designed to trap and concentrate particulate air contaminants, including viable fungal and bacterial spores. The presence of antimicrobial preservative in the filter media is intended to preserve the integrity of the media throughout the useful life of the filter. Antimicrobial preservatives are not meant to increase the efficiency of the filter, nor to kill microorganisms “on the fly” as they pass through a filter. Antimicrobial is EPA registered and environmentally safe.

Dual-Density Media Reduces Operating Costs

VariCel I media is manufactured with two layers of glass fibres, coarser fibres on the air-entering side and finer fibres on the air-leaving side. Our dual density design allows dirt particles to be collected throughout the entire depth of the filter, utilising the full cleaning potential of the media. Maximum dust holding capacity extends the life of the filter, minimising operating costs. The water-resistant media can withstand intermittent exposure to water, making VariCel® I filters ideal for installations in humid areas, or where the filters are exposed to moisture.

Type SH Single Header

VariCel I filters are designed for systems supplied by AAF International. A unique flanged header on the air-entering side allows the filter to be easily inserted and latched into front and side access systems.

Type DH Double Header

VariCel I filters are designed to upgrade air cleaning performance and reliability. Flanged headers make the filters compatible with the holding frames and latching devices of various manufacturers, including rear access systems.

Built Rugged for Dependable Performance

VariCel I’s rigid construction with supported pleat media pack maintains a compact, unitised structure even under tough operating conditions. Variable air velocity and repeated fan shutdown do not compromise performance.

Unitised Construction

Interlocked header and cell sides, along the entire length of each side, provide maximum sealing. Competitor filters are designed with loose fitting headers, which allow greater potential for bypass leakage.

Pleats and Separators Bonded for Strength

During the pleating process, spots of glue are applied to bond each separator to the adjacent pleat. This solidifies the media pack to minimise movement and prevent media damage. Burst strength is increased to prevent the filter from blowing out under variable air volume conditions or unusually high resistance.

Galvanised steel headers and cell sides resist damage during shipping and handling, and prevent corrosion over long service life (HT VariCel filters are constructed of aluminised steel).

Easy Installation

Rigid construction and minimum depth make VariCel I filters easy to install in all types of systems.

Options

VariCel I filters can be ordered with faceguards made of flattened, expanded, galvanised or aluminised steel on one or both sides of the filter.

Factory-installed gaskets are available on the front or back of the header.

Vinyl coated separators are available for corrosive conditions.

Single Header VariCel I filters, designed for other manufacturers’ equipment, are also available.

Specifications

EN779	M6 – F9
ASHRAE 52.2	MERV 11 – 15
ISO 16890	ePM10 70%, ePM1 55% – 80%
Filter Depth (mm)	149, 292
Media Type	Fibreglass
Frame Material (Standard)	Galvanised Steel
Frame Material (Optional)	Particle Board, MDF, Plywood
Separator Style	Aluminium
Special Size Available	Yes
Antimicrobial Available	Optional
Header Type (Standard)	Single, Double, None header
Recomm. Final Resistance	450 Pa
Max. Operating Temperature	120˚C (SH & DH), 93˚C (NH)
Air Filtration Certificate	UL 900

Product Information

Part Number	Size (WxHxD)mm	Header Type	Rated Airflow (CMH)	Rated Initial Resistance (Pa)
M6 / MERV 11 / ePM10 70%
M331-953-455	390 x 492 x 149	Single	950	40
M331-953-435	492 x 492 x 149		1,180
M331-953-449	289 x 594 x 149		850
M331-953-488	492 x 594 x 149		1,420
M331-953-447	594 x 594 x 149		1,700
M331-953-484	390 x 619 x 149		1,180
M331-109-440	289 x 594 x 149	Double	850
M331-109-406	492 x 594 x 149		1,420
M331-109-416	594 x 594 x 149		1,700
M331-009-549	289 x 594 x 149	None	850	35
M331-009-588	492 x 594 x 149		1,420
M331-009-547	594 x 594 x 149		1,700
M331-953-456	390 x 492 x 292	Single	1,890	94
M331-953-436	492 x 492 x 292		2,360
M331-953-450	289 x 594 x 292		1,700
M331-953-489	492 x 594 x 292		2,830
M331-953-448	594 x 594 x 292		3,400
M331-953-485	390 x 619 x 292		2,360
M331-109-402	289 x 594 x 292	Double	1,700
M331-109-403	492 x 594 x 292		2,830
M331-109-401	594 x 594 x 292		3,400
M331-009-550	289 x 594 x 292	None	1,700	80
M331-009-589	492 x 594 x 292		2,830
M331-009-548	594 x 594 x 292		3,400
F7 / MERV 13 / ePM1 55%
M331-765-455	390 x 492 x 149	Single	950	75
M331-765-435	490 x 492 x 149		1,180
M331-765-449	289 x 594 x 149		850
M331-765-488	492 x 594 x 149		1,420
M331-765-447	594 x 594 x 149		1,700
M331-765-484	390 x 619 x 149		1,180
M331-091-440	289 x 594 x 149	Double	850
M331-091-406	492 x 594 x 149		1,420
M331-091-416	594 x 594 x 149		1,700
M331-017-549	289 x 594 x 149	None	850	60
M331-017-588	492 x 594 x 149		1,420
M331-017-547	492 x 594 x 149		1,700
M331-765-456	390 x 492 x 292	Single	1,890	125
M331-765-436	492 x 492 x 292		2,360
M331-765-450	289 x 594 x 292		1,700
M331-765-489	492 x 594 x 292		2,830
M331-765-448	594 x 594 x 292		3,400
M331-765-485	390 x 619 x 292		2,360
M331-091-402	289 x 594 x 292	Double	1,700
M331-091-403	492 x 594 x 292		2,830
M331-091-401	594 x 594 x 292		3,400
M331-017-550	289 x 594 x 292	None	1,700	115
M331-017-589	492 x 594 x 292		2,830
M331-017-548	594 x 594 x 292		3,400
F8 / MERV 14 / ePM1 70%
M331-946-455	390 x 492 x 149	Single	950	95
M331-946-435	492 x 492 x 149		1,180
M331-946-449	289 x 594 x 149		850
M331-946-488	492 x 594 x 149		1,420
M331-946-447	594 x 594 x 149		1,700
M331-946-484	390 x 619 x 149		1,180
M331-300-440	289 x 594 x 149	Double	850
M331-300-406	492 x 594 x 149		1,420
M331-300-416	594 x 594 x 149		1,700
M331-025-549	289 x 594 x 149	None	850	75
M331-025-588	492 x 594 x 149		1,420
M331-025-547	594 x 594 x 149		1,700
M331-946-456	390 x 492 x 292	Single	1,890	145
M331-946-436	492 x 492 x 292		2,360
M331-946-450	289 x 594 x 292		1,700
M331-946-489	492 x 594 x 292		2,830
M331-946-448	594 x 594 x 292		3,400
M331-946-485	390 x 619 x 292		2,360
M331-300-402	289 x 594 x 292	Double	1,700
M331-300-403	492 x 594 x 292		2,830
M331-300-401	594 x 594 x 292		3,400
M331-025-550	289 x 594 x 292	None	1,700	120
M331-025-589	492 x 594 x 292		2,830
M331-025-548	594 x 594 x 292		3,400
F9 / MERV 15 / ePM1 80%
M331-948-455	390 x 492 x 149	Single	950	135
M331-948-435	492 x 492 x 149		1,180
M331-948-449	289 x 594 x 149		850
M331-948-488	492 x 594 x 149		1,420
M331-948-447	594 x 594 x 149		1,180
M331-948-484	390 x 619 x 149		1,150
M331-949-440	289 x 594 x 149	Double	850
M331-949-406	492 x 594 x 149		1,420
M331-949-416	594 x 594 x 149		1,700
M331-947-549	289 x 594 x 149	None	850	115
M331-947-588	492 x 594 x 149		1,420
M331-947-547	594 x 594 x 149		1,700
M331-948-456	390 x 492 x 292	Single	1,890	173
M331-948-436	492 x 492 x 292		2,360
M331-948-450	289 x 594 x 292		1,700
M331-948-489	492 x 594 x 292		2,830
M331-948-448	594 x 594 x 292		3,400
M331-948-485	390 x 619 x 292		2,360
M331-949-402	289 x 594 x 292	Double	1,700
M331-949-403	492 x 594 x 292		2,830
M331-949-401	594 x 594 x 292		3,400
M331-947-550	289 x 594 x 292	None	1,700	155
M331-947-589	492 x 594 x 292		2,830
M331-947-548	594 x 594 x 292		3,400
