VariCel RF/C & RF/C+SAAFOxi

Mã sản phẩm: (Đang cập nhật...)

Thương hiệu: AAF

Liên hệ

Đang cập nhật

Gọi ngay 0971.344.344 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận

Thông tin chi tiết

*EN779:G4
*ASHRAE 52.2:MERV 8
*Filter Depth (mm):149, 292
*Media Type:Carbon, Blended, Impregnated
*Carbon, Ion Exchange Resin
*Frame Material (Standard):Galvanised Steel
*Frame Material (Optional):Aluminium, Stainless Steel,
*Plastic (Non Header)
*Special Size Available:Yes
*Header Type:Single, Double, Non Header
*Recommended Final Resistance:250 Pa
*CTC:≥ 60 wt. %
*Target Gas:VOC, Acid, Base

Thông tin sản phẩm
Liên hệ mua hàng

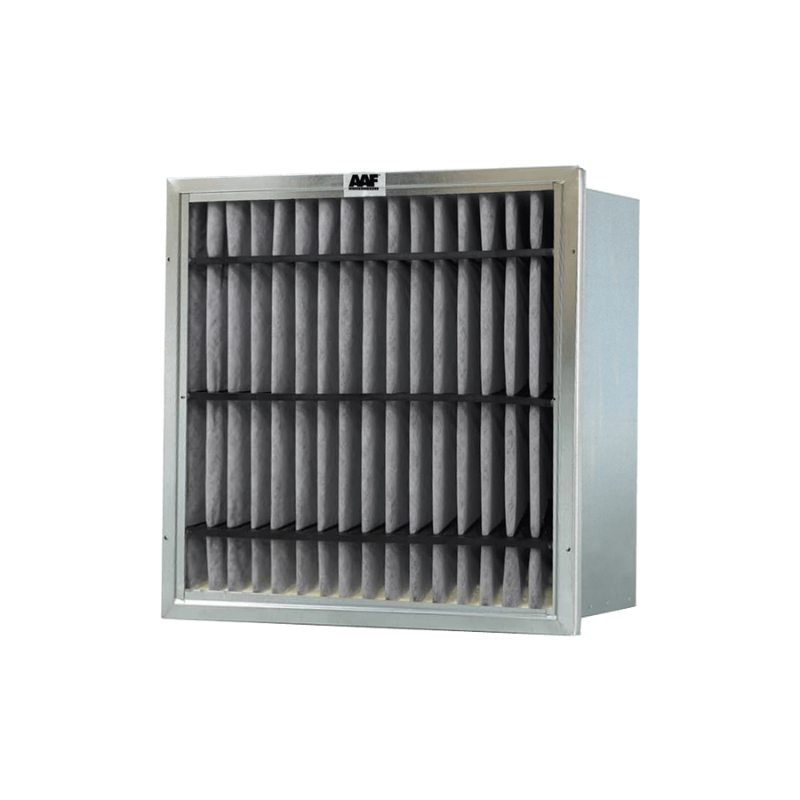

FILTER: VariCel RF/C & RF/C+SAAFOxi

Carbon (VariCel RF/C)
Blended carbon & chemical (VariCel RF/C+SAAFOxi)
Particulate and gaseous contaminant removal
MERV 8
Single, double, and no-header models
Mini carbon granules embedded in non-woven synthetic layers

Typical applications

Airports
Healthcare
Industrial plant offices and laboratories
Microelectronics

Benefits & Features

Construction

The VariCel RF/C and RF/C+SAAFOxi filters, with galvanized steel construction and plastic pleat spacers on the air entering and air leaving sides, withstand the most demanding applications. The pleat spacers maintain the shape of the synthetic media pack and ensure that both the effectiveness and service life are maximized.

The strong construction of these filters, with a supported pleat media pack, helps maintain a compact unitized structure under variable air velocities and repeated fan shutdowns. The interlocked header and cell sides, along the entire length of each side, provide maximum sealing.

Additional Features

VariCel RF/C and RF/C+SAAFOxi filters replace existing HVAC filters of the same type with no changes required for frames or latches. They are packed and sealed in individual polyethylene bags to preserve capacity and cleanliness.

Media

VariCel RF/C filters use filter media containing 60% activity granular activated carbon to remove odors and gaseous pollution. VariCel RF/C+SAAFOxi filters are made with SAAFWeb technology containing equal volumes of 60% activated carbon and AAF’s proprietary activated alumina impregnated with potassium permanganate (KMnO4) to remove odors and light gases. Either loading will provide a fresher, more odor free environment.

Specifications

EN779	G4
ASHRAE 52.2	MERV 8
Filter Depth (mm)	149, 292
Media Type	Carbon, Blended, Impregnated Carbon, Ion Exchange Resin
Frame Material (Standard)	Galvanised Steel
Frame Material (Optional)	Aluminium, Stainless Steel, Plastic (Non Header)
Special Size Available	Yes
Header Type	Single, Double, Non Header
Recommended Final Resistance	250 Pa
CTC	≥ 60 wt. %
Target Gas	VOC, Acid, Base

Product Information

Part Number	Size mm (W x H x D)	Rated Airflow (CMH)	Header Type	Rated Initial Resistance (Pa)	Media
VariCel RF/C
M420-221-001	594 x 594 x 292	3,400	DH	108	Carbon
M420-221-004	289 x 594 x 292	1,700	DH
M420-321-001	594 x 594 x 292	3,400	SH
M420-321-004	289 x 594 x 292	1,700	SH
M420-421-001	594 x 594 x 292	3,400	NH
M420-421-004	289 x 594 x 292	1,700	NH
M420-211-001	594 x 594 x 292	3,400	DH	110	VOC
M420-211-004	289 x 594 x 292	1,700	DH
M420-311-001	594 x 594 x 292	3,400	SH
M420-311-004	289 x 594 x 292	1,700	SH
M420-411-001	594 x 594 x 292	3,400	NH
M420-411-004	289 x 594 x 292	1,700	NH
VariCel RF/C+SAAFOxi
M420-241-001	594 x 594 x 292	3,400	DH	108	Blend GP
M420-241-004	289 x 594 x 292	1,700	DH
M420-341-001	594 x 594 x 292	3,400	SH
M420-341-004	289 x 594 x 292	1,700	SH
M420-441-001	594 x 594 x 292	3,400	NH
M420-411-004	289 x 594 x 292	1,700	NH
VariCel RF/C Acid
M420-231-001	594 x 594 x 292	3,400	DH	75	Acid IAC + IER Media
M420-231-004	289 x 594 x 292	1,700	DH
M420-331-001	594 x 594 x 292	3,400	SH
M420-331-004	289 x 594 x 292	1,700	SH
M420-431-001	594 x 594 x 292	3,400	NH
M420-431-004	289 x 594 x 292	1,700	NH
VariCel RF/C Base
M420-251-001	594 x 594 x 292	3,400	DH	75	NH3 IER Media
M420-251-004	289 x 594 x 292	1,700	DH
M420-351-001	594 x 594 x 292	3,400	SH
M420-351-004	289 x 594 x 292	1,700	SH
M420-451-001	594 x 594 x 292	3,400	NH
M420-451-004	289 x 594 x 292	1,700	NH

========================================================================================
