SAAFOxidant

Mã sản phẩm: M403-000-010
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*Raw Material: Chemical

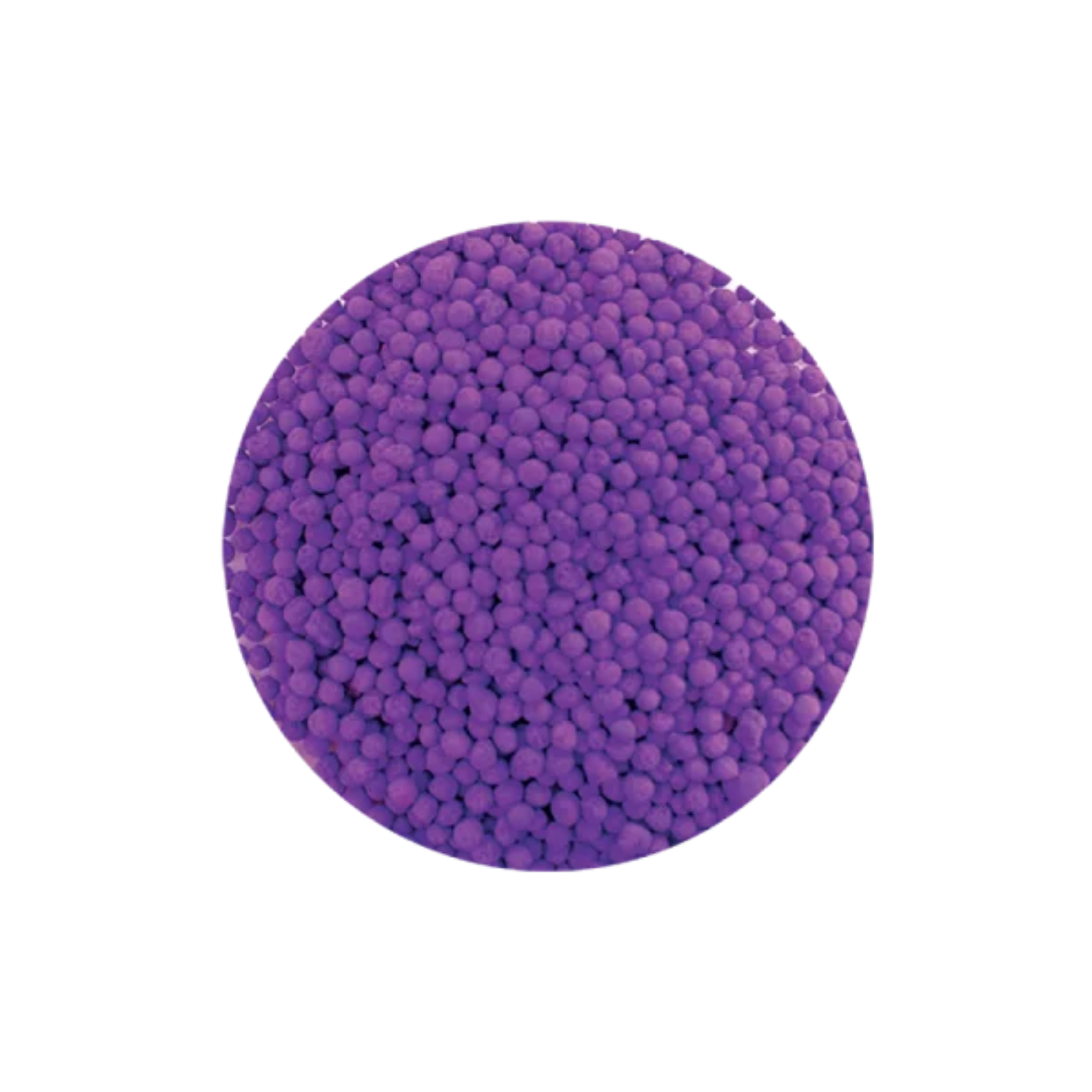

*Shape: Sphere Pellet
*Apparent Density (ASTM D2854): 0.8 g/cc (~50lb/ft3) ± 10%
*Pellet Diameter (ASTM D2862): 2.83 – 5.66 mm
*Moisture Content (ASTM D2867): ≥ 15 wt. %
*Crush Strength (AAF 392-800-002-4): ≥ 50N
*Abrasion: ≤ 4.5%
*Gas Capacity (ASTM D6646): 0.08 – 0.10G H2S/cc media
*CTC Rating (ASTM D5742): N/A
*Impregnation (AAF 392-800-002-0): ≥ 8% KMn04
*Removal Capacity: ≥ 14wt. %, H2S

MEDIA: SAAFOxidant
  • Removes and holds contaminants by chemical conversion
  • Non-flammable and non-toxic
  • Accurate service life testing
  • Does not support bacterial and fungal growth
  • Patent-pending high capacity formulation
Typical applications
  • Commercial Buildings
  • Data Centers
  • Food & Beverage
  • Healthcare
Benefits & Features
Engineered Media
SAAFOxidant engineered gas removal chemical media is designed to efficiently remove gaseous contaminants from airstreams. Manufactured as spheral, porous pellets, SAAFOxidant engineered media is composed of a combination of activated alumina, binders, and potassium permanganate. Potassium permanganate is applied uniformly during pellet formation and is distributed throughout the pellet volume to create a completely homogeneous particle. This process provides the maximum amount of impregnant for chemical reaction and optimal performance.
Chemisorption Process
The SAAFOxidant media chemisorption process removes the contaminant gases by adsorption, absorption, and chemical reaction. In this process, the gas is trapped within the pellet, where oxidation changes the gases into harmless solids and thereby mitigates the possibility of desorption.
Quality Control
There are many quality control tests which are undertaken by SAAFOxidant media. All these tests are to make sure that the physical as well as chemical properties can play its own role to achieve the performance designed for this media.
The quality control tests included:
  • Apparent Density
  • Crush Strength
  • Moisture Content
  • Pellet Diameter
  • Potassium Permanganate (KMnO4) Content
  • H2S Gas Capacity
Specifications
Raw Material
Chemical
Shape
Sphere Pellet
Apparent Density (ASTM D2854)
0.8 g/cc (~50lb/ft3) ± 10%
Pellet Diameter (ASTM D2862)
2.83 – 5.66 mm
Moisture Content (ASTM D2867)
≥ 15 wt. %
Crush Strength (AAF 392-800-002-4)
≥ 50N
Abrasion
≤ 4.5%
Gas Capacity (ASTM D6646)
0.08 – 0.10G H2S/cc media
CTC Rating (ASTM D5742)
N/A
Impregnation (AAF 392-800-002-0)
≥ 8% KMn04
Removal Capacity
≥ 14wt. %, H2S

Product Information
Part Number
Media Type
Media Weight per Box (kg / lb)
Box Volume (Cubic Meter / Cubic Feet)
M403-000-010
SAAFOxidant
22.7 / 50
0.0283 / 1
Xem thêm Thu gọn

========================================================================================
