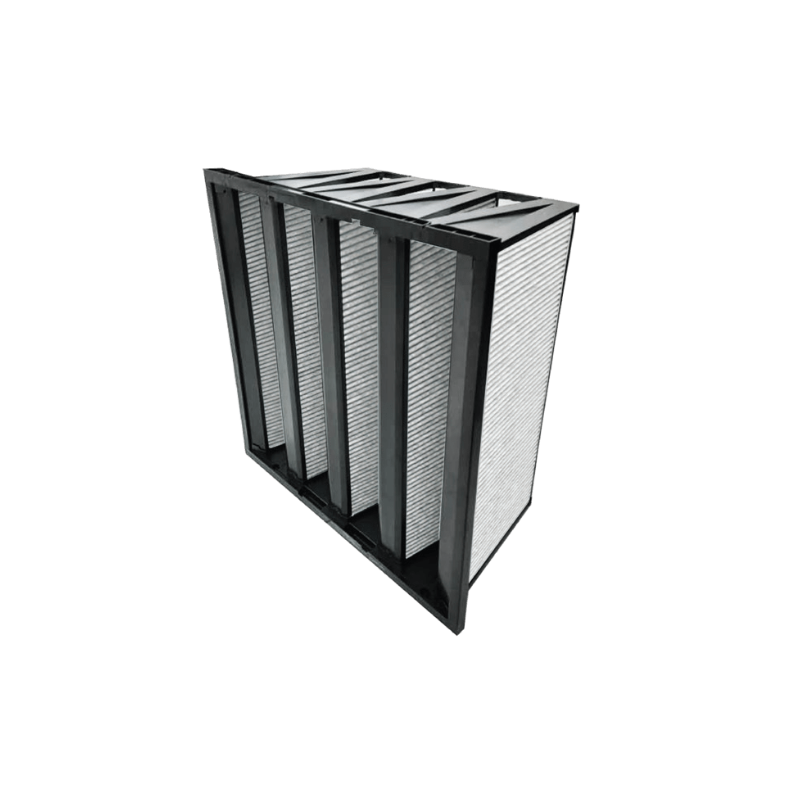

VariSorb XL SAAFCity

Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*EN779: M5
*Filter Depth (mm): 304
*Media Type: Carbon
*Frame Material: Plastic
*Special Size Available: No
*Header Type: Single Header
*Recommended Final Resistance: 375 Pa
*Max Operating Temperature: 51°C
*CTC: ≥ 60 wt. %
*Target Gas: VOC

FILTER:  VariSorb XL SAAFCity
  • Specially designed for Urban VOC’s
  • Standard dimensions
  • Sturdy construction
  • Corrosion-free, non-metal construction
  • Fully incinerable
  • Intergrated prefilter M5
  • Mini carbon granules embedded in synthetic layers
Typical applications
  • Airports
  • Healthcare
  • Industrial plant offices and laboratories
  • Microelectronics
Benefits & Features
Improve Indoor Air Quality and Odor Removal
VariSorb SAAFCity high efficiency filters are designed to remove gaseous contaminants from urban environments, both indoor (outgassing from carpets, paint, solvent and detergents) and outdoor sourced (industry and transport). This includes VOC’s, SOx, NOx, Ozone. The VariSorb SAAFCity filter is suitable for retrofitting into existing HVAC systems, for specification in new construction, or for direct replacement of 12″-deep, single header filters.

Construction
VariSorb XL SAAFCity filters consist of filter elements assembled in a V-bank configuration in high impact polystyrene (HIPS) end caps, and Acrylonitrile Butadiene Styrene (ABS) profiles for assembly in front or rear access standardized universal holding frames or side-access track systems to fit standard dimension filter sections in air handling units. VariSorb XL SAAFCity comes factory-ready for installation. No special tools are needed to install or replace the filter element. The individual VariSorb seals and holds in the frame with the latching system or in the track with its header and the track-specific gasket system. Side seals gaskets are supplied upon request.
Media
VariSorb XL SAAFCity filters are designed for combined particulate and gas-phase removal of medium and low concentrations of gas-phase contamination in urban fresh air and recirculation AHU systems. HIPS cell sides are fitted with pleated packs, comprising mini carbon granulate media embedded between two non-woven synthetic support layers. The air inlet side is provided with a layer of class M5 prefilter media. The pleat packs are arranged in a V-shape to utilize maximum amounts of media for the given face area. Each VariSorb XL SAAFCity is plastic bagged and carton packed.
Spontaneity and Yield
Unlike traditional granular bed chemical filters, the granular micro-structure ensures a much higher effective active area per kg of media, resulting in a high spontaneity of reaction. Combined with the dense packing of the micro-structure, this creates a tortuous path for the contaminant, resulting in a high yield for the filter. The construction greatly reduces pressure drop, eliminates by-pass and abrasion. The entire VariSorb XL SAAFCity can easily be disposed-off and is fully incinerated. Always follow the local, state or federal regulations for disposal.
Specifications
EN779
M5
Filter Depth (mm)
304
Media Type
Carbon
Frame Material
Plastic
Special Size Available
No
Header Type
Single Header
Recommended Final Resistance
375 Pa
Max Operating Temperature
51°C
CTC
≥ 60 wt. %
Target Gas
VOC

Product Information
Part Number
Size (mm) (W x H x D)
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
M408-111-003N
592 x 287 x 304
1,700
106
M408-111-002N
592 x 490 x 304
2,800
M408-111-001N
592 x 592 x 304
3,400
