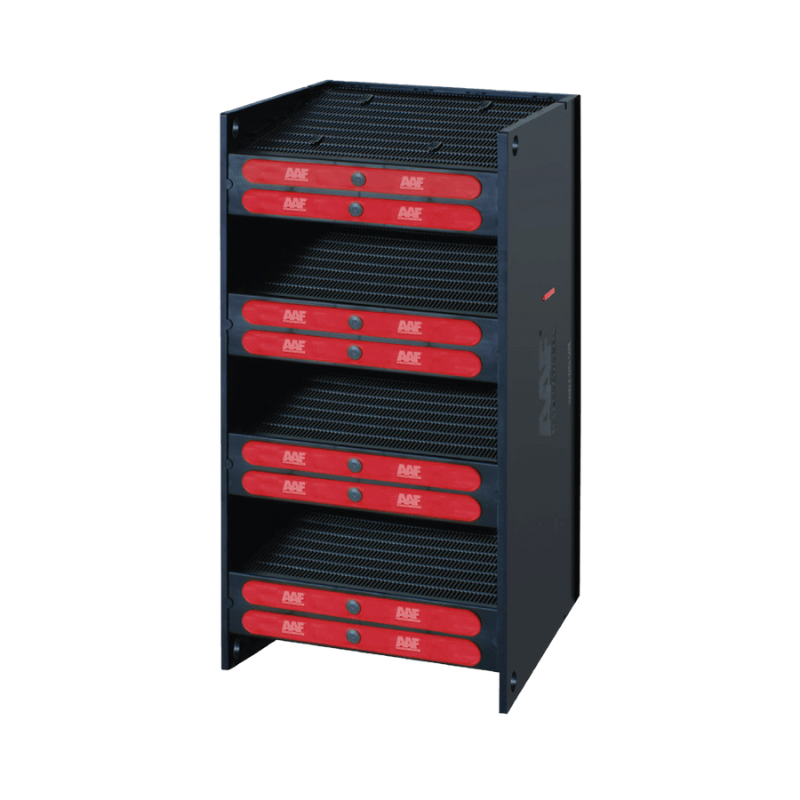

SAAF Cassette Cleanroom Grade

Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*Filter Depth (mm): 295
*Chemical Bed Depth (mm): 25
*Media Type: Carbon, Impregnated Carbon,Chemical, Blended
*Frame Material: Plastic

MODULES & CANISTERS: SAAF Cassette Cleanroom Grade
  • More energy-efficient than any other competitive cassette
  • Designed for full media utilization
  • Improves fit and sealing integrity in any cassette holding system
  • Glue-free design eliminates off-gassing, bypass and leakage
  • Multiple patents pending
Typical applications
  • Commercial Building
  • Data Centres
  • Food and Beverage
  • Healthcare
Benefits & Features
Energy-Efficient
The optimized apertures of the SAAF-T-screens allow for better energy efficiency through improved aerodynamics and reduced pressure drop.
High-Performance Media Utilization
The patent-pending enhanced media utilization design eliminates the “nose cavity” typically created by legacy cassettes. Nose cavities “cocoon” up to 30% of the chemical media, keeping it isolated from airflow contact at all times during the life of the cassette. SAAF Cassettes are the only cassettes that utilize 92% of all chemical media in the cassette – outperforming legacy cassettes by 25%.
Robust Design
Patent-pending design provides a high-pressure, no-glue snap assembly. This rigid construction excludes harmful glues, solvents, or MEK’s from the manufacturing process, allowing for better structural integrity and eliminating gas by-pass problems.
Excellent Sealing
The design of the SAAF-T-Butterfly Seal and SAAF-T-Groove provides near absolute sealing by using a compression fit to eliminate by-pass. Patent-pending plastic rivets secure the solid fill caps at multiple points, protecting against bursts or leaks in normal usage. Older legacy cassettes use stickers, labels, or low-friction end caps that have high instances of failure and chemical media spillage. Smooth mating end panels with no penetrations or outward turned flanges allow excellent cassette-to-cassette sealing.
Specifications
Filter Depth (mm)
295
Chemical Bed Depth (mm)
25
Media Type
Carbon, Impregnated Carbon,Chemical, Blended
Frame Material
Plastic

Product Information
Part Number
Size (mm) (W x H x D)
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
Media Type
Media Weight (kg/lb)
M400-024-002N
595 x 295 x 295
1,700
140
SAAFCarb
10.1 / 22
M400-024-003N
595 x 295 x 295
SAAFCarb MA
12.5 / 28
M400-024-004N
595 x 295 x 295
SAAFCarb MB
12.9 / 28
M400-024-010N
595 x 295 x 295
118
SAAFOxidant
15.5 / 34
M400-024-012N
595 x 295 x 295
143
SAAFBlend GP
12.8 / 28
M400-024-013N
595 x 295 x 295
SAAFBlend WS
12.8 / 28
