SAAFCanister

Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật
Khuyến mại - Ưu đãi

Zalo tư vấn & báo giá: 0971.344.344 Sao chép mã

Điện thoại tư vấn & báo giá Miền Nam: 0827.077.078 Sao chép mã

Điện thoại tư vấn & báo giá Miền Bắc: 0829.077.078 Sao chép mã

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*Plastic Filter Depth (mm): 450, 600
*Metal Filter Depth (mm): 452,600
*Media Type: Carbon, Impregnated Carbon, Chemical, Blended
*Frame Material (Standard): Plastic, Galvanised Steel
*Frame Material (Optional): Stainless Steel

MODULES & CANISTERS: SAAFCanister
  • Ease of use
  • Available in metal and plastic
  • Standard dimensions
  • Optional prefilled with user-specific chemical media
More Features
  • Unique bayonet-style clamping mechanism, no special tools needed for canister installation and media replacement
  • Corrosion free: stainless steel metal part
  • Media refillable option compare to competitors
  • Lightweight
  • Optional inner and outer mesh to reduce the media dust
  • Standard dimensions, direct interchange is possible
Typical applications
  • Commercial Building
  • Data Centres
  • Healthcare
  • Museums & Historic Storage
  • Schools & Universities
Benefits & Features
Canisters

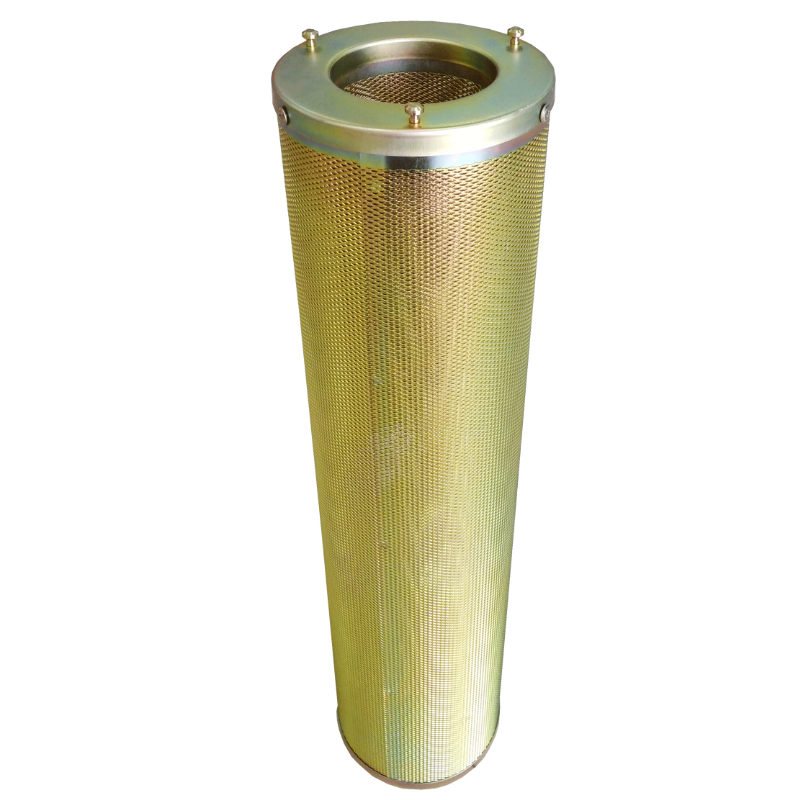

The SAAFCanister Delivery System is factory pre-filled with user-specific chemical media. Each canister is vibration filled to ensure that the media is uniformly packed, then bagged and carton packed.
Construction

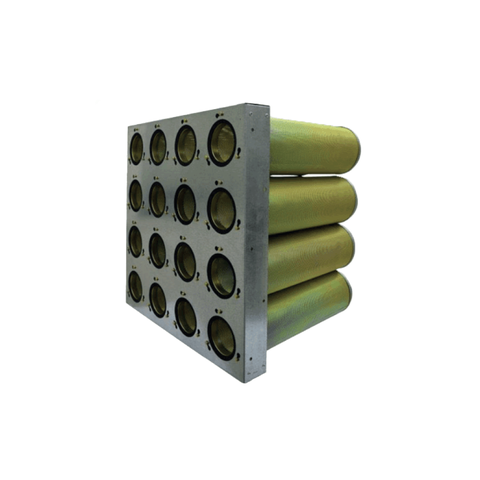

The SAAFCanister Delivery System consists of multiple individual canisters in metal or plastic execution, assembled into a galvanised sheet metal holding frame to fit standard dimension filter sections in air handling units. The SAAFCanister system comes factory-ready for installation. No special tools are needed to replace a canister. The individual canister seals and holds in the frame, due to its unique seal and bayonet-style clamping mechanism.
Choice of Construction Materials
There are few ranges of construction materials available for the canisters, including stainless steel, and galvanised steel. Metal canisters need to be emptied before refilling for new media. Disposal of used media follows the local regulations.
Choice of Media
The SAAFCanister Delivery System can be filled with a wide range of chemical media, as well as custom blends. These include standard SAAFCarb media or impregnated SAAFCarb media, SAAFOxidant media, and SAAFBlend GP media.
Application Guide
Always use adequate prefiltration to avoid dust settling on the chemical media. This ensures an optimised lifetime for the chemical filter system without an increase in pressure drop. The prefilter should be a compact, pleated, or mini-pleated filter cell.
Additional Features
Each SAAFCanister is packed and sealed in individual polyethylene bags to preserve capacity and cleanliness.
Specifications
Plastic Filter Depth (mm)
450, 600
Metal Filter Depth (mm)
452,600
Media Type
Carbon, Impregnated Carbon,
Chemical, Blended
Frame Material (Standard)
Plastic, Galvanised Steel
Frame Material (Optional)
Stainless Steel

Product Information
Part Number
Size (mm)
Volume (m3)
Frame Material
Media Weight (kg / lb)
Media Type
M960-331-023
⌀145 x 450
0.0044
Plastic
2.4 / 5
SAAFCarb
M960-332-023
⌀145 x 450
0.0044
Plastic
3.0 / 7
SAAFCarb MA
M960-333-023
⌀145 x 450
0.0044
Plastic
3.1 / 7
SAAFCarb MB
M960-334-023
⌀145 x 450
0.0044
Plastic
3.7 / 8
SAAFOxidant
M960-335-023
⌀145 x 450
0.0044
Plastic
3.1 / 7
SAAFBlend GP
M960-331-021
⌀145 x 600
0.0059
Plastic
3.2 / 7
SAAFCarb
M960-332-021
⌀145 x 600
0.0059
Plastic
4.0 / 9
SAAFCarb MA
M960-333-021
⌀145 x 600
0.0059
Plastic
4.1 / 9
SAAFCarb MB
M960-334-021
⌀145 x 600
0.0059
Plastic
4.9 / 11
SAAFOxidant
M960-335-021
⌀145 x 600
0.0059
Plastic
4.1 / 9
SAAFBlend GP
M960-201-012
⌀145 x 452
0.0044
Galvanised Steel
2.4 / 5
SAAFCarb
M960-202-012
⌀145 x 452
0.0044
Galvanised Steel
3.0 / 7
SAAFCarb MA
M960-203-012
⌀145 x 452
0.0044
Galvanised Steel
3.1 / 7
SAAFCarb MB
M960-204-012
⌀145 x 452
0.0044
Galvanised Steel
3.7 / 8
SAAFOxidant
M960-205-012
⌀145 x 452
0.0044
Galvanised Steel
3.1 / 7
SAAFBlend GP
M960-201-011
⌀145 x 600
0.0059
Galvanised Steel
3.2 / 7
SAAFCarb
M960-202-011
⌀145 x 600
0.0059
Galvanised Steel
4.0 / 9
SAAFCarb MA
M960-203-011
⌀145 x 600
0.0059
Galvanised Steel
4.1 / 9
SAAFCarb MB
M960-204-011
⌀145 x 600
0.0059
Galvanised Steel
4.9 / 11
SAAFOxidant
M960-205-011
⌀145 x 600
0.0059
Galvanised Steel
4.1 / 9
SAAFBlend GP
