Thông tin chi tiết

*Filter Depth (mm):50 - 100
*Media Type:Carbon, Impregnated Carbon, Ion Exchange Resin
*Frame Material:Aluminium, Galvanised Steel, Stainless Steel
*Gasket Sealant:EPDM, PU
*Special Size Available:Yes
*Header Type:None Header
*Target Gas:VOC, Acid, Base
*Recommended Operating Temperature:10 - 40°C
*Recommended Relative Humidity:30 - 70%

Thông tin sản phẩm
Liên hệ mua hàng

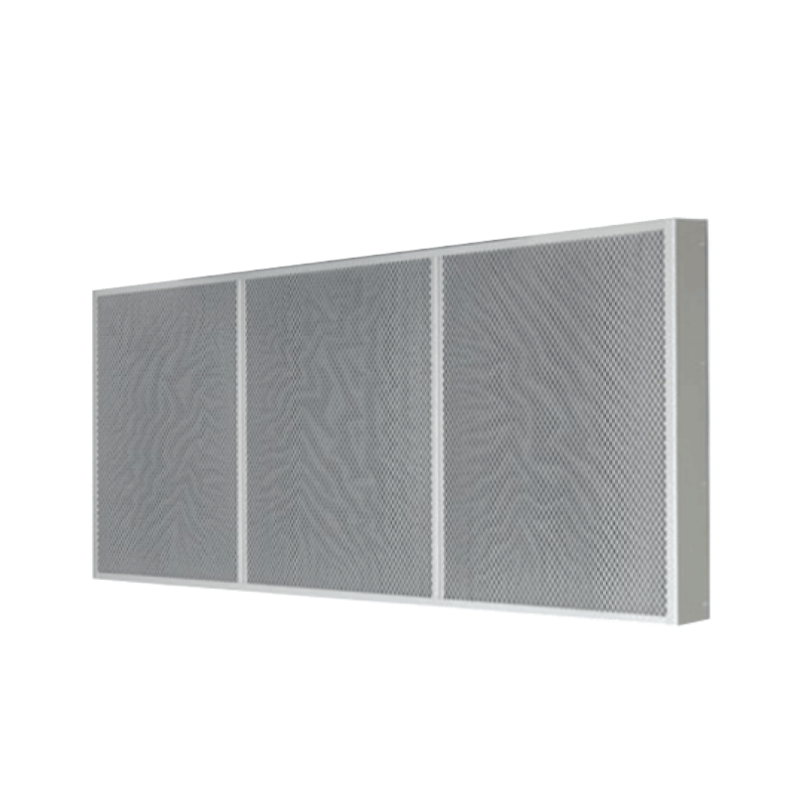

FILTER: VariSorb CE

Suitable for cleanroom environment
Multi-layer pleated media for single or multiple gases
High adsorption capacity and high removal efficiency
No dust and no out-gassing properties
Easy to install
Energy efficient
Low pressure drop
ISO Class 6 Cleanliness Class
Mini carbon granules embedded between two non-woven synthetic layers

Typical applications

Microelectronics component assembly
TFT/LCD manufacturing
LTPS OLED manufacturing
Wafer manufacturing

Benefits & Features

Excellent Performance

VariSorb CE is the ultimate solution for terminal Airborne Molecular Contaminants (AMC) filtration for cleanroom. It is generally used together with Fan Filter Unit (FFU), Equipment Fan Filter Unit (EFU), and other equipment to reduce the concentration of AMC by creating a desired environment meeting the process requirements. It is also used to protect the process and products against the influence of molecular contaminants. VariSorb CE has excellent removal efficiency even under low concentration conditions to offer a micro-environment of ppb level.

Construction

VariSorb CE chemical filter, with metal cell side providing a sturdy construction and is suitable for convenient and flexible installation either above or below FFU/EFU. The filter construction is out-gassing free to ensure cleanroom environment requirements are met.

Media

VariSorb CE chemical filter features a multi-layer pleated media comprise of very high activity carbon, impregnated carbon or ion exchange resin (IER) sandwiched between non-woven synthetic layers. The filter material is finer and smaller for better AMC contact process offering faster removal process. Media layer can be composed of 1-3 layers of the same/different media for better efficiency. The multi-layer media design allows various chemical media used for removal of multiple gases in a single filter.

Specifications

Filter Depth (mm)	50 - 100
Media Type	Carbon, Impregnated Carbon, Ion Exchange Resin
Frame Material	Aluminium, Galvanised Steel, Stainless Steel
Gasket Sealant	EPDM, PU
Special Size Available	Yes
Header Type	None Header
Target Gas	VOC, Acid, Base
Recommended Operating Temperature	10 - 40°C
Recommended Relative Humidity	30 - 70%
