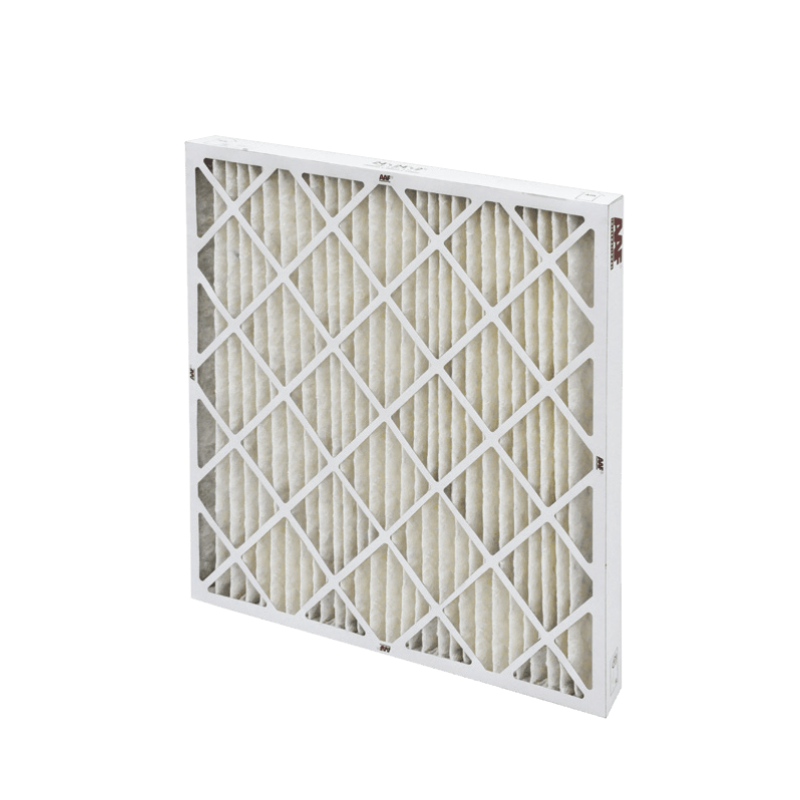

PANEL & PLEATED FILTER: AmAir
-
Excellent as a pre-filter
-
Disposable pleated filter
-
Wide selection range
-
High loft media increases dust holding capacity
-
Expanded metal support grid increases the stability of the pleat pack
Typical applications
-
Commercial Building
-
Biopharmaceutical
-
Healthcare
-
Laboratory
-
Industrial
Benefits & Features
High Performing, Environmentally Friendly Media
High Performing, Environmentally Friendly Media
-
With the new AmAir 100 series of prefilters, AAF has risen to the challenge of designing an environmentally friendly product, combined with necessary performance characteristics.
-
These filters feature a new 100% synthetic media pack that provides excellent performance in high relative humidity and moisture. When this media becomes wet, resistance may rise temporarily, subsiding when the media starts to dry.
-
This synthetic media displays great tensile strength, reducing the chance of damage during handling and operation. This media is also environmentally and user friendly: it does not contain any harsh resins or artificial coloring. It can therefore be readily disposed of by landfill or incineration.
Sturdy, Reliable Construction
-
The pleated media pack of both ranges of filters is housed within a sturdy double-walled, die-cut box, beverage board frame. To ensure the media pack does not rack or deteriorate under difficult operating conditions, it is bonded to the inside of its frame at all points of contact and retained in position by retainers at the air leaving and air entering sides.
-
On the air leaving side of the media pack, a wire mesh pleat support grid maintains equidistant spacing between pleats, ensuring that dust is collected evenly over the entire surface of the media. Media usage is maximized, resulting in a more gradual rise in resistance, which in turn has a positive effect on energy consumption and service life.
High Dust Holding Capacity
-
High loft media which is specially blended from non-woven cotton and synthetic fibre. Having the contoured pleat shape to allow air to pass freely, uniform dust collection over the entire media area. The unique design not only maximizes full media usage, results in a more gradual increase in resistance and high dust holding capacity.
Applications
-
Classified G4 (EN779), the AmAir 100 filters are ideal for protecting more expensive secondary air filters from premature dust loading and replacement. As primary filters, they also help reduce HVAC maintenance costs by preventing unnecessary dust build-up on coils, fans, and ductwork.
Specifications
EN779 |
G4 |
ASHRAE 52.2 |
MERV 7 |
ISO 16890 |
Coarse 70% |
Filter Depth (mm) |
22 , 44 , 95 |
Media Type |
Non-Woven Cotton Synthetic Blend |
Frame Material |
Moisture Resistant Beverage Board |
Special Size Available |
Yes |
Antimicrobial Available |
Optional |
Recomm. Final Resistance |
250Pa |
Max. Operating Temperature |
93˚C |
Air Filtration Certificate |
UL 900 |
Product Infomartion
Part Number |
Media |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
22 mm |
||||
M142-201-500 |
100E |
391 x 492 x 22 |
1,890 |
102 |
M142-201-700 |
492 x 492 x 22 |
2,360 |
||
M142-201-319 |
289 x 594 x 22 |
1,700 |
||
M142-201-782 |
492 x 594 x 22 |
2,830 |
||
M142-201-863 |
594 x 594 x 22 |
3,400 |
||
M142-201-600 |
391 x 619 x 22 |
2,360 |
||
44 mm |
||||
M142-202-500 |
100E |
391 x 492 x 44 |
1,890 |
65 |
M142-202-700 |
492 x 492 x 44 |
2,360 |
||
M142-202-319 |
289 x 594 x 44 |
1,700 |
||
M142-202-782 |
492 x 594 x 44 |
2,830 |
||
M142-202-863 |
594 x 594 x 44 |
3,400 |
||
M142-202-600 |
391 x 619 x 44 |
2,360 |
||
95 mm |
||||
M142-204-500 |
100E |
391 x 492 x 95 |
1,890 |
50 |
M142-204-700 |
492 x 492 x 95 |
2,360 |
||
M142-204-319 |
289 x 594 x 95 |
1,700 |
||
M142-204-782 |
492 x 594 x 95 |
2,830 |
||
M142-204-863 |
594 x 594 x 95 |
3,400 |
||
M142-204-600 |
391 x 619 x 95 |
2,360 |
||
22 mm |
||||
M146-201-500 |
200E |
391 x 492 x 22 |
1,890 |
98 |
M146-201-700 |
492 x 492 x 22 |
2,360 |
||
M146-201-319 |
289 x 594 x 22 |
1,700 |
||
M146-201-782 |
492 x 594 x 22 |
2,830 |
||
M146-201-863 |
594 x 594 x 22 |
3,400 |
||
M146-201-600 |
391 x 619 x 22 |
2,360 |
||
44 mm |
||||
M146-202-500 |
200E |
391 x 492 x 44 |
1,890 |
59 |
M146-202-700 |
492 x 492 x 44 |
2,360 |
||
M146-202-319 |
289 x 594 x 44 |
1,700 |
||
M146-202-782 |
492 x 594 x 44 |
2,830 |
||
M146-202-863 |
594 x 594 x 44 |
3,400 |
||
M146-202-600 |
391 x 619 x 44 |
2,360 |
||
95 mm |
||||
M146-204-500 |
200E |
391 x 492 x 95 |
1,890 |
45 |
M146-204-700 |
492 x 492 x 95 |
2,360 |
||
M146-204-319 |
289 x 594 x 95 |
1,700 |
||
M146-204-782 |
492 x 594 x 95 |
2,830 |
||
M146-204-863 |
594 x 594 x 95 |
3,400 |
||
M146-204-600 |
391 x 619 x 95 |
2,360 |
||
22 mm |
||||
M140-201-500 |
300E |
391 x 492 x 22 |
1,890 |
95 |
M140-201-700 |
492 x 492 x 22 |
2,360 |
||
M140-201-319 |
289 x 594 x 22 |
1,700 |
||
M140-201-782 |
492 x 594 x 22 |
2,830 |
||
M140-201-863 |
594 x 594 x 22 |
3,400 |
||
M140-201-600 |
391 x 619 x 22 |
2,360 |
||
44 mm |
||||
M140-202-500 |
300E |
391 x 492 x 44 |
1,890 |
58 |
M140-202-700 |
492 x 492 x 44 |
2,360 |
||
M140-202-319 |
289 x 594 x 44 |
1,700 |
||
M140-202-782 |
492 x 594 x 44 |
2,830 |
||
M140-202-863 |
594 x 594 x 44 |
3,400 |
||
M140-202-600 |
391 x 619 x 44 |
2,360 |
||
95 mm |
||||
M140-204-500 |
300E |
391 x 492 x 95 |
1,890 |
40 |
M140-204-700 |
492 x 492 x 95 |
2,360 |
||
M140-204-319 |
289 x 594 x 95 |
1,700 |
||
M140-204-782 |
492 x 594 x 95 |
2,830 |
||
M140-204-863 |
594 x 594 x 95 |
3,400 |
||
M140-204-600 |
391 x 619 x 95 |
2,360 |
