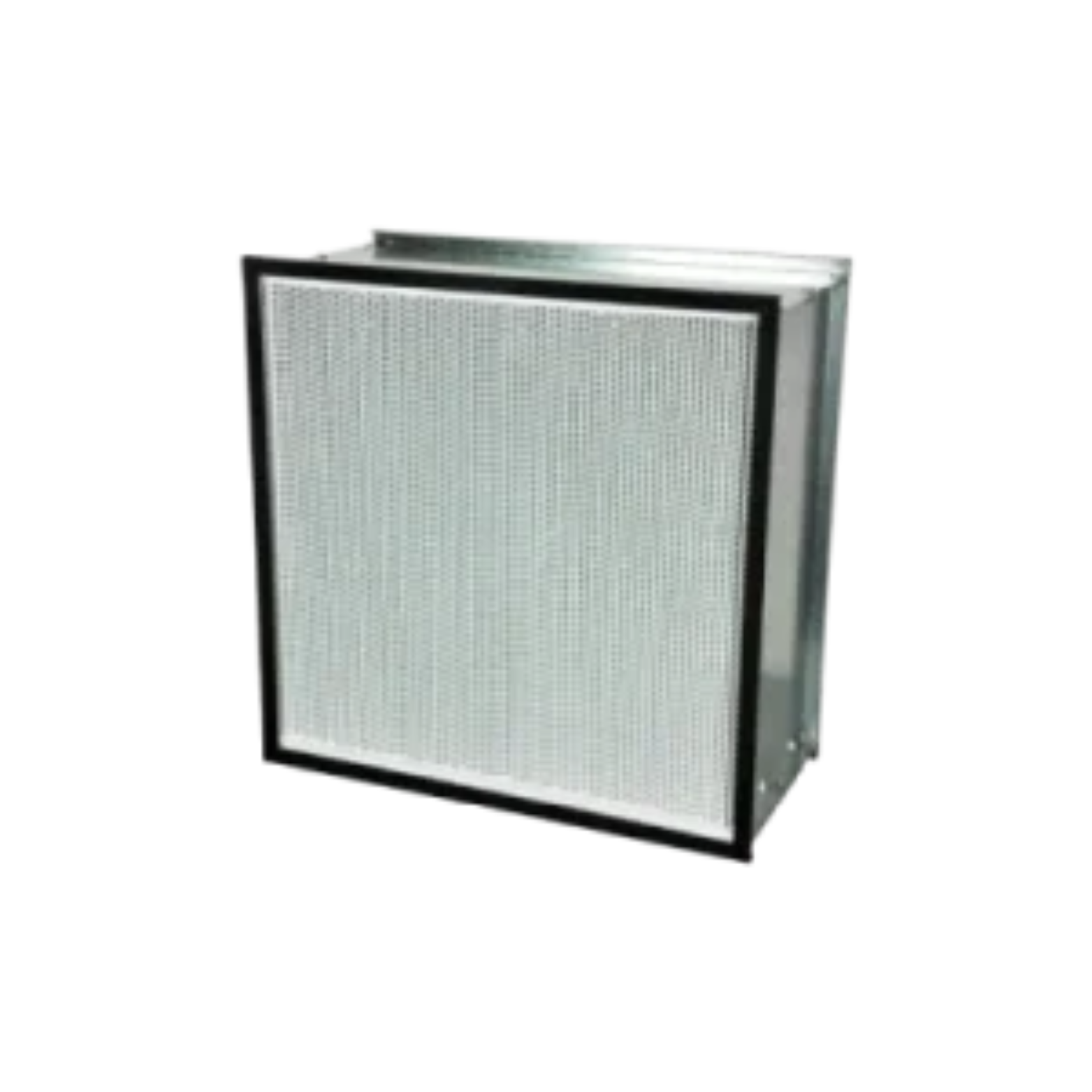

HEPA & ULPA FILTERS: AstroCel I S+
  • HEPA grade air filtration media with superior strength and antimicrobial properties
  • The filter media performance was tested against bacteria and virus
  • Lowest possible pressure drop without compromising antimicrobial properties
  • Made of fibreglass media immobilized with antimicrobial agents to combat harmful microorganisms
  • New innovation media not only traps small particles, but also minimizes the number of microbes by inhibiting their growth and reproduction
Typical applications
  • Automotive
  • Commercial Buildings
  • Data Centers
  • Food and Beverage
Benefits & Features
Life-Long Antimicrobial Filters
  • The filter media with antimicrobial properties not only traps small particles, it also minimizes the number of microbes by inhibiting their growth and reproduction. The antimicrobial agent applied is not consumed while combating microorganisms.
Anti-COVID-19, Antiviral & Antibacterial Properties
  • The AstroCel S+ product is being designed and manufactured using the newly developed innovative media named S+, and it can handle harsh operating conditions where a high risk of particles, viruses, and bacteria is present. The S+ media has proven its capability and efficiency, supported by the following tests done under the reference standard of ISO 18184:2019: against Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2), Influenza A Virus (H1N1) pandemic (Human Isolated), and Human Coronavirus 229E (ATCC VR-740), conducted by a third party lab. The efficacy against SARS-CoV-2 achieved 99.85%, H1N1 achieved 99.93%, and against Human coronavirus 229E achieved 99.92%. The S+ media also underwent antimicrobial test of Staphylococcus aureus (ATCC6538) and Escherichia coli (ATCC 25922), which both achieved 100% efficacy.
Performance & Applications
  • AstroCel S+ filters are available in a variety of efficiencies, including 99.95% and 99.995% on MPPS. Each AstroCel S+ is individually tested and carefully packed before sending to our customers. AstroCel S+ HEPA filters are used primarily in cleanrooms and clean zones, which require the highest levels of contamination control. Corrugated sheets of aluminium or hot melt separate the pleats to permit maximum usage at minimum resistance. Gasketing is available on the upstream, downstream, or both sides
Specifications
EN1822
H13, H14
Filter Depth (mm)
149, 292
Media Type
Fibreglass
Frame Material (Standard)
Galvanised Steel
Frame Material (Optional)
Aluminum, Stainless Steel Plywood, Particle Board
Separator Style
Aluminum
Gasket Material (Standard)
Neoprene
Gasket Material (Optional)
PU, EPDM, PU Gel
Gasket Position (Standard)
Downstream
Gasket Position (Optional)
Upstream, Both Sides
Faceguard
Optional
Special Size Available
Yes
Antimicrobial Available
No
Header Type
None Header
Recommended Final Resistance
750 Pa
Max Operating Temperature
90º C
Air Filtration Certification
UL 900

Product Information
Part Number
Size (WxHxD)mm
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
AstroCel I S+ (H13)
MA566-203-004
610 x 305 x 149
425
250
MA566-203-005
610 x 610 x 149
850
MA566-205-004
610 x 305 x 292
850
MA566-205-005
610 x 610 x 292
1,700
AstroCel I S+ (H14)
MA563-203-004
610 x 305 x 149
425
260
MA563-203-005
610 x 610 x 149
850
MA563-205-004
610 x 305 x 292
850
MA563-205-005
610 x 610 x 292
1,700
AstroCel I S+ HC (H13)
MA556-203-004
610 x 305 x 149
850
360
MA556-203-005
610 x 610 x 149
1,700
MA556-205-004
610 x 305 x 292
1,700
MA556-205-005
610 x 610 x 292
3,400
