AstroCel III

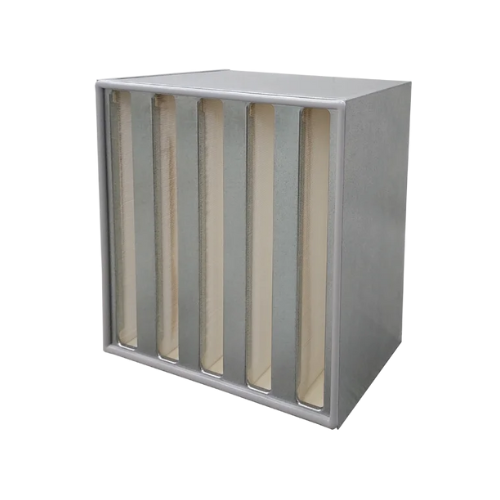

Multiple mini-pleat media packs, assembled into a series of V-banks, permit substantially more media to be contained in the filter — double the media typically found in most HEPA filters. Maximum effective media area provides greater airflow capacity, low resistance, high dust holding capacity, and unusually long service life. The V-bank configuration provides greater airflow capacity and longer service life, while lowering operating costs.

AstroCel III filter media is made from sub-micron glass fibers formed into a high-density paper. Glass filament separators are used to form the media into mini-pleat panels that withstand high-velocity airflow. The V-bank configuration optimizes media performance for high airflow at very low resistance. Mini-pleat packs are sealed to the frame with two-component polyurethane to increase rigidity and prevent bypass leakage. Construction-extruded aluminum frame components resist chemical corrosion, provide high strength, and are lighter. Cell sides are made from a single extrusion to maximize construction integrity. A gasket seal frame is also available with galvanized sheet-metal cell sides.

AstroCel III HEPA filters are ideal for applications operating with higher airflows, up to 600 FPM, and requiring ultra-low pressure drop:

Semiconductor and electronics manufacturing

Pharmaceutical processing

Photo-film manufacturing/processing

Hospitals, laboratories, and optical facilities

Food processing
