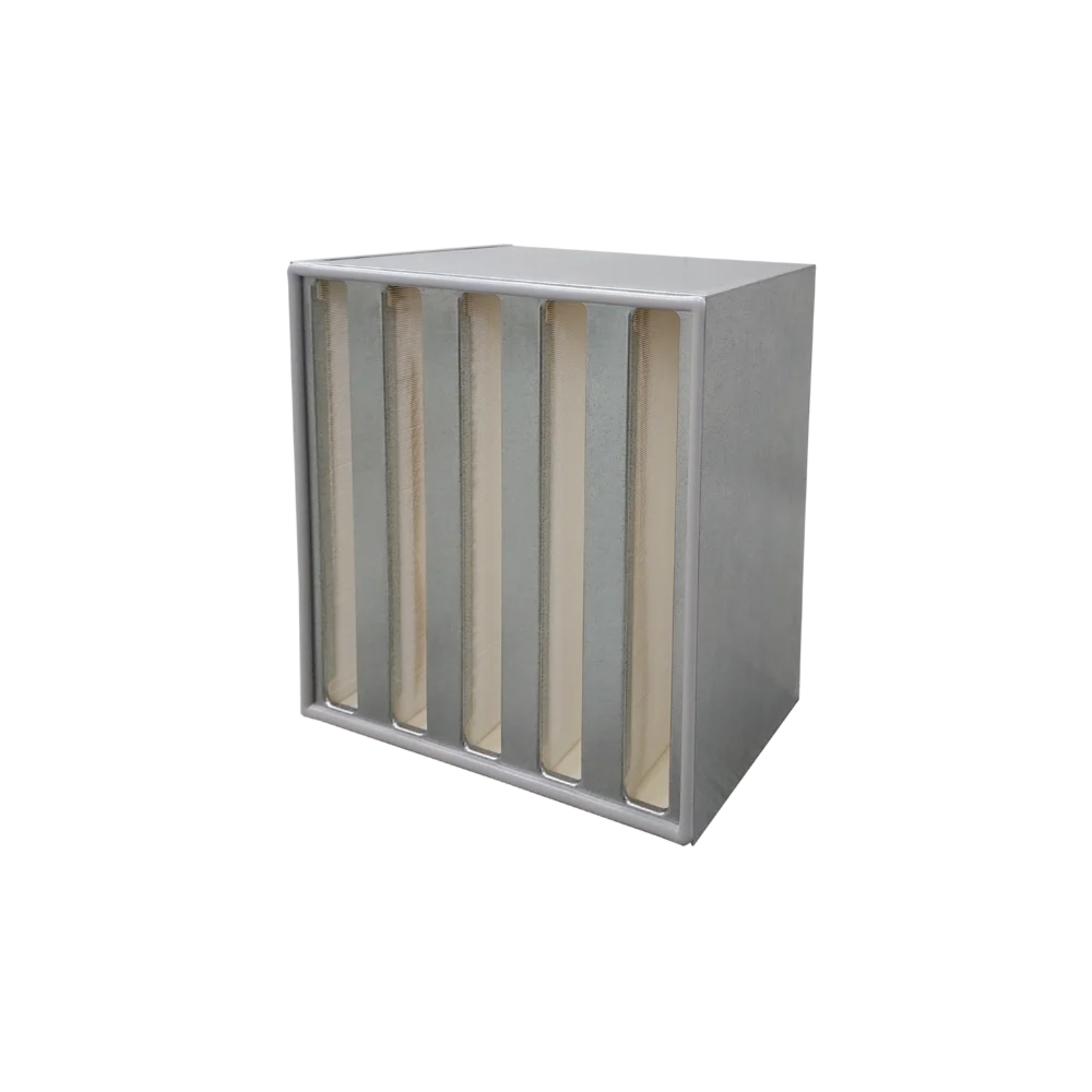

AstroCel III S+

• HEPA grade air filtration media with superior strength and antimicrobial properties
• The filter media performance was tested against bacteria and virus
• Lowest possible pressure drop without compromising antimicrobial properties
• Made of fibreglass media immobilized with antimicrobial agents to combat harmful microorganisms
• New innovation media not only traps small particles, but also minimizes the number of microbes by inhibiting their growth and reproduction

• Commercial Buildings
• Data Centers
• Food and Beverage
• Healthcare

• Multiple mini-pleat media packs, assembled into a series of V-banks, permit substantially more media to be contained in the filter — double the media typically found in most HEPA filters.
• Maximum effective media area provides greater airflow capacity, low resistance, high dust holding capacity, and unusually long service life.
• The V-bank configuration provides greater airflow capacity and longer service life, while lowering operating costs.

• AstroCel III filter media is made from sub-micron glass fibers formed into a high-density paper.
• Glass filament separators are used to form the media into mini-pleat panels that withstand high-velocity airflow.
• The V-bank configuration optimizes media performance for high airflow at very low resistance.
• Mini-pleat packs are sealed to the frame with two-component polyurethane to increase rigidity and prevent bypass leakage.
• Construction-extruded aluminum frame components resist chemical corrosion, provide high strength, and are lighter.
• Cell sides are made from a single extrusion to maximize construction integrity. A gasket seal frame is also available with galvanized sheet-metal cell sides.

AstroCel III HEPA filters are ideal for applications operating with higher airflows, up to 600 FPM, and requiring ultra-low pressure drop:

• Semiconductor and electronics manufacturing
• Pharmaceutical processing
• Photo-film manufacturing/processing
• Hospitals, laboratories, and optical facilities
• Food processing
