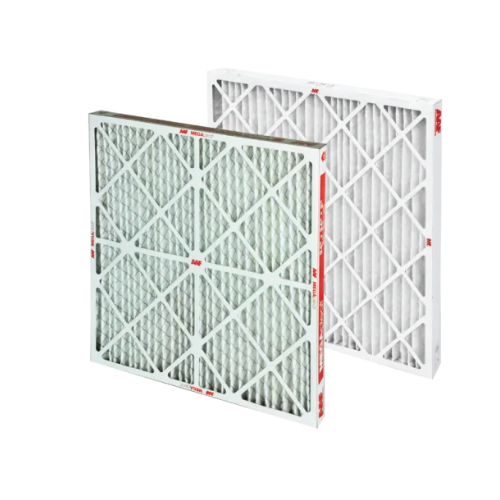

MEGApleat M13/SC
PANEL & PLEATED FILTER: MEGApleat M8/SC
-
Excellent as a pre-filter
-
Low operating resistance saves energy
-
Highest dust holding capacity
-
Strongest construction
-
Guaranteed consistent performance
-
Patent-pending filter design
-
Heavy-duty, galvanised expanded metal support grid
-
Also available is the most cost-effective variant
Typical applications
-
Commercial Building
-
Food & Beverage
-
Healthcare
-
Hospitality
-
Microelectronics
-
Pharmaceutical
Benefits & Features
The New Standard in Premium Pleated Filters
The longest lasting MERV 8 pleated panel filter in the market is the MEGApleat M8 filter. Manufactured with a heavy-duty, galvanized expanded metal support grid and moisture-resistant adhesive, the MEGApleat M8 filter is the strongest MERV 8 pleated filter available. The MEGApleat M8 filter’s low initial resistance requires less energy consumption, resulting in lower operating costs and energy savings.
High Dust Holding Capacity and Low Operating Resistance
Uniform size virgin fibers are assembled in closely controlled blends to create a media that is consistent in performance. MEGApleat M8 filters promote maximum airflow and dust holding capacity (DHC). MEGApleat M8 filters load at a slower rate, increasing the life of the filter. Lower pressure drop and higher DHC translate to reductions in energy consumption and operating costs. MEGApleat M8 filters are rated MERV 8.
High Dust Holding Capacity and Low Operating Resistance
Uniform size virgin fibers are assembled in closely controlled blends to create a media that is consistent in performance. MEGApleat M8 filters promote maximum airflow and dust holding capacity (DHC). MEGApleat M8 filters load at a slower rate, increasing the life of the filter. Lower pressure drop and higher DHC translate to reductions in energy consumption and operating costs. MEGApleat M8 filters are rated MERV 8.
Certified Performance – Insist on Independent Testing
With the MEGApleat M8 filter, MERV 8 classification is documented with test results from an independent, third-party test laboratory. Your sales representative has the results for you to review whenever you would like. The MEGApleat M8 filter gives you the performance our competitors promise but don’t deliver.
AAF Guarantee
Unlike other MERV 8 filters where there is significant performance variability from filter to filter, the MEGApleat M8 filter is designed for performance consistency. AAF is so confident about the performance, we guarantee the MEGApleat M8 filter to last longer, be stronger, be more cost-efficient than any competitor’s MERV 8 pleated filter, and perform to MERV 8 standards throughout the filter life.
Specification
|
EN779 |
G4 |
|
ASHRAE 52.2 |
MERV 8 |
|
ISO 16890 |
Coarse 60% |
|
Filter Depth (mm) |
22,44,95 |
|
Media Type |
Synthetic |
|
Frame Material |
Moisture Resistant Beverage Board |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
Optional |
|
Recomm. Final Resistance |
250 Pa |
|
Max Operating Temperature |
93º C |
|
Air Filtration Certificate |
UL 900 |
Product Information
|
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
22 mm |
|||
|
M148-801-500 |
391 x 492 x 22 |
1,890 |
115 |
|
M148-801-700 |
492 x 492 x 22 |
2,360 |
|
|
M148-801-319 |
289 x 594 x 22 |
1,700 |
|
|
M148-801-782 |
492 x 594 x 22 |
2,830 |
|
|
M148-801-863 |
594 x 594 x 22 |
3,400 |
|
|
44 mm |
|||
|
M148-802-500 |
391 x 492 x 44 |
1,890 |
67 |
|
M148-802-700 |
492 x 492 x 44 |
2,360 |
|
|
M148-802-319 |
289 x 594 x 44 |
1,700 |
|
|
M148-802-782 |
492 x 594 x 44 |
2,830 |
|
|
M148-802-863 |
594 x 594 x 44 |
3,400 |
|
|
44 mm SC* |
|||
|
M248-802-319 |
289 x 594 x 44 |
1,700 |
80 |
|
M248-802-863 |
594 x 594 x 44 |
3,400 |
|
|
95 mm |
|||
|
M148-804-500 |
391 x 492 x 95 |
1,890 |
47 |
|
M148-804-700 |
492 x 492 x 95 |
2,360 |
|
|
M148-804-319 |
289 x 594 x 95 |
1,700 |
|
|
M148-804-782 |
492 x 594 x 95 |
2,830 |
|
|
M148-804-863 |
594 x 594 x 95 |
3,400 |
|
