AstroCel I HT

Mã sản phẩm: (Đang cập nhật...)

Thương hiệu: AAF

Liên hệ

Đang cập nhật

Khuyến mại - Ưu đãi

Zalo tư vấn & báo giá: 0971.344.344 Sao chép mã

Điện thoại tư vấn & báo giá Miền Nam: 0827.077.078 Sao chép mã

Điện thoại tư vấn & báo giá Miền Bắc: 0829.077.078 Sao chép mã

Gọi ngay 0971.344.344 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận

Thông tin chi tiết

EN1822: H13,14
Filter Depth (mm): 149, 292
Media Type: Fiberglass
Frame Material: Stainless Stell
Separator Style: Aluminium
Gasket Material: Red Silicone gasket
Sealant: White, Red Silicone
Faceguard: Optinal
Special Size Available: Yes
Antimicrobial Available: No
Header Type: None Header
Recommended Final Resistance: 750 Pa
Max Operating Temperature: 180°C, 260°C

Thông tin sản phẩm
Liên hệ mua hàng

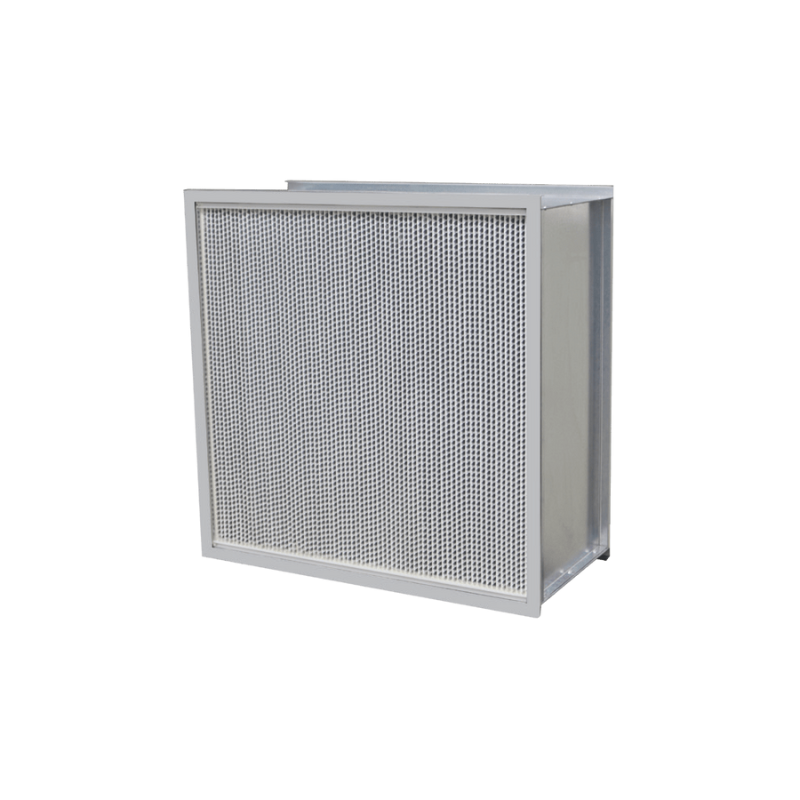

HIGH TEMP FILTERS: AstroCel I HT

Individually tested for certified performance
Available in a variety of metal cell sides and efficiencies
High temperature models available up to 260º C
High capacity option for higher airflow
Available in gasket seal

Typical applications

Automotive
Industrial
Pharmaceutical

Benefits & Features

Application

The AstroCel HT filter is a High Efficiency Particulate Air (HEPA) filter that is specifically designed to remove airborne contaminants in critical areas where high efficiency filtration is required and hot air is used during the production process. These filters are used in a broad range of industries, from photography and video to food processing.

Components used for the assembly of this filter are either specifically selected for their heat resistance, or because they are not severely affected by higher temperatures. To have the prototype tested under hot dynamic conditions, the AstroCel HT filter was presented to the independent U.K. Research Laboratory of Atomic Energy Authority Technology. The conclusion after testing was that the filters performed very satisfactorily and well within the criteria specified.

Cell Sides

This filter’s cell sides are made of hot dipped aluminized steel. This material has excellent characteristics at high temperatures and easily regains its original dimensions after sudden temperature variations. The cell sides are mechanically put together with stainless steel pop rivets to ensure a permanent close fit.

Separator

Heat resistant corrugated aluminum separators keep the pleats of the filter media apart. Uniform spacing between the pleats allows optimal air flow throughout the filter.

Expansion Layer

High temperatures have an influence on the filter media, sealant, and cell sides, since they do not expand equally due to their different coefficients. By designing a filter with a unique expansion layer, which is mounted with special glue to the cell sides, the difference in expansion is absorbed, thus preventing tears in the filter media and cracks in the sealant. In addition, the use of an expansion layer ensures that during the cooling down process, the filter cell sides and media will regain their original dimensions.

Bond

The media pack is thoroughly sealed to an expansion layer with a special, heat resistant sealant. This bond totally encapsulates the media edges and separators, preventing bypass leakages. The sealant consists of ceramic based components.

Specifications

EN1822	H13,14
Filter Depth (mm)	149,292
Media Type	Fibreglass
Frame Material	Stainless Steel
Separator Style	Aluminium
Gasket Material	Red Silicone Gasket
Sealant	White, Red Silicone
Faceguard	Optional
Special Size Available	Yes
Antimicrobial Available	No
Header Type	None Header
Recommended Final Resistance	750 Pa
Max Operating Temperature	180ºC, 260ºC

Product Information

Part Number	Size (WxHxD)mm	Rated Airflow (CMH)	Rated Initial Resistance (Pa)	Sealant Type
AstroCel® I HT-400 (H13)
M656-263-004	610 x 305 x 149	425	250	WHITE SILICONE
M656-263-005	610 x 610 x 149	850
M656-265-004	610 x 305 x 292	850
M656-265-005	610 x 610 x 292	1,700
AstroCel® I HT-400 (H14)
M653-263-004	610 x 305 x 149	425	250	WHITE SILICONE
M653-263-005	610 x 610 x 149	850
M653-265-004	610 x 305 x 292	850
M653-265-005	610 x 610 x 292	1,700
AstroCel® I HT-500 (H13)
M656-267-004	610 x 305 x 149	425	250	RED SILICONE
M656-267-005	610 x 610 x 149	850
M656-268-004	610 x 305 x 292	850
M656-268-005	610 x 610 x 292	1,700
AstroCel® I HT-500 (H14)
M653-267-004	610 x 305 x 149	425	250	RED SILICONE
M653-267-005	610 x 610 x 149	850
M653-268-004	610 x 305 x 292	850
M653-268-005	610 x 610 x 292	1,700

#AstroCel I HTAstroCel I HT

========================================================================================
