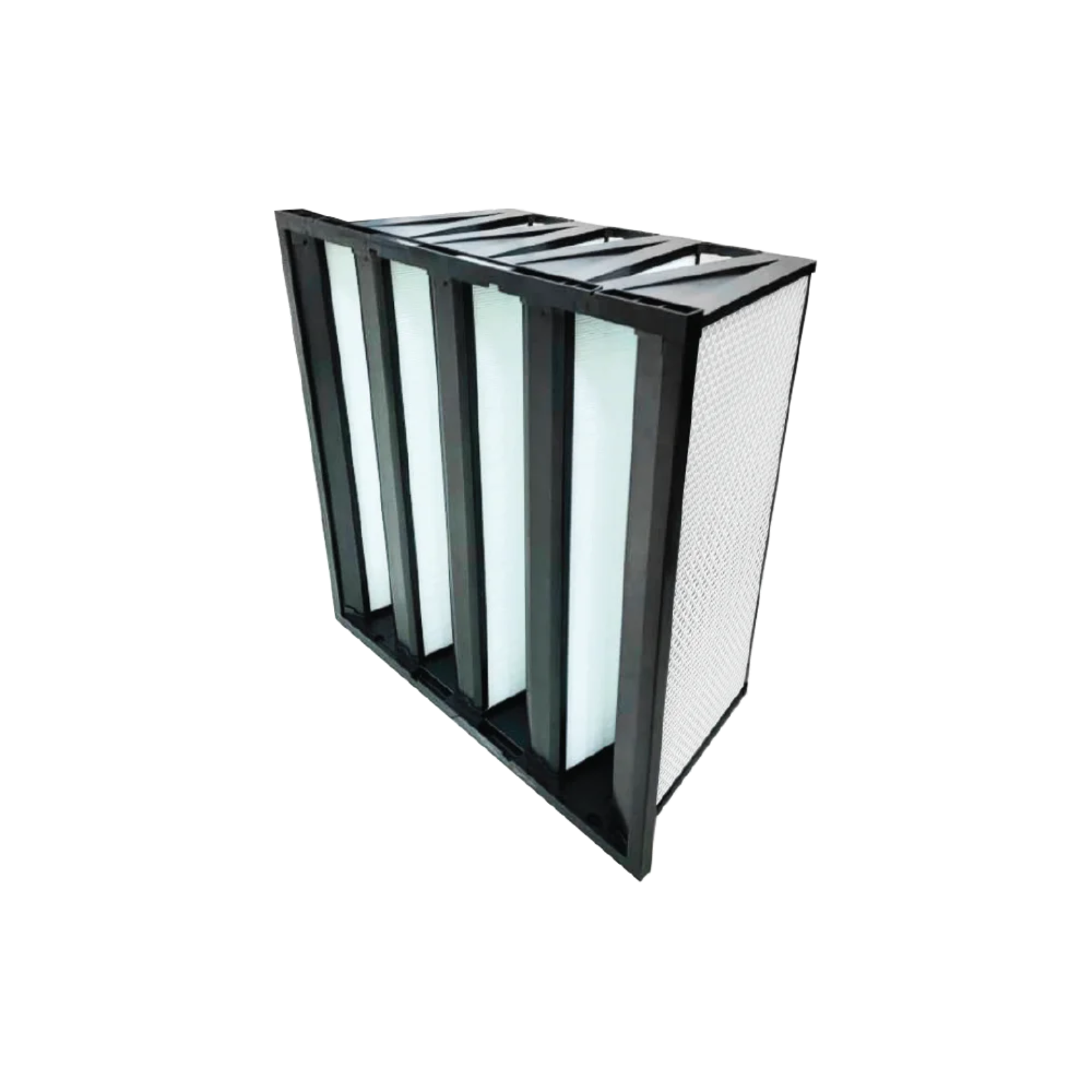

HEPA & ULPA FILTERS: AstroCel VXL
-
High efficiency to replace 292 mm depth compact filter
-
Suitable and easy to improve IAQ
-
Lightweight and easy to install
-
Fully incinerable
Typical applications
-
Commercial Buildings
-
Food and Beverage
-
Industrial
-
Pharmaceutical
Benefits & Features
- The AstroCel VXL filter is a lightweight compact filter designed for use in industrial HVAC installations.
- Available in the EN1822:2009 classification range E12 and H13, this filter’s rigid design and pleated media pack with hot melt separators ensures that it delivers the desired air quality when used as a final stage filter.
Media
- The AstroCel VXL filter’s media is water resistant and can withstand temporary exposure to free moisture in the airstream.
- When wet, there will be a temporary rise in resistance, which quickly returns to normal as soon as the moisture evaporates.
Construction
- The header and cell sides provide a sturdy construction that resists damage during shipping, handling and operation.
- The entire polystyrene construction is fully incinerable and free of halogens.
Separators
- This filter’s hot melt separators maintain uniform spacing between pleats to allow optimal flow of air throughout the filter.
- These separators also ensure a large effective media area for low resistance and long service life.
Operating Temperature
- AstroCel VXL filters can operate at temperatures up to 70 °C.
Specifications
EN1822 |
H13, H14 |
Filter Depth (mm) |
304 |
Media Type |
Fibreglass |
Frame Material |
Plastic |
Separator Style |
Hot Melt |
Gasket Material |
PU |
Faceguard |
Yes |
Special Size Available |
No |
Antimicrobial Available |
Optional |
Header Type |
Single Header |
Recommended Final Resistance |
600 Pa |
Max Operating Temperature |
70º C |
Product Information
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
H13 |
|||
M336-440-203N |
592 x 287 x 304 |
1,250 |
260 |
M336-440-202N |
592 x 490 x 304 |
2,100 |
|
M336-440-201N |
592 x 592 x 304 |
2,500 |
|
H14 |
|||
M336-443-203N |
592 x 287 x 304 |
1,250 |
270 |
M336-443-202N |
592 x 490 x 304 |
2,100 |
|
M336-443-201N |
592 x 592 x 304 |
2,500 |
