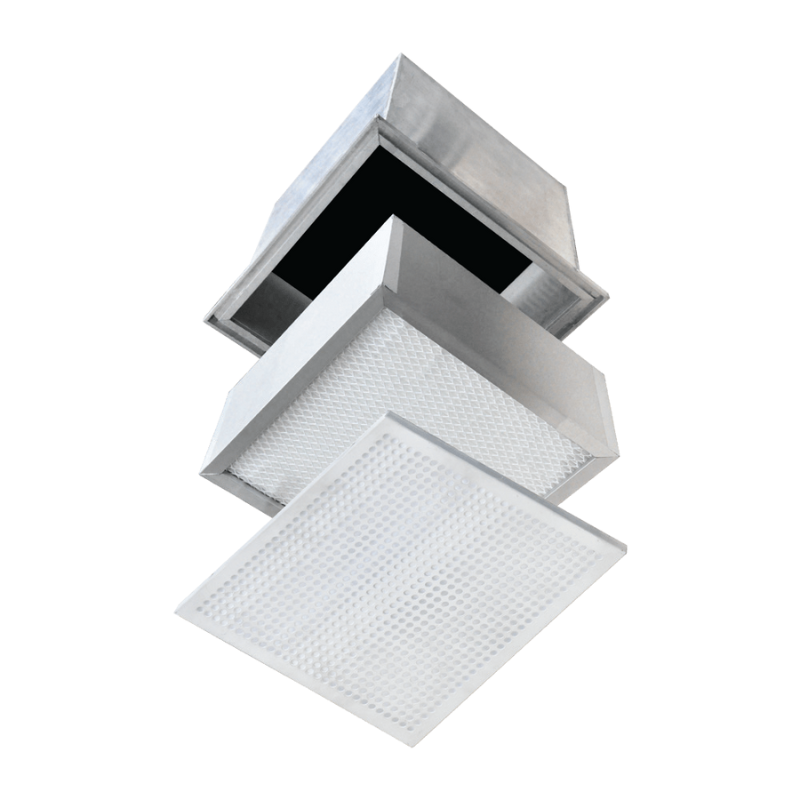

CLEANROOM MODULE: AstroHood S-III RSR-III

Visually pleasing room side design
Leak free housing – extruded aluminium material with fully welded corners
Available for gasket or gel seal filter
Tool free filter and diffuser installation
Prefixed air entry distribution plate
Hygienic designed – no gap between diffuser and the housing
Standard and high capacity filters are interchangeable
Perforated or swirl diffusers available
No centre divider – increase filter area and unrestricted airflow uniformity
Patent pending test port providing excellent air flow uniformity

Typical applications

Pharmaceutical
Healthcare
Medical Device Manufacturing

Benefits & Features

AstroHood S-III RSR-III HEPA module is room side replaceable HEPA terminal housing. It’s designed to replace HEPA filter without using any tools. Standard and high capacity filters are interchangeable without requiring any adjusting.

All New Robust Construction and Leak Free Design

AstroHood® S-III RSR-III’s robust construction and leak free feature is due to thicker construction material and continuous welding at all corners.

Designing for complicated parts has become easier, thanks to aluminium extrusion profile. AstroHood® S-III RSR-III comes with multipurpose suspension brackets that can be positioned in any point on the housing perimeter.

Supported Variety Airflow Options and Tools Free

AstroHood® S-III RSR-III can handle different volumetric of airflow with the same filter dimension, without adjusting the filter clamping devices. It is designed with tool free in mind, during new filter installation or replacement and removal of diffuser. The swirl or perforated diffuser are available in powder coated or stainless steel.

More Media Area More Airflow, ePTFE Media available

Revolution test ports designed by our R&D team help us to remove the centre divider, which means an increase in the filter area and airflow. You will save approximately 50% on energy with the new ePTFE media compared to glass fibre and this product is engineered with good chemical resistance, too.

Filter Specifications

EN1822	H13 - U17
ISO 29463	ISO 35 H - ISO 75 U
Filter Depth (mm)	117, 128
Media Type (Standard)	Fibreglass
Media Type (Optional)	ePTFE, eFRM
Frame Materia	Aluminium
Seperator Style	Hot Melt
Gasket Material (Standard)	PU, PU Gel
Gasket Material (Optional)	Neoprene, EPDM, Silicone Gel
Gasket Position	Upstream
Faceguard Position	Both Sides
Antimicrobial Available	No
Recommended Final Resistance	500 Pa
Max Operating Temperature	70ºC
Air Filtration Certificate	UL 900, FM 4920

Housing Specification

Housing Depth (mm)	258
Housing Material	Aluminium
Supply Air Grille	Perforated, Swirl
Supply Air Grille Material (Standard)	Gl Finished with Epoxy Coated
Supply Air Grille Material (Optional)	Stainless Steel
Inlet Collar (mm)	200, 250, 300
Inlet Diffuser	Prefixed Distribution Plate
Top Material (Standard)	Galvalume
Top Material (Optional)	Aluminium, Stainless Steel
Special Size Available	Yes

Housing Information

Part Number	Actual Module Size mm (H x W x D)	Actual Filter Size mm (H x W x D)	Supply Air Grille
Gasket seal housing
M13D2-11G30-319GP	570 x 570 x 258	502 x 502 x 117	Perforated
M13D2-11G30-1811GP	570 x 900 x 258	502 x 832 x 117
M13D2-12G30-2812GP	570 x 1140 x 258	502 x 1072 x 117
M13D2-11G30-319GS	570 x 570 x 258	502 x 502 x 117	Swirl
Gel seal housing
M13G2-11G30-319GP	570 x 570 x 258	506 x 506 x 128	Perforated
M13G2-11G30-1811GP	570 x 900 x 258	506 x 836 x 128
M13G2-12G30-2812GP	570 x 1140 x 258	506 x 1076 x 128
M13G2-11G30-319GS	570 x 570 x 258	506 x 506 x 128	Swirl

Filter Information

Part Number	Size mm (H x W x D)	Rated Airflow (CMH)	Rated Initial Resistance (Pa)	Gasket Material
H13 / ISO 35 H
MF5742-1131-1793	502 x 502 x 117	600	135	PU
MF5742-1131-2810	502 x 832 x 117	900
MF5742-1131-2825	502 x 1072 x 117	1,200
MF5744-1131-1793	502 x 502 x 117	1,050	200
MF5744-1131-2810	502 x 832 x 117	1,650
MF5744-1131-2825	502 x 1072 x 117	2,200
MF5042-4131-2928	506 x 506 x 128	600	135	PU Gel
MF5042-4131-2929	506 x 836 x 128	900
MF5042-4131-2930	506 x 1076 x 128	1,200
MF5044-4131-2828	506 x 506 x 128	1,050	200
MF5044-4131-2829	506 x 836 x 128	1,650
MF5044-4131-2830	506 x 1076 x 128	2,200
H14 / ISO 45 H
MF5752-1131-1793	502 x 502 x 117	600	145	PU
MF5752-1131-2810	502 x 832 x 117	900
MF5752-1131-2825	502 x 1072 x 117	1,200
MF5754-1131-1793	502 x 502 x 117	1,050	210
MF5754-1131-2810	502 x 832 x 117	1,650
MF5754-1131-2825	502 x 1072 x 117	2,200
MF5052-4131-2928	506 x 506 x 128	600	145	PU Gel
MF5052-4131-2929	506 x 836 x 128	900
MF5052-4131-2930	506 x 1076 x 128	1,200
MF5054-4131-2928	506 x 506 x 128	1,050	210
MF5054-4131-2929	506 x 836 x 128	1,650
MF5054-4131-2930	506 x 1076 x 128	2,200
