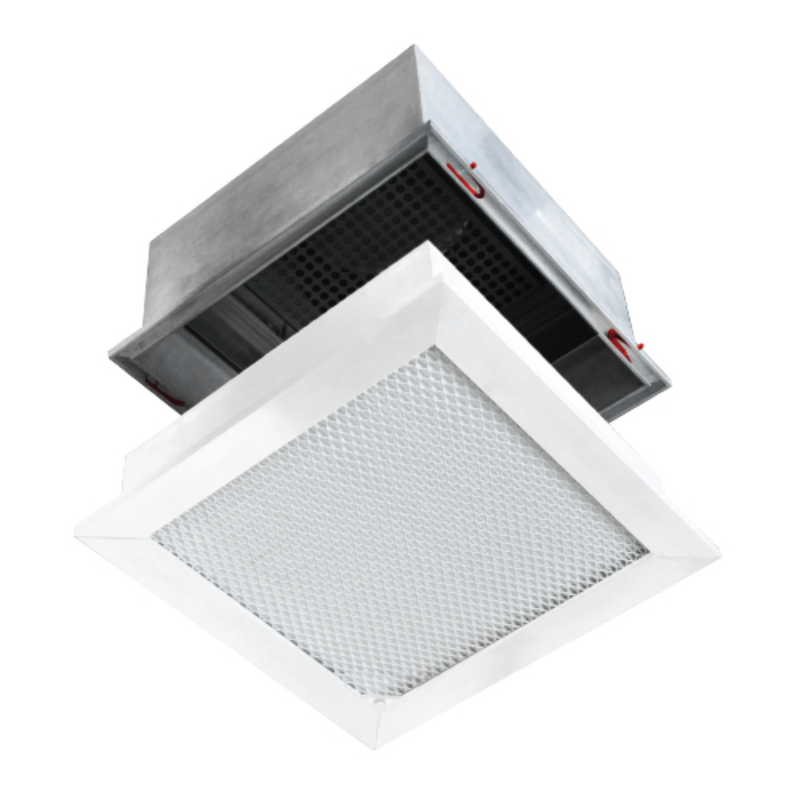

CLEANROOM MODULE: AstroHood S-III RSR-IV
  • Visually pleasing room side design
  • Extruded aluminium housing with fully welded corners, providing a leak free constructions
  • Gel seal for optimum integrity
  • Tool free filter installation
  • Prefixed air entry distribution plate
  • Hygienic designed – no gap between filter and the housing
  • Multipurpose suspension brackets – can be positioned on any point on housing perimeter
  • No centre divider – increase filter area and unrestricted airflow uniformity
  • Patent-pending corner test port allowing excellent airflow uniformity
Typical applications
  • Pharmaceutical
  • Biotechnology
  • Life Sciences
Benefits & Features
AstroHood S-III RSR-III HEPA module is room side replaceable HEPA terminal housing. It’s designed to replace HEPA filter without using any tools. Standard and high capacity filters are interchangeable without requiring any adjusting.
All New Robust Construction and Leak Free Design
AstroHood S-III RSR-IV robust construction and leak free feature is due to the thicker construction material and continuous welding at all corners. AstroHood S-III RSR-IV comes with multipurpose suspension brackets that can be positioned in any point on the housing perimeter.
Hygienic Design, Tools Free Filter Replacement
AstroHood S-III RSR-IV has a unique design that eliminates the gap between filter and housing and the ceiling after installation. It is designed with tool free filter installation or replacement.
More Media More Airflow, ePTFE Media Available
New patent pending design eliminates the centre divider, which means an increase in filter area, airflow as well as unrestricted airflow uniformity. The ePTFE media option saves 50% energy compared to glass fibre. ePTFE also has an excellent chemical resistance and mechanical strength.
Filter Specification
EN1822
H13 - U17
ISO 29463
ISO 35 H - ISO 75 U
Filter Depth (mm)
81
Media Type (Standard)
Fibreglass
Media Type (Optional)
ePTFE, eFRM
Frame Material
Aluminium
Seperator Style
Hot Melt
Gasket Material (Standard)
PU Ge
Gasket Material (Optional)
Silicone Gel
Gasket Position
Upstream
Faceguard Position
Downstream
Antimicrobial Available
No
Recommended Final Resistance
500 Pa
Max Operating Temperature
70ºC
Air Filtration Certificate
UL 900, FM 4920

Housing Specification
Housing Depth (mm)
135
Housing Material
Aluminium
Inlet Collar (mm)
200, 250, 300
Inlet Diffuser
Prefixed Distribution Plate
Top Material (Standard)
Galvalume
Top Material (Optional)
Aluminium, Stainless Stee
Special Size Available
Yes

Housing Information
Part Number
Actual Module Size mm (H x W x D)
Actual Filter Size mm (H x W x D)
M6902-11G30-593
593 x 593 x 135
600 x 600 x 81
M6902-11G30-2817
593 x 893 x 135
600 x 900 x 81
M6902-12G30-2818
593 x 1193 x 135
600 x 1200 x 81

Filter Information
Part Number
Size (WxHxD)mm
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
H13 / ISO 35 H
MF8145-4131-333
600 x 600 x 81
600
120
MF8145-4131-702
600 x 900 x 81
900
MF8145-4131-300
600 x 1200 x 81
1,200
H14 / ISO 45 H
MF8155-4131-333
600 x 600 x 81
600
145
MF8155-4131-702
600 x 900 x 81
900
MF8155-4131-702
600 x 1200 x 81
1,200
