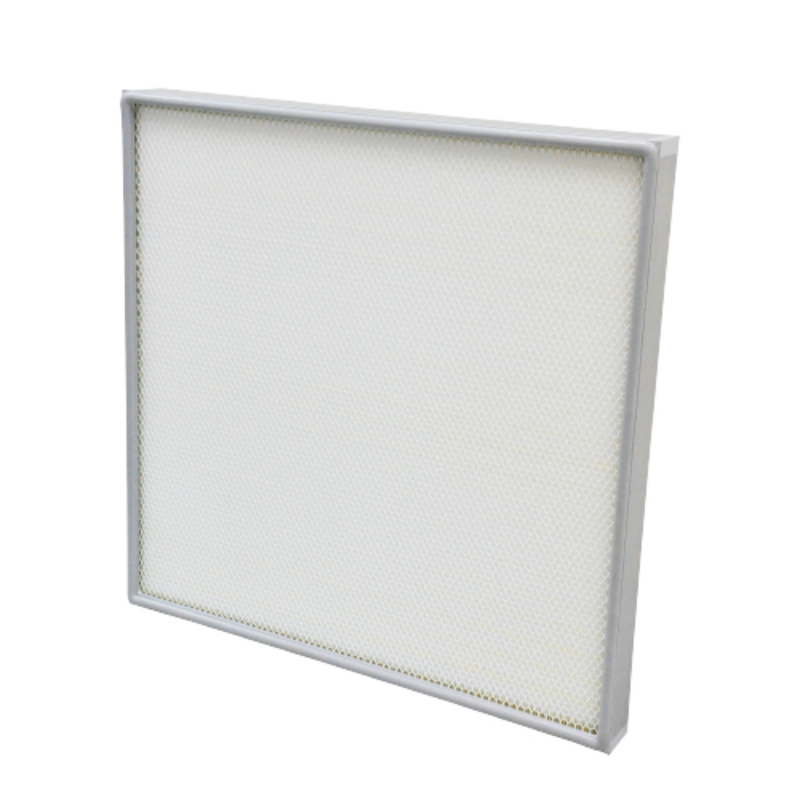

HEPA & ULPA FILTERS:  MEGAcel II ME / ME SC/ ME Lite
  • Lowest pressure drop mini-pleat HEPA filter available
  • AAF’s high tensile strength ePTFE media is up to 84x stronger than micro fibreglass
  • Highly resistant to corrosive environments (acids, alkalis and organic substances)
  • Near-zero off-gassing properties
Typical applications
  • Microelectronics
  • Semiconductor Manufacturing
  • Tooling
  • Flat Panel Display Fabrication
  • Medical Device Manufacturing
Benefits & Features
Energy Conservation
AAF’s ePTFE ULPA filtration technology provides initial resistances at a minimum of 30% lower than conventional micro fiberglass media, resulting in unmatched reductions in fan energy consumption. AAF’s pleating method, which uses intermittent polyamide separators, allows more open and effective media area, minimizing pleat pack resistance.
Perfect Filter Media
Compared with micro fiberglass media, ePTFE media provides superior benefits, including inert chemical properties, more uniform fiber distribution, smaller fiber diameters, and smaller pore size. As a result, reduced resistance and higher filtration performance provide substantial energy savings.
Sturdy Construction
Tooling environments often produce harmful and corrosive by-products. The MEGAcel II ePTFE filter is extremely resistant to these harsh conditions, and also offers superior efficiency and pressure drop characteristics. Manufactured with a proprietary, high-quality ePTFE media, the MEGAcel® II ePTFE filter is hydrophobic and meets the requirements of UL900. The media pack is permanently attached to an anodized extruded aluminum frame using a urethane adhesive.
Note: MEGAcel I filters are to be tested in-situ by
Discrete Particle Counter (DPC) method only.
Chemical Advantages of AAF Flanders ePTFE Media
Negligible Off-Gassing
AAF’s ePTFE media is naturally boron-free and the materials of construction have been chosen to meet the most stringent of off-gassing requirements. The off-gassing impurities are significantly reduced compared to micro fiberglass.
High Corrosion Resistance
ePTFE media is chemically inert and resistant to highly corrosive agents, including alkaline, acid, and organic substances- all of which can be found in semiconductor manufacturing processes.
Superior Water Resistance
AAF’s ePTFE media is hydrophobic and provides superior water resistance in comparison with micro fiberglass and low boron micro fiberglass media.
Specifications
EN1822
H13 - U17
ISO 29463
ISO 35 H - ISO 75 U
Filter Depth (mm)
50, 69
Media Type
ePTFE
Frame Material (Standard)
Aluminium
Separator Style
Hot Melt
Gasket Material (Standard)
PU
Gasket Material (Optional)
Neoprene, EPDM
Gasket Position (Standard)
Downstream
Gasket Position (Optional)
Upstream, Both Sides
Faceguard
Both Sides
Special Size Available
Yes
Antimicrobial Available
No
Recommended Final Resistance
500 Pa
Max Operating Temperature
70ºC
Air Filtration Certification
Optional

Product Information
Part Number
Size (WxHxD)mm
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
H13 ME / ISO 35 H
M5741-4223-004
610 x 305 x 50
301
50
M5741-4223-005
610 x 610 x 50
603
M5741-4223-007
610 x 915 x 50
904
M5741-4223-008
610 x 1220 x 50
1,206
H13 ME SC / ISO 35 H
M5741-9233-004
610 x 305 x 50
301
105
M5741-9233-005
610 x 610 x 50
603
M5741-9233-007
610 x 915 x 50
904
M5741-9233-008
610 x 1220 x 50
1,206
M5742-9333-004
610 x 305 x 69
301
70
M5742-9333-005
610 x 610 x 69
603
M5742-9333-007
610 x 915 x 69
904
M5742-9333-008
610 x 1220 x 69
1,206
H13 ME Lite / ISO 35 H
M5742-8133-004
610 x 305 x 69
301
95
M5742-8133-005
610 x 610 x 69
603
M5742-8133-007
610 x 915 x 69
904
M5742-8133-008
610 x 1220 x 69
1,206
H14 ME / ISO 45 H
M5751-4223-004
610 x 305 x 50
301
60
M5751-4223-005
610 x 610 x 50
603
M5751-4223-007
610 x 915 x 50
904
M5751-4223-008
610 x 1220 x 50
1,206
H14 ME SC / ISO 45 H
M5751-9233-004
610 x 305 x 50
301
110
M5751-9233-005
610 x 610 x 50
603
M5751-9233-007
610 x 915 x 50
904
M5751-9233-008
610 x 1220 x 50
1,206
M5752-9333-004
610 x 305 x 69
301
75
M5752-9333-005
610 x 610 x 69
603
M5752-9333-007
610 x 915 x 69
904
M5752-9333-008
610 x 1220 x 69
1,206
H14 ME Lite / ISO 45 H
M5752-8233-004
610 x 305 x 69
301
110
M5752-8233-005
610 x 610 x 69
603
M5752-8233-007
610 x 915 x 69
904
M5752-8233-008
610 x 1220 x 69
1,206
U15 ME / ISO 55 U
M5771-4223-004
610 x 305 x 50
301
70
M5771-4223-005
610 x 610 x 50
603
M5771-4223-007
610 x 915 x 50
904
M5771-4223-008
610 x 1220 x 50
904
U16 ME / ISO 65 U
M5781-4223-004
610 x 305 x 50
301
85
M5781-4223-005
610 x 610 x 50
603
M5781-4223-007
610 x 915 x 50
904
M5781-4223-008
610 x 1220 x 50
1,206
