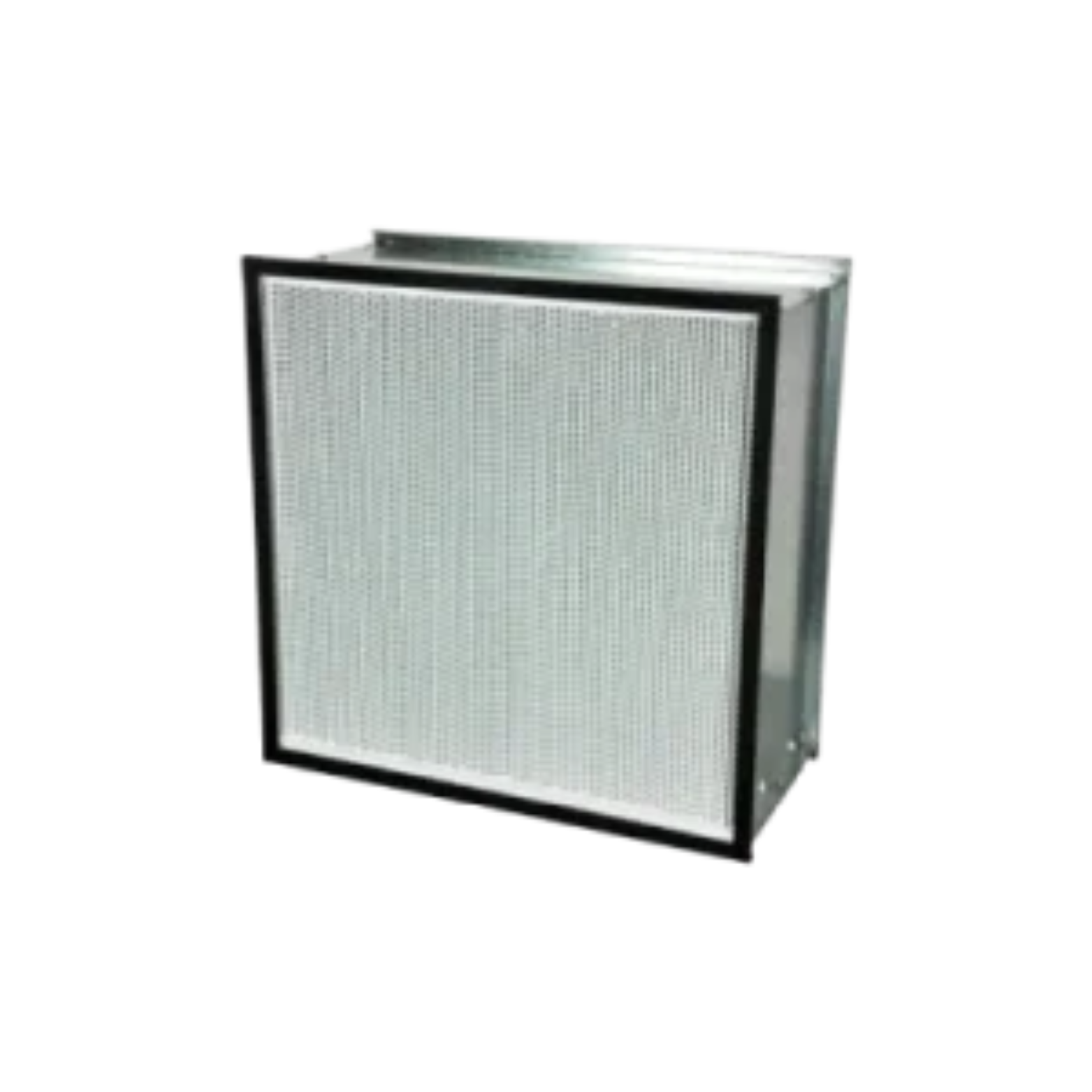

HEPA & ULPA FILTERS: MEGAcel I ME / ME SC / ME Lite
Lower energy consumption – greater than 40% lower resistance as compared to 292 mm depth high capacity HEPA filters
AAF ePTFE Filtration Technology media combines ultra-high efficiency with lowest pressure drop
Highly resistant to corrosive environments (acids, alkalis, and organic substances)
Negligible offgassing properties (boron, sodium, potassium, silicon)
High tensile strength media, more resistant to rough handling in transportation and installation
Withstands pressure up to 5,000 Pa
Typical applications
Healthcare
Food Processing
Pharmaceutical
Laboratory
Benefits & Features
ePTFE Filtration Technology Media Developed by AAF Engineers
- Groundbreaking ePTFE media was engineered by AAF’s research and design teams. Media production, testing, and packaging are all performed in AAF’s (ISO 7) ultra-modern controlled environment, eliminating the potential for contamination of the filter during manufacturing.
Energy Conservation = Energy Savings
- The ePTFE pleat pack resistance is a minimum of 40% lower than conventional micro fiberglass media, a significant factor that contributes to a great reduction in fan energy consumption.
- AAF ePTFE media, combined with tapered aluminum separators, optimizes pleat pack resistance. With a reduction in fan energy consumption, overall energy savings can be realized.
Perfect Filter Media
- Compared with micro fiberglass media, ePTFE media provides superior benefits, including inert chemical properties, more uniform fiber distribution, smaller fiber diameters, and smaller pore size.
- As a result, reduced resistance and higher filtration performance provide substantial energy savings.
Chemical Advantages of ePTFE Filtration Technology Media
- This filter’s hot melt separators maintain uniform spacing between pleats to allow optimal flow of air throughout the filter.
- These separators also ensure a large effective media area for low resistance and long service life.
Negligible Offgassing
- ePTFE media has a smaller pore size and fiber diameter than micro fiberglass.
- These characteristics significantly reduce the levels of offgassing impurities typical to micro fiberglass (which include boron, sodium, potassium, and silicon) to almost zero.
High Corrosion Resistance
- ePTFE media has proven to be resistant in highly corrosive environments, including alkaline, acid, and organic substances that are common in a variety of manufacturing processes.
Superior Water Resistance
- Based on AAF’s test lab results, ePTFE media provides
- superior water resistance in comparison with micro fiberglass and low boron microglass media.
- Performance Data Resistance vs. Velocity
- Note: MEGAcel I filters are to be tested in-situ by
- Discrete Particle Counter (DPC) method only.
Specifications
EN1822 | H13, H14 |
Filter Depth (mm) | 149, 292 |
Media Type | ePTFE |
Frame Material (Standard) | Galvanised Steel |
Frame Material (Optional) | Stainless Steel, Aluminium |
Separator Style | Aluminium |
Gasket Material (Standard) | Neoprene |
Gasket Material (Optional) | PU, EPDM |
Gasket Position (Standard) | Downstream |
Gasket Position (Optional) | Upstream, Both Sides |
Faceguard | Optional |
Special Size Availabl | Yes |
Antimicrobial Available | No |
Header Type | None Header |
Recommended Final Resistance | 750 Pa |
Max Operating Temperature | 70ºC |
UL 900 Certificate | Optional |
Product Information
Part Number | Size (WxHxD)mm | Rated Airflow (CMH) | Rated Initial Resistance (Pa) |
H13 ME |
M5263-5022-004 | 610 x 305 x 149 | 850 | 115 |
M5263-5022-005 | 610 x 610 x 149 | 1,700 |
M5265-5022-004N | 610 x 305 x 292 | 1,700 | 165 |
M5265-5022-005N | 610 x 610 x 292 | 3,400 |
H13 ME SC |
M2565-2022-004 | 610 x 305 x 292 | 1,700 | 230 |
M2565-2022-005 | 610 x 610 x 292 | 3,400 |
H13 ME Lite |
M2765-2022-004 | 610 x 305 x 292 | 1,700 | 260 |
M2765-2022-005 | 610 x 610 x 292 | 3,400 |
H14 ME |
M5233-5022-004 | 610 x 305 x 149 | 850 | 150 |
M5233-5022-005 | 610 x 610 x 149 | 1,700 |
M5235-5022-004N | 610 x 305 x 292 | 1,700 | 215 |
M5235-5022-005N | 610 x 610 x 292 | 3,400 |
