PREpleat LPD HC

Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*Filter Class: G4 according to EN779
*Filter Class: MERV 8 according to ASHARE 52.2
*Filter Depth (mm): 22,44, 95
*Media Type: Synthetic
*Frame Material: Beverage Board
*Special Size Available : Yes
*Antimicrobial Available: Optional
*Recommended Final Resistance: 250 Pa
*Max Operating Temperature: 82ºC
*Air Filtration Certificate: UL 900

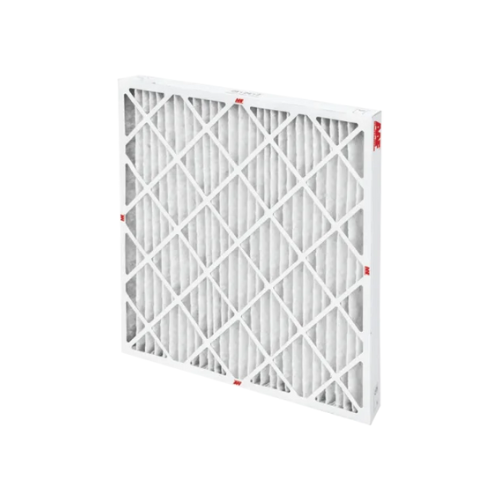

PANEL & PLEATED FILTER: PREpleat LPD HC
  • Lowest initial resistance MERV 8 pleated filter
  • High Dust Holding Capacity (DHC) for energy efficient performance
  • Diagonal support members and wire-backed media contribute to overall strength of construction
  • Filter media pack is bonded to the frame at all points of contact to eliminate air bypass
  • High Capacity, MERV 8
Typical applications
  • Commercial Buildings
  • Industrial
  • Pharmaceutical
Benefits & Features
AAF’s PREpleat LPD HC filter is the lowest initial resistance MERV 8 pleated filter in the industry. Combined with its high DHC, the PREpleat LPD HC filter provides an extended life cycle and energy efficient performance.
Superior Design and Construction
- Media: 100% synthetic non-woven, proprietary media that can be recycled. Engineered with a gradient density composition that achieves a MERV 8 rating using the mechanical method of particle capture. Media does not rely on an electrostatic charge to capture particulates, since the charge dissipates over time.
- Media Support: Expanded metal is continuously laminated on the air leaving side to provide pleat stability during operation. Pleat shape is maintained, allowing full media utilization and maximizing DHC.
- Pleat Design: V-Pleat design aids in pressure drop while reducing energy cost. Design allows for maximum airflow and DHC during the life of the filter.
- Frame: Heavy-duty, two piece, moisture-resistant frame includes diagonal and horizontal support members bonded to the media on the air entering and exiting sides for unsurpassed frame strength. Interlocking corners and positive media-to-frame seal reduce the possibility of air bypass.
- Operating Temperature Limits: Max. operating temp. is 180°F (82°C).
Specification
EN779
G4
ASHRAE 52.2
MERV 8
ISO 16890
Coarse 70%
Filter Depth (mm)
22, 44, 95
Media Type
Synthetic
Frame Material
Beverage Board
Special Size Available
Yes
Antimicrobial Available
Optional
Recommended Filter Resistance
250 Pa
Max Operating Temperature
82°C
Air Filtration Certificate
UL 900

Product Information
Part Number
Size (WxHxD)mm
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
22 mm
M147-201-500
391 x 492 x 22
1,860
58
M147-201-700
492 x 492 x 22
2,320
M147-201-319
289 x 594 x 22
1,700
M147-201-782
492 x 594 x 22
2,800
M147-201-863
594 x 594 x 22
3,400
M147-201-600
391 x 619 x 22
2,320
M147-201-800
492 x 619 x 22
2,900
44 mm
M147-202-500
391 x 492 x 44
1,860
44
M147-202-700
492 x 492 x 44
2,320
M147-202-319
289 x 594 x 44
1,700
M147-202-782
492 x 594 x 44
2,800
M147-202-863
594 x 594 x 44
3,400
M147-202-600
391 x 619 x 44
2,320
M147-202-800
492 x 619 x 44
2,900
95 mm
M147-204-500
391 x 492 x 95
1,860
40
M147-204-700
492 x 492 x 95
2,320
M147-204-319
289 x 594 x 95
1,700
M147-204-782
492 x 594 x 95
2,800
M147-204-863
594 x 594 x 95
3,400
M147-204-600
391 x 619 x 95
2,320
M147-204-800
492 x 619 x 95
2,900
