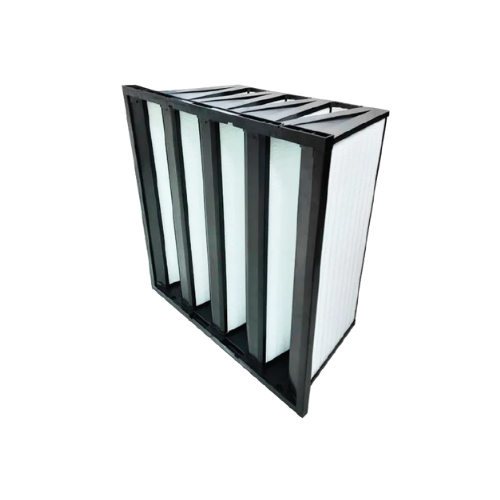

COMPACT FILTER: VariCel VXL
- Design with a built-in spacer allows the pleated prefilter to get the most out of its media
- Lowest initial resistance with the new design
- Alleviate turbulence airflow and ensure the fine fibre maintains its efficiency
- Minimizing the operating costs
- Excellent performance under extreme operating conditions
- Lightweight and easy to install
- Filter with the longest lifespan and highest efficiency
Typical applications
- Commercial Buildings
- Food and Beverage
- Healthcare
- Microelectronics
- Pharmaceutical
Benefits & Features
Maximum Effective Media Area
Multiple mini-pleat media packs, assembled into a series of V-banks, permit substantially more media to be contained in the VariCel VXL filter — up to 50% more than standard rigid cartridge filters. Maximum effective media area provides greater airflow capacity, low resistance, high dust holding capacity, and unusually long service life.
Dual-Density Media Reduces Operating Costs
VariCel VXL media is manufactured with two layers of glass fibers, coarse fibers on the air-entering side, and finer fibers on the air-leaving side. Our dual-density design allows dirt particles to be collected throughout the entire depth of the media pack, utilizing the full filtering potential of the media and maximizing dust holding. Maximum dust holding capacity extends the life of the filter, minimizing operating costs.
Construction
The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. Constructed of plastic, the VariCel VXL filter is fully incinerable.
Separators
The thermoplastic separators maintain uniform spacing between pleats to allow optimal flow of air into and through the filter. The separators also ensure large effective media area for low resistance and high dust holding capacity.
EN779 |
M6 – F9 |
ASHRAE 52.2 |
MERV 11 – 15 |
ISO 16890 |
ePM10 70%, ePM1 55% – 80% |
Filter Depth (mm) |
304 |
Media Type |
Fibreglass |
Frame Material |
Plastic |
Separator Style |
Hot Melt |
Special Size Available |
No |
Antimicrobial Available |
Optional |
Header Type |
Single header |
Recomm. Final Resistance |
450 Pa |
Max. Operating Temperature |
70˚C |
Part Number |
Size (WxHxD)mm |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
M6 / MERV 11 / ePM10 70% |
|||
M336-031-003N |
592 x 287 x 304 |
1,700 |
59 |
M336-031-002N |
592 x 490 x 304 |
2,830 |
|
M336-031-001N |
592 x 592 x 304 |
3,400 |
|
F7 / MERV 13 / ePM1 55% |
|||
M336-016-003N |
592 x 287 x 304 |
1,700 |
64 |
M336-016-002N |
592 x 490 x 304 |
2,830 |
|
M336-016-001N |
592 x 592 x 304 |
3,400 |
|
F8 / MERV 14 / ePM1 70% |
|||
M336-013-003N |
592 x 287 x 304 |
1,700 |
72 |
M336-013-002N |
592 x 490 x 304 |
2,830 |
|
M336-013-001N |
592 x 592 x 304 |
3,400 |
|
F9 / MERV 15 / ePM1 80% |
|||
M336-010-003N |
592 x 287 x 304 |
1,700 |
89 |
M336-010-002N |
592 x 490 x 304 |
2,830 |
|
M336-010-001N |
592 x 592 x 304 |
3,400 |
========================================================================================
