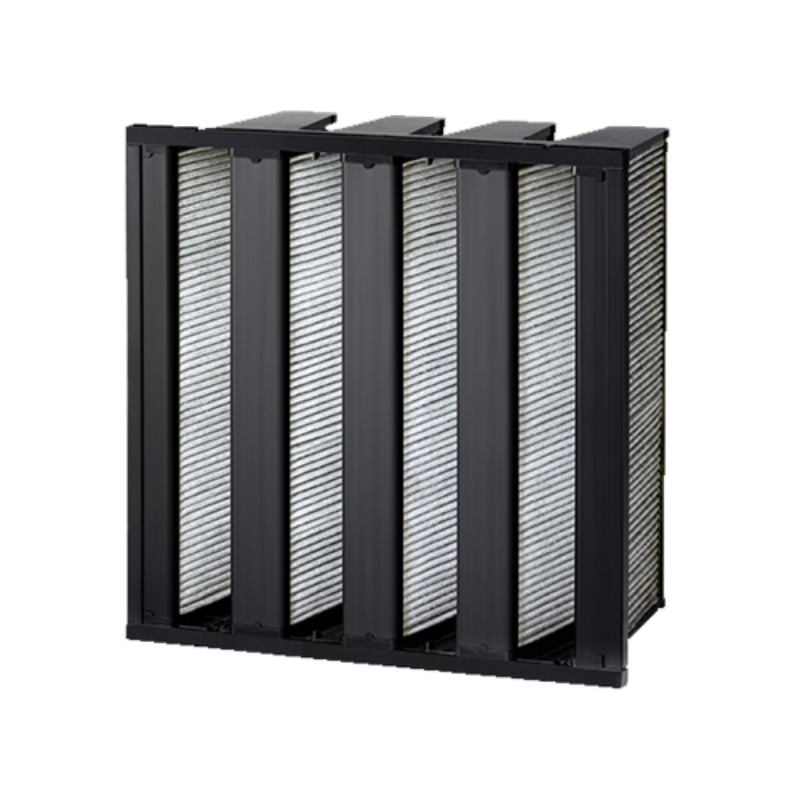

VariSorb XL15

Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Đang cập nhật

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận
Thông tin chi tiết

*EN779: F9
*ASHRAE 52.2: MERV 15
*Filter Depth (mm): 304
*Media Type: Carbon
*Frame Material: Plastic
*Special Size Available: No
*Header Type: Single Header
*Recommended Final Resistance: 375 Pa
*Max Operating Temperature: 51°C
*CTC: ≥ 60 wt. %
*Target Gas: VOC

FILTER: VariSorb XL15
  • High-efficiency filters designed to improve Indoor Air Quality
  • Suitable for retrofit into existing HVAC systems, specification in new construction, or for direct replacement of 292 mm. depth, single-header filters
  • Particulate and gaseous contaminant removal
  • Highest activity carbon = highest adsorption
  • Energy-effcient mini-pleat design
  • Corrosion-free, non-metal construction
  • Can assist in meeting National Ambient Air Quality Standards in non attainment areas
  • Mini carbon granules embedded in synthetic layersHigh-efficiency filters designed to improve Indoor Air Quality
  • Suitable for retrofit into existing HVAC systems, specification in new construction, or for direct replacement of 292 mm. depth, single-header filters
  • Particulate and gaseous contaminant removal
  • Highest activity carbon = highest adsorption
  • Energy-effcient mini-pleat design
  • Corrosion-free, non-metal construction
  • Can assist in meeting National Ambient Air Quality Standards in non attainment areas
  • Mini carbon granules embedded in synthetic layers
Typical applications
  • Airports
  • Healthcare
  • Industrial plant offices and laboratories
  • Microelectronics
Benefits & Features
Construction
VariSorb XL15 filters consist of filter elements assembled in a V-bank configuration in High Impact Polystyrene (HIPS) end caps, and Acrylonitrile Butadiene Styrene (ABS) profiles. The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. The absence of metal components makes VariSorb XL15 filter fully incinerable.
Additional Features
VariSorb XL15 filters replace existing HVAC filters of the same type with no changes required for frames or latches. They are packed and sealed in individual polyethylene bags to preserve capacity and cleanliness.
Media
The VariSorb XL15 filter features a pleated media comprised of very high activity virgin carbon particles bonded into a three-dimensional network of bicomponent fibres that maximizes the exposure of the sorbent to gas. The very small carbon granules, unlike traditional granular bed chemical filters, provide a granular microstructure that ensures a much higher effective area per pound of media, resulting in a high spontaneity of adsorption. Combined with the dense packing of the microstructure, this creates a tortuous path for the contaminant, resulting in a high yield for the filter. Dusting is nearly eliminated, and pressure drop is minimized. The carbon media is laminated to a synthetic particulate filtration layer, which provides a high level of removal efficiency at minimal resistance.
Specifications
EN779
F9
ASHRAE 52.2
MERV 15
Filter Depth (mm)
304
Media Type
Carbon
Frame Material
Plastic
Special Size Available
No
Header Type
Single Header
Recommended Final Resistance
375 Pa
Max Operating Temperature
51°C
CTC
≥ 60 wt. %
Target Gas
VOC

Product Information
Part Number
Size (mm) (W x H x D)
Rated Airflow (CMH)
Rated Initial Resistance (Pa)
M421-111-003N
592 x 287 x 304
1,700
120
M421-111-002N
592 x 490 x 304
2,800
M421-111-001N
592 x 592 x 304
3,400

#Từ khóa: VariSorb XL15, VariSorb XL15, VariSorb XL15
