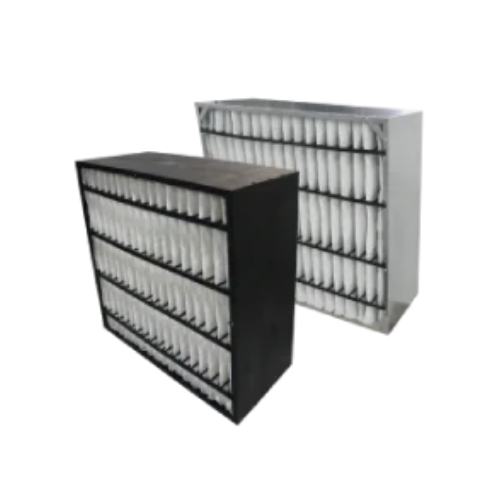

RigiFil / VariCel RF
Mã sản phẩm: (Đang cập nhật...)
Thương hiệu: AAF
Còn hàng
Liên hệ
Hoàn Tiền 100%
Trường hợp hàng giá
Được kiểm tra hàng
Mở hộp khi nhận hàng
Đổi trả hàng miễn phí
Trong 30 ngày sau khi nhận- Thông tin sản phẩm
- Liên hệ mua hàng
COMPACT FILTER: RigiFil / VariCel RF
-
Designed for improved performance and durability
-
Layered synthetic media with plastic pleat spacers on both sides
-
Heavy-duty expanded metal media support grid
-
Ideal for Variable Air Volume (VAV) systems
Typical applications
-
Commercial Buildings
-
Healthcare
-
Schools and Universities
-
Manufacturing
Benefits & Features
Sturdy Construction and Dependability
The VariCel RF filter, with its galvanized steel cell sides and plastic pleat spacers on the air-entering and air-leaving sides, withstands the most demanding applications. The pleat spacers and expanded metal support grid maintain the shape of the synthetic media pack and ensure that both efficiency and dust holding capacity are maximized.
Supported Pleat Media Pack
The rigid construction with supported pleat media pack maintains a compact unitized structure under variable air velocities and repeated fan shutdowns. The interlocked header and cell sides, along the entire length of each side, provide maximum sealing. Competitive filters are designed with loose fitting headers that allow greater potential for bypass leakage.
Layered Synthetic Media Pack
The layered media used in the VariCel RF filter is a meltblown synthetic protected by a scrim on the air-leaving side. Layering the media provides both a high-efficiency final filter layer that effectively filters fine particulate, and an integral lofted prefilter layer that captures larger particulate. Meltblown synthetic media is stronger than fiberglass, and is non-shedding and water-resistant.
Open Header Design
AAF Flanders’ unique open header design creates a built-in handle that makes carrying and installing the VariCel RF filter easy. As an added safety measure, we roll the edges of the header to eliminate sharp edges that can make handling competitors’ products hazardous.
Specification
|
EN779 |
M6 - F8 |
|
ASHRAE 52.2 |
MERV 11 - 14 |
|
Filter Depth (mm) |
149, 292 |
|
Media Type |
Synthetic |
|
Frame Material |
Galvanised Steej, Plastic ( None Header) |
|
Special Size Available |
Yes |
|
Antimicrobial Available |
Optional |
|
Header Type (Standard) |
Single None Header (GI), None (Plastic) |
|
Header Type (Optional) |
Double |
|
Recommended Final Resistance |
450 Pa |
|
Max Operating Temperature |
93°C |
Product Information
|
Part Number |
Size (WxHxD)mm |
Header Type |
Rated Airflow (CMH) |
Rated Initial Resistance (Pa) |
|
M6 / MERV 11 |
||||
|
M337-160-319 |
289 x 594 x 292 |
Single |
1,700 |
63 |
|
M337-160-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-060-319 |
289 x 594 x 292 |
None (GI) |
1,700 |
50 |
|
M337-060-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-760-319N |
289 x 594 x 292 |
None (Plastic) |
1,700 |
|
|
M337-760-863N |
594 x 594 x 292 |
3,400 |
||
|
F7 / MERV 13 |
||||
|
M337-180-319 |
289 x 594 x 292 |
Single |
1,700 |
90 |
|
M337-180-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-080-319 |
289 x 594 x 292 |
None (GI) |
1,700 |
74 |
|
M337-080-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-780-319N |
289 x 594 x 292 |
None (Plastic) |
1,700 |
|
|
M337-780-863N |
594 x 594 x 292 |
3,400 |
||
|
F8 / MERV 14 |
||||
|
M337-190-319 |
289 x 594 x 292 |
Single |
1,700 |
140 |
|
M337-190-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-090-319 |
289 x 594 x 292 |
None (GI) |
1,700 |
103 |
|
M337-090-863 |
594 x 594 x 292 |
3,400 |
||
|
M337-790-319N |
289 x 594 x 292 |
None (Plastic) |
1,700 |
|
|
M337-790-863N |
594 x 594 x 292 |
3,400 |
||
#RigiFil / VariCel RFRigiFil / VariCel RFRigiFil / VariCel RF
