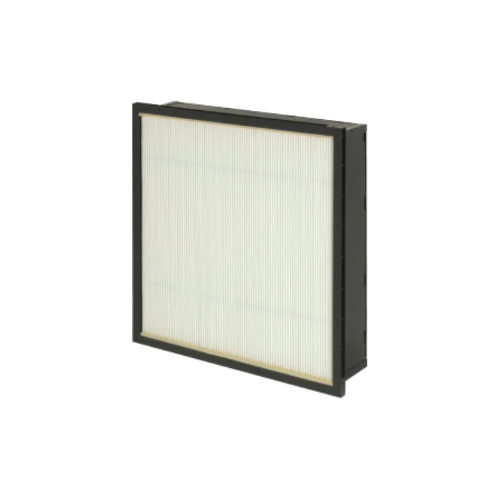

COMPACT FILTER: VariCel M-Pak
Delivers comparable efficiency, pressure drop, and overall performance in half the footprint with a Mini media pack design
149 mm – deep filter with the same media area as 292 mm – deep filter
Space-saving design – reduces storage and handling cost
Sturdy high impact polystyrene cell sides enclose a fixed media pack
Fully incinerable
MERV 13 and higher meet LEED Project Certification efficiency requirements
Typical applications
Commercial Buildings
Data Centers
Food and Beverage
Healthcare
Schools and Universities
Benefits & Features
Cost-Saving Design
The smaller footprint of the VariCel M-Pak filter means that less space is required for storage. VariCel M-Pak filters weigh approximately 8 pounds, less than half the weight of 12-inch-deep filters with metal cell sides. That means reduced maintenance costs and time savings, as the VariCel M-Pak filter is easier to handle. Additionally, as a result of its reduced depth, the VariCel M-Pak filter is packed two to a carton, lowering freight costs and reducing the amount of space required for storage. The VariCel M-Pak filter also halves disposal volume and reduces disposal costs. Best of all, there is no performance penalty accompanying these savings. The VariCel M-Pak filter meets, or exceeds, the performance of the 12-inch-deep filters it replaces.
Construction
The header and cell sides of the VariCel M-Pak filter are constructed of high impact polystyrene. The design, which encloses a fixed media pack, creates a rugged filter that resists damage during shipping, handling, and operation. All components of the VariCel M-Pak filter are fully incinerable.
Dual-Density Media
The VariCel M-Pak media pack is constructed with wet-laid fiberglass that is moisture-resistant. The VariCel M-Pak filter can withstand exposure to free moisture in the atmosphere, making it ideal for installation in applications where moisture is an issue. The media is manufactured with two layers of glass fibers, coarser fibers on the air-entering side and finer fibers on the air-leaving side. The media pack is bonded to the cell sides using urethane sealant.
Our dual-density design allows dirt particles to be collected throughout the entire depth of the media pack, utilizing the full filtering potential of the media and maximizing dust holding. Maximizing dust holding capacity extends the life of the filter and minimizes operating costs.
Thermoplastic separators maintain uniform spacing between pleats to allow optimal air flow into, and through, the filter. The separators also ensure a large effective media area to minimize pressure drop and eliminate the need for aluminum separators. Without aluminum separators, risk of damage to the media pack from turbulent or non-laminar airflow is reduced.
Designed to Improve Indoor Air Quality
VariCel M-Pak filters with antimicrobial (MERV 14 and 11 models) are designed specifically to improve Indoor Air Quality (IAQ). Air filters are designed to trap and concentrate particulate air contaminants, including viable fungal and bacterial spores. The presence of antimicrobial in the filter media is intended to preserve the integrity of the media throughout the useful life of the filter. Antimicrobial preservatives are not meant to increase the efficiency of the filter, or to kill microorganisms “on the fly.”
Specification
EN779 | M6 – F9 |
ASHRAE 52.2 | MERV 11 – 15 |
ISO 16890(mm) | ePM10 70%, ePM1 55% – 80% |
Filter Depth (mm) | 149 |
Media Type | Fibreglass |
Frame Material | Plastic |
Separator Style | Hot Melt |
Special Size Available | No |
Antimicrobial Available | Optional |
Header Type | Single header |
Recomm. Final Resistance | 450 Pa |
Max. Operating Temperature | 70˚C |
Air Filtration Certificate | UL 900 |
Product Information
Part Number | Size (WxHxD)mm | Rated Airflow (CMH) | Rated Initial Resistance (Pa) |
M6 / MERV 11 / ePM10 70% |
M335-163-701N | 287 x 592 x 149 | 1,700 | 88 |
M335-163-708N | 592 x 592 x 149 | 3,400 |
F7 / MERV 13 / ePM1 55% |
M335-183-701N | 287 x 592 x 149 | 1,700 | 115 |
M335-183-708N | 592 x 592 x 149 | 3,400 |
F8 / MERV 14 / ePM1 70% |
M335-193-701N | 287 x 592 x 149 | 1,700 | 145 |
M335-193-708N | 592 x 592 x 149 | 3,400 |
F9 / MERV 15 / ePM1 80% |
M335-103-701N | 287 x 592 x 149 | 1,700 | 195 |
M335-103-708N | 592 x 592 x 149 | 3,400 |
