VariSorb HC

Mã sản phẩm: (Đang cập nhật...)

Thương hiệu: AAF

Liên hệ

Đang cập nhật

Khuyến mại - Ưu đãi

Zalo tư vấn & báo giá: 0971.344.344 Sao chép mã

Điện thoại tư vấn & báo giá Miền Nam: 0827.077.078 Sao chép mã

Điện thoại tư vấn & báo giá Miền Bắc: 0829.077.078 Sao chép mã

Gọi ngay 0971.344.344 để được giải đáp mọi thắc mắc

Hoàn Tiền 100%

Trường hợp hàng giá

Được kiểm tra hàng

Mở hộp khi nhận hàng

Đổi trả hàng miễn phí

Trong 30 ngày sau khi nhận

Thông tin chi tiết

*Filter Depth (mm):304
*Media Type:Carbon, Chemical, Blended
*Frame Material:Plastic
*Special Size Available:No
*Header Type (Standard):Single Header
*Recommended Final Resistance:375 Pa
*Max Operating Temperature:51°C
*CTC:≥ 60 wt. %
*Target Gas:VOC, Acid, Base

Thông tin sản phẩm
Liên hệ mua hàng

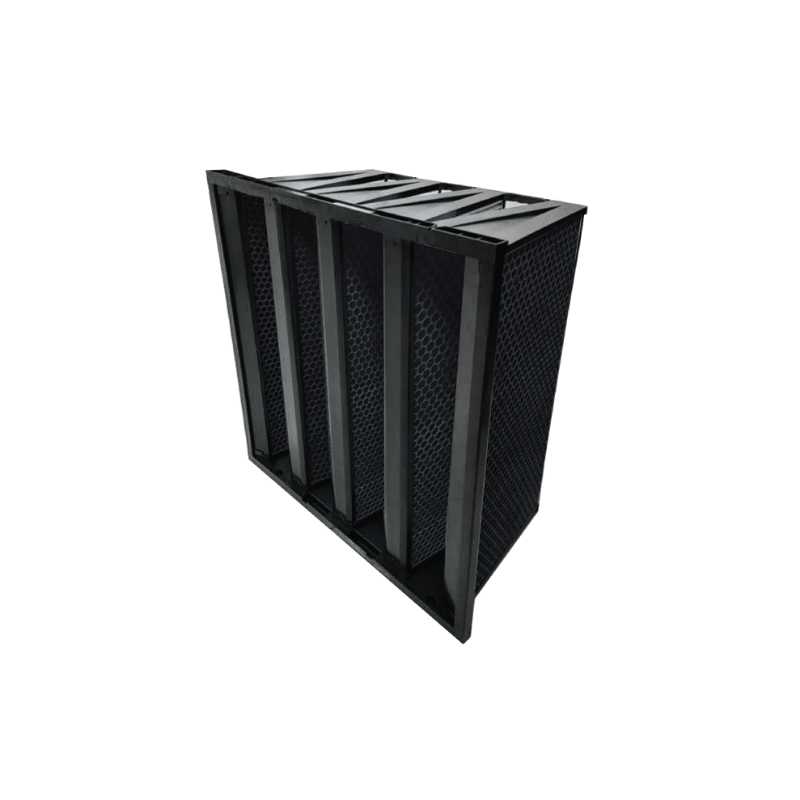

FILTER: VariSorb HC

High chemical media content
Low resistance V-bank design
Corrugated honeycomb structure with retaining fine mesh scrim
Corrosion-free, non-metal construction
Available with SAAFCarb, SAAFOxidant, or SAAFBlend GP (50/50 Blend)
Fully incinerable

Typical applications

Airports
Healthcare
Industrial plant offices and laboratories
Microelectronics
Commercial buildings

Benefits & Features

Improve Indoor Air Quality and Odor Removal

The VariSorb HC filter is designed for the effective removal of common indoor and outdoor gaseous contaminants at high airflows, to help mitigate Indoor Air Quality (IAQ) problems. The VariSorb HC filter is suitable for retrofitting into existing HVAC systems for specification in new construction, and can be used in equipment designed for 12” depth, single header filters.

Construction

VariSorb HC filters consist of filter elements assembled in a V-bank configuration in High Impact Polystyrene (HIPS) end caps, and Acrylonitrile Butadiene Styrene (ABS) profiles. The header and cell sides provide a sturdy construction that resists damage during shipping, handling, and operation. The absence of metal components makes VariSorb HC filter fully incinerable.

Media

Choose from SAAFCarb media of activated carbon, SAAFOxidant media composed of a combination of activated alumina impregnated with potassium permanganate, or a blend of both. The media is contained in panels with a honeycomb structure. A fine mesh scrim on both sides of the panel retains the media granules in the honeycomb. SAAFCarb media effectively removes Volatile Organic Compounds (VOCs), jet and diesel fumes, and hydrocarbons. SAAFOxidant media effectively removes hydrogen sulfide, sulfur oxides, formaldehyde, and nitric oxides. For general purpose air quality control, SAAFBlend GP (50/50) media is recommended.

Specifications

Filter Depth (mm)	304
Media Type	Carbon, Chemical, Blended
Frame Material	Plastic
Special Size Available	No
Header Type (Standard)	Single Header
Recommended Final Resistance	375 Pa
Max Operating Temperature	51°C
CTC	≥ 60 wt. %
Target Gas	VOC, Acid, Base

Product Information

Part Number	Size mm (W x H x D)	Media Weight (kg / lb)	Media Type
M411-000-001N	592 x 592 x 304	7.6 / 16.8	SAAFCarb
M411-100-001N	592 x 592 x 304	13.6 / 30.0	SAAFOxidant
M411-200-001N	592 x 592 x 304	11.0 / 24.2	SAAFBlend GP
M411-300-001N	592 x 592 x 304	9.1 / 20.0	SAAFCarb MA
M411-400-001N	592 x 592 x 304	9.1 / 20.0	SAAFCarb MB
M411-000-003N	592 x 287 x 304	4.0 / 8.8	SAAFCarb
M411-100-003N	592 x 287 x 304	5.2 / 11.4	SAAFOxidant
M411-200-003N	592 x 287 x 304	4.0 / 8.8	SAAFBlend GP
M411-300-003N	592 x 287 x 304	5.7 / 12.6	SAAFCarb MA
M411-400-003N	592 x 287 x 304	5.7 / 12.6	SAAFCarb MB

========================================================================================
