AstroPure 1700/3400 I CÔNG TY CỔ PHẦN KỸ THUẬT VIỆT PHÁT

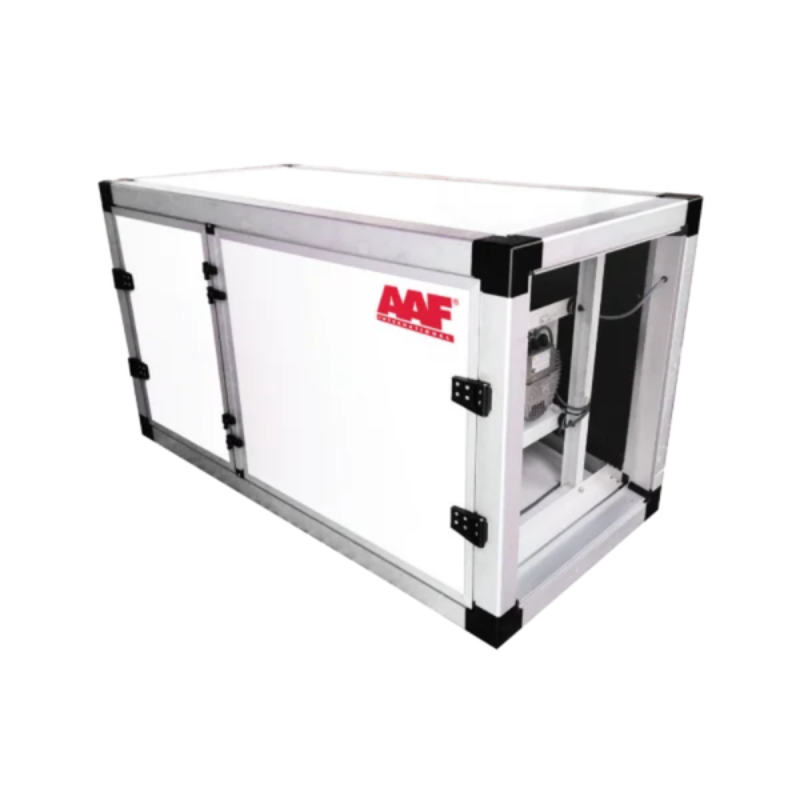

AIR PURIFICATION SYSTEM: AstroPure 1700/3400
100% individually leak-free tested
H14 True HEPA Filter
-
Effectively removes up to 99.995% of ultra fine particles
Ultraviolet Germicidal Irradiation (UVGI)
-
UVGI is the use of UVC energy to inactivate viral, bacterial, and fungal organisms
More Features
-
Designed to equip with 3 stages of high-performance filters which can effectively remove harmful pollutants
-
Equipped with safety limit switch to protect the operators
-
Constructed with insulated wall panel for better noise reduction and prevention of condensation
-
Safe and easy to maintain
-
Model equipped with UVC lamp available
-
Conveniently safe IAQ monitoring and control
Typical applications
-
Airport
-
Commercial Buildings
-
Healthcare
-
Home
Benefits & Features AstroPure 1700/3400
Contaminated Indoor Air
AstroPure 3400 is designed to install with the combination of pre, secondary, HEPA filter and fan motor within a self contained stand-alone housing.
Economical and Easy Installation
No messy work modifications are required. The unit positions itself as supplementary to the existing facility and the only requirement for this unit is the incoming power supply – 1ph, 50/60Hz, 230VAC.
Intensify Germicidal Protection
UVC lamps (short wave: 100 – 280 nm, primarily 254 nm) are designed to kill or deactivate microorganisms such as viruses, bacteria, and fungal spores and fragments that are airborne or growing on the surface. Air purifier typical Airstream Disinfection application has the potential to kill the viability of vegetative bacteria, mold, and viruses. Surface Disinfection to prevent or limit the growth of vegetative bacteria and molds on moist surfaces.
Versatile HEPA Filtration System
Conveniently convert any room into a negative pressure room achieving 12 ACH under 5,000 ft³. The AstroPure® 1700 is specially designed for healthcare facilities that require a high level of cleanliness preventing airborne transmission. It can also be used as a recirculating unit in outpatient clinics, waiting areas, and other common areas where the health condition of occupants is unknown.
Integrity Tested
AstroPure 3400 is 100% leak-free tested to reduce the risk of airborne infection. Each unit is individually tested to meet the customer’s expectations for performance, quality, and durability over the life of the product.
Specifications
|
Air Flow |
1,700, 3,400CMH |
|
Air Outlet (H x W) |
727 x 614mm |
|
Controller |
AstroPlus Control, AstroPlus Control Pro |
|
Housing Material |
Double Wall Panel Construction |
|
Housing Finishing |
White Powder Coated |
|
Filter Configuration (Standard) |
AmAir 300E G4 + Varicel II F7 + MEGAcel eFRM III H14 |
|
Filter Configuration (Optional) |
AmAir/C, MEGAcel III ePTFE H14, AstroCel III H14 |
|
Power Supply |
1ph/50~60Hz/220~240VAC |
|
Applicable Coverage Area |
87 – 174, 181 – 317 m² |
|
Sound Pressure Level |
57 – 62 dBA |
|
UV Wavelength |
254 mm |
Equipment Information
|
Part Number |
Size mm (L x W x H) |
Controller |
UV |
Current (A) |
Weight (kg) |
|
AstroPure 3400 |
|||||
|
M6211-24310-D000P |
1577 x 771 x 878 |
AstroPlus Control |
No |
0.47 |
121 |
|
M6211-24312-D000P |
Yes |
0.67 |
122 |
||
|
M6211-24310-S000P |
AstroPlus Control Pro |
No |
0.53 |
121 |
|
|
M6211-24312-S000P |
Yes |
0.73 |
122 |
||
Filter Information
|
Part Number |
Model |
Size mm (W x H x D) |
Filter Class |
Purpose |
|
M140-202-863 |
AmAir 300E |
594 x 594 x 44 |
G4 |
Removes coarse particles |
|
M332-410-008 |
VariCel II 80 - 85% |
594 x 594 x 95 |
F7 |
Removes fine particles |
|
M451-205-005 |
MEGAcel III eFRM |
610 x 610 x 292 |
H14 |
Removes finer particles and pathogens |
