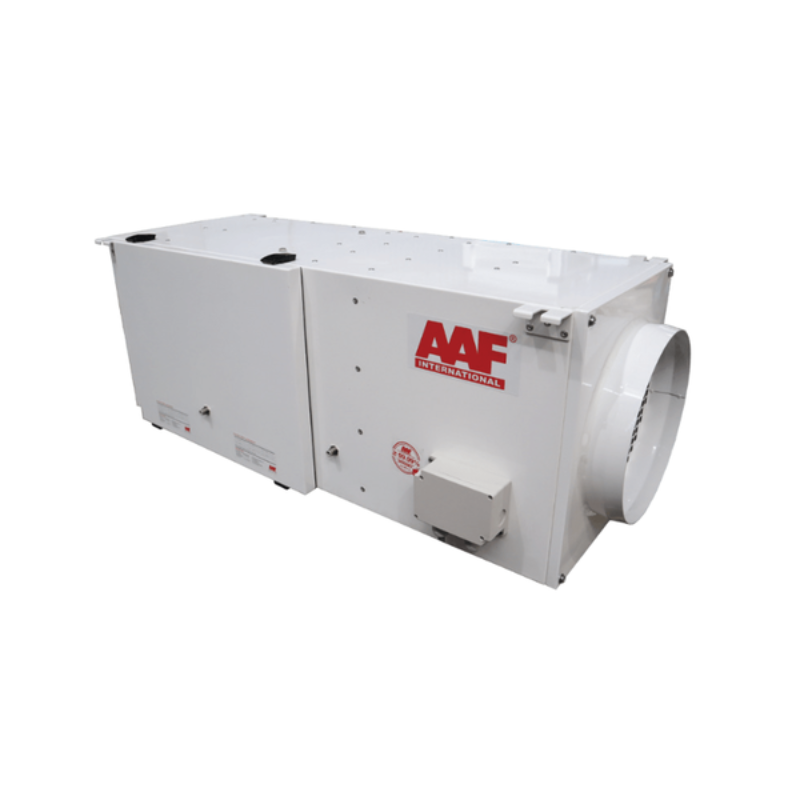

AIR PURIFICATION SYSTEM: AstroPure VFN1200A
100% individually leak-free tested
H14 True HEPA Filter
-
Effectively removes up to 99.995% of ultra fine particles
Ultraviolet Germicidal Irradiation (UVGI)
-
UVGI is the use of UVC energy to inactivate viral, bacterial, and fungal organisms
More Features
-
Ideally designed to improve the air quality of the recirculation air by reducing PM2.5, bacteria, and virus
-
Designed with the combination of two-stage filtration, supplied as a total clean air solutions, removing airborne particulate contaminants
-
Designed with a variable speed controller to regulate the airflow
-
Self-contained system for quick installation (plug and play)
-
Easy operation and maintenance
-
Superior protection is provided by the installed filters and the optional UVC lamp
-
Conveniently safe IAQ monitoring and control
Typical applications
-
Airport
-
Commercial Buildings
-
Healthcare
Benefits & Features
Designed for Filtering the Contaminated Indoor Air
AstroPure VFN1200A is designed to install with the combination of F7 and H14 HEPA filter stages within a self-contained mobile stand-alone unit.
Economical and Easy Installation
No messy work modifications on any existing utility are required. Simply place the unit into the desired position, install the air filters and dispose when no longer effective.
Intensified UV-C Light Protection
UVC lamp (short wave 254 nm) is installed in AstroPure VFN1200A, to provide additional protection against airborne infection such as viruses, bacteria and fungal spores.
Integrity Tested
AstroPure VFN1200A is 100% leak-free tested to reduce the risk of airborne infection. Each unit is individually tested to meet the customer’s expectations for performance, quality, and durability over the life span of the product.
Air Quality Indicator
Reliable real-time measurement of air pollution and environmental conditions. Measuring particles suspended in the air in the range of PM1, PM2.5, and PM10 and indicating the particle concentration level. The built-in sensors also includes the current ambient conditions like humidity and temperature.
Specifications
|
Airflow |
420 – 1,250 CMH |
400 – 1,220 CMH |
|
Air Outlet |
Perforated Air Grille |
Perforated Air Grille |
|
Housing Material |
Galvanised Steel |
Galvanised Steel |
|
Housing Finishing |
White Powder Coated |
White Powder Coated |
|
Filter Configuration |
Varicel II F7 + MEGAcel III eFRM H14 |
Varicel II F7 + MEGAcel III eFRM H14 |
|
Power Supply |
1ph/50~60Hz/220~240VAC |
1ph/50~60Hz/220~240VAC |
|
Applicable Coverage Area |
69 – 417 m² |
68 – 407 m2² |
|
Sound Pressure Level |
40 – 65 dBA |
40 – 65 dBA |
|
UV Wavelength |
254 nm |
254 nm |
Equipment Information
|
Part Number |
Size mm (H x W x D) |
Controller |
UV |
Current (A) |
Weight (kg) |
|
AstroPure VFN1200A Pro |
|||||
|
M655-141230D-210CP |
1230 × 600 × 605 |
AstroPlus Control |
No |
1.18 |
68 |
|
M655-141231D-210CP |
Yes |
1.22 |
70 |
||
|
M655-141230S-010CP |
AstroPlus Control Pro |
No |
1.24 |
68 |
|
|
M655-141231S-010CP |
Yes |
1.28 |
70 |
||
|
AstroPure VFN1200A |
|||||
|
M655-141240D-210CP |
1230 × 600 × 605 |
AstroPlus Control |
No |
1.46 |
68 |
|
M655-141241D-210CP |
Yes |
1.52 |
70 |
||
|
M655-141240S-010CP |
AstroPlus Control Pro |
No |
1.50 |
68 |
|
|
M655-141241S-010CP |
Yes |
1.56 |
70 |
||
Filter Information
|
Part Number |
Model |
Size mm (W x H x D) |
Filter Class |
Purpose |
|
M332-410-0163 |
VariCel II 80 - 85% |
492 x 584 x 95 |
F7 |
Removes fine particles |
|
M451-101-3423L |
MEGAcel III eFRM |
510 x 585 x 292 |
H14 |
Removes finer particles and pathogens |
