Pleated Filter – Efficient and Cost-Effective Air Filtration Solution

In modern HVAC and industrial ventilation systems, pleated filters have become a go-to solution for pre-filtration and fine particle control. Known for their high dust-holding capacity, low resistance, and cost efficiency, pleated filters are widely used in commercial buildings, cleanrooms, manufacturing facilities, and healthcare environments.

In this article, we’ll explore the technical aspects, types, benefits, and applications of pleated filters to help you select the optimal air filtration solution for your facility.

1. What is a Pleated Filter?

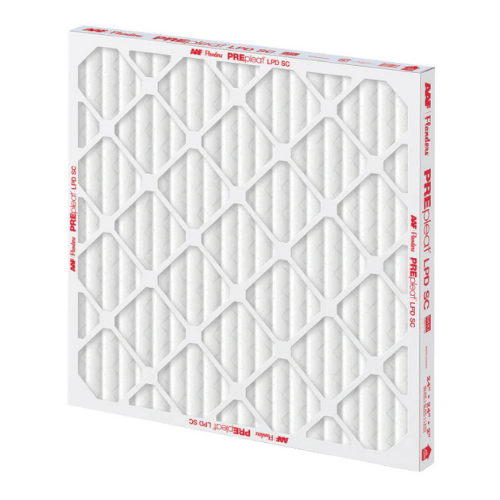

A pleated filter is a type of panel air filter that uses synthetic or fiberglass media, folded into pleats to increase surface area. These filters are used primarily as pre-filters in HVAC systems or as standalone filters for capturing coarse and fine airborne particles like dust, pollen, mold spores, and lint.

Attribute	Value
Filter Type	Disposable panel filter
Efficiency Ratings	G2 to G4 (EN 779), ISO Coarse 60–80%, MERV 6–8
Media Type	Synthetic fibers or fiberglass
Frame Options	Galvanized steel, cardboard, plastic
Lifespan	1–3 months (depending on load and environment)

2. Key Features of Pleated Air Filters

✅ Increased Surface Area
The pleated design increases the effective filtration area, allowing the filter to capture more dust and particles without increasing resistance.

✅ Low Initial Pressure Drop
Typically operates with 30–60 Pa initial resistance, making it energy-efficient and suitable for systems with sensitive airflow requirements.

✅ High Dust-Holding Capacity
Extended surface area and depth loading ensure a longer service life compared to flat-panel filters.

✅ Easy Installation & Replacement
Available in standard and custom sizes, fits directly into AHUs, fan coil units, and filter banks.

✅ Eco-Friendly Options
Some pleated filters are made from recyclable materials, free from glass fibers.

3. Types of Pleated Filters by Application

Filter Type	Classification	Application
G4 Pleated Filter	ISO Coarse ≥90%	Pre-filter for HVAC, hospitals, offices
MERV 8 Pleated Filter	ASHRAE 52.2	Residential & light commercial use
Carbon Pleated Filter	G4 + Activated Carbon	Odor removal in restrooms, kitchens
Washable Pleated Filter	Reusable, synthetic media	Cleanable filters for industrial reuse
High Airflow Pleated Filter	MERV 6–8	Large air-handling systems, AHU in malls/factories

4. Technical Specifications

Parameter	Typical Range
Dimensions	595x595x48 mm (Standard) or custom
Thickness	1", 2", 4" (inches) or 22 mm / 48 mm / 96 mm
Efficiency	G2–G4 / MERV 6–8 / ISO Coarse 60–80%
Initial Resistance	30–60 Pa
Final Resistance	200–250 Pa (recommended)
Max Temperature	Up to 70°C
Frame	Steel / Cardboard / ABS Plastic
Recommended Lifespan	2–3 months (standard conditions)

5. Applications of Pleated Filters

🏢 Commercial HVAC Systems

Office buildings, hotels, shopping malls
First-stage protection before fine or HEPA filters

🏭 Industrial Facilities

Factories, warehouses, paint booths
Dust control for machinery protection

🏥 Healthcare & Hospitals

Pre-filtration in AHU supplying clean zones
Reduces bio-load before HEPA filters

🧪 Cleanrooms & Laboratories

ISO Class 8–9 environments
Used in combination with HEPA and ULPA

🏠 Residential Buildings

MERV 8 pleated filters for central air systems
Improves indoor air quality and reduces allergens

6. Benefits Over Flat Panel and Fiberglass Filters

Feature	Pleated Filter	Flat Panel / Fiberglass Filter
Surface Area	✅ 3–5x more	❌ Limited
Dust Capacity	✅ Higher	❌ Lower
Efficiency	✅ MERV 6–8	❌ MERV 2–4
Energy Usage	✅ Efficient	❌ Less efficient
Durability	✅ Strong frame	❌ Easily collapses under load
Replacement Frequency	✅ 2–3 months	❌ 1–2 months

7. Why Choose Pleated Filters from AAF / VIETPHAT?

AAF International is a world leader in air filtration, offering pleated filters that:

Meet ISO 16890, EN 779, and ASHRAE 52.2 standards
Deliver consistent airflow and particle retention
Fit seamlessly into multi-stage HVAC systems
Offer certified filtration performance and eco-friendly disposal

VIETPHAT ENGINEERING JSC, official AAF distributor in Vietnam, provides:

✔️ Genuine pleated filters in bulk or custom sizes
✔️ CO, CQ, MSDS documents
✔️ On-site delivery and AHU compatibility check
✔️ Technical consulting for cleanrooms and industrial clients

8. Where to Buy Pleated Filters in Vietnam?

📍 VIETPHAT ENGINEERING JSC

☎️ Hotline / Zalo: 0971.344.344
📱 24/7 Support: 0827.077.078 – 0829.077.078
📧 Email: sales@vietphat.com
🌐 Website: www.vietphat.com
📦 Nationwide delivery | 🧪 Free consultation | 📊 Filter audit available

🔚 Conclusion

Pleated filters are an essential component in any efficient air filtration strategy. With their reliable dust control, extended life, and low energy cost, they are ideal for diverse sectors including HVAC, cleanrooms, industrial production, and healthcare.

Partner with VIETPHAT and AAF International to access high-quality pleated air filters tailored to your specific needs — whether you’re outfitting a hospital, factory, or office building.
